In the world of fluid systems—whether industrial pipelines, residential plumbing, or oil & gas operations—NPT pipe (National Pipe Tapered) is the unsung hero of leak-free connections. Its tapered threads and self-sealing design have made it a global standard for over a century, but using it correctly requires more than just screwing parts together. From selecting the right fittings to mastering installation techniques, following NPT pipe guidelines ensures reliability, safety, and cost savings. Below, we’ll dive into everything you need to know: what NPT pipe is, key standards, step-by-step installation, product types, and common pitfalls to avoid.
What Is NPT Pipe?
NPT pipe refers to pipes and fittings with tapered threads designed to create a tight, metal-to-metal seal when joined. Unlike straight threads (e.g., BSPP), NPT threads narrow along their length at a rate of 0.75 inches per foot (a 1°47′ taper), causing the threads to compress and “lock” together as they’re tightened. This interference, often enhanced with sealant (Teflon tape or pipe dope), eliminates gaps and prevents leaks—even in high-pressure systems.
Example: A 2-inch NPT pipe fitting, when screwed into a matching valve, will have its threads dig into the valve’s threads, creating a seal that holds under 1,000+ psi in industrial settings.
NPT Pipe Standards: The Basics
NPT pipe follows strict specifications set by ANSI/ASME B1.20.1, ensuring consistency across manufacturers. Key standards include:
- Thread Angle: 60°, with flat crests and roots for durability.
- Taper Rate: 0.75 inches per foot (critical for proper sealing—deviations cause leaks).
- Size Range: 1/8-inch (small instrumentation lines) to 24-inch (large industrial pipelines).
- Pressure Ratings: Varies by material and wall thickness (e.g., Schedule 80 NPT pipe handles higher pressure than Schedule 40).
Step-by-Step NPT Pipe Installation Guidelines
Installing NPT pipe incorrectly is the #1 cause of leaks. Follow these steps for foolproof results:
1. Prep the Threads
- Clean Thoroughly: Use a wire brush or rag to remove dirt, rust, or debris from male and female threads. Even tiny particles can prevent proper seating.
- Inspect for Damage: Check for bent, cracked, or cross-threaded sections. Damaged threads will never seal—replace the part immediately.
2. Choose the Right Sealant
NPT threads rarely seal dry. Pick a sealant based on your system:
- Teflon Tape (PTFE Tape): Ideal for water, air, or non-corrosive fluids. Wrap 2–3 layers clockwise around male threads (counterclockwise wrapping unravels when tightening).
- Pipe Dope (Thread Sealant): Better for oil, gas, or high-temperature systems (e.g., steam lines). Apply a thin, even layer to male threads, avoiding the first thread to prevent sealant from clogging valves.
- Anaerobic Sealant: For permanent, high-pressure connections (e.g., hydraulic lines). Cures in the absence of air, forming a rigid, leak-proof bond.
3. Tighten with Care
- Hand-Tighten First: Screw the fitting onto the pipe by hand until snug. This aligns the threads and prevents cross-threading (a common rookie mistake).
-
Tool-Tighten to Spec: Use a pipe wrench or adjustable wrench to tighten further. As a general rule:
- Small sizes (1/4–1/2 inch NPT): 1–1.5 extra turns after hand-tight.
- Medium sizes (3/4–2 inch NPT): 2–3 extra turns.
- Large sizes (3+ inches): Refer to manufacturer torque charts—over-tightening cracks fittings!
4. Test for Leaks
After installation, pressurize the system gradually and check for leaks:
- Use soapy water on joints—bubbles indicate leaks.
- For critical systems (e.g., gas lines), use a pressure gauge to monitor for drops over 30 minutes.
- If leaks occur, disassemble, clean threads, reapply sealant, and retighten—never force extra turns to “fix” a leak.
NPT Pipe Product Types: Fittings, Materials & More
NPT pipe comes in a wide range of products to suit every application. Here are the most essential types:

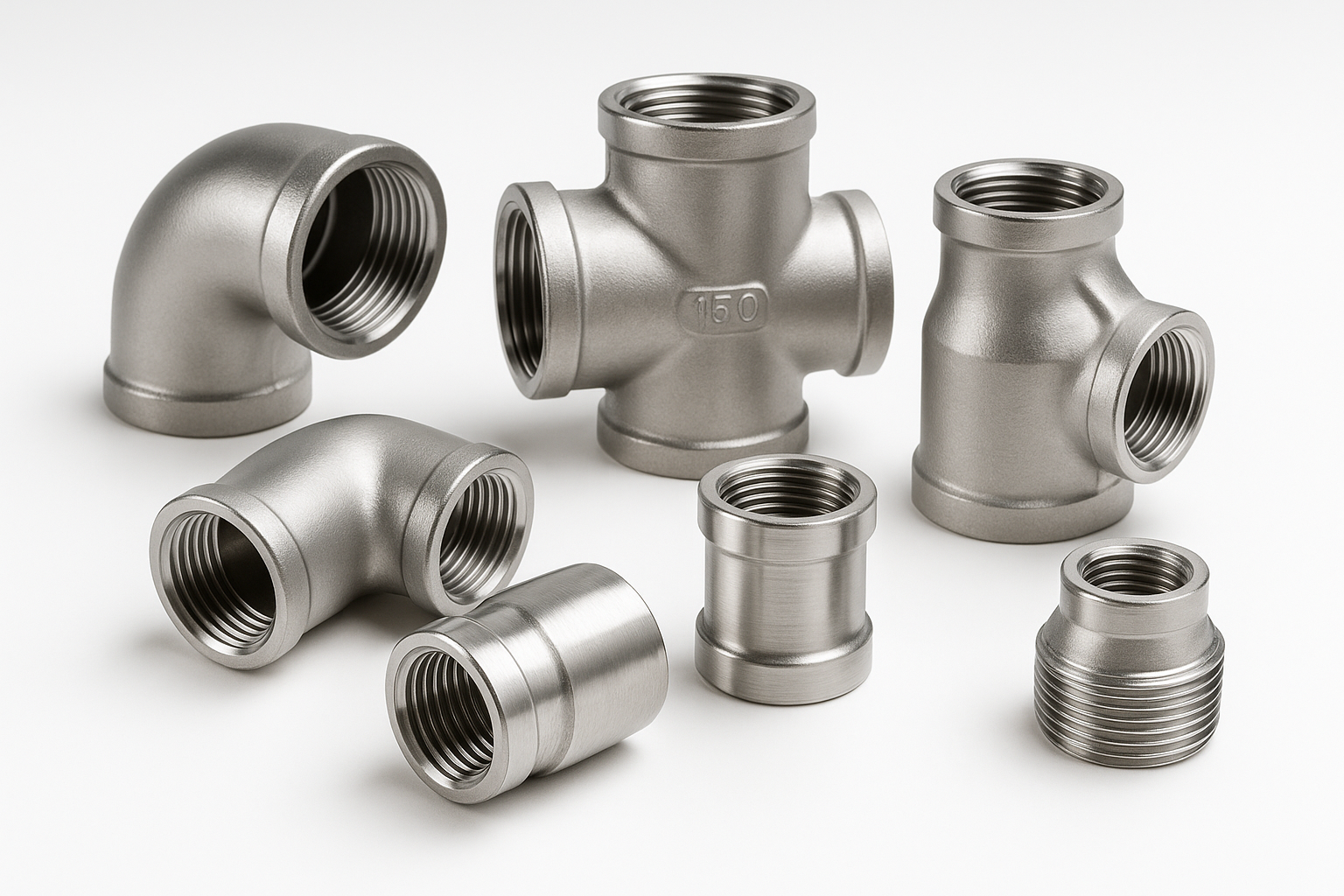

1. NPT Pipe Fittings
These are the building blocks of any NPT system:
- NPT Elbow: 45° or 90° bends for changing direction (e.g., a 90° NPT elbow in a tight corner under a sink).
- NPT Tee: Three-way fitting for branching lines (e.g., splitting a water line to a fridge and dishwasher).
- NPT Coupling: Short, straight fitting for joining two pipes of the same size (e.g., extending a 1-inch NPT water line).
- NPT Reducer: Connects pipes of different diameters (e.g., a 2-inch to 1-inch NPT reducer in a brewery’s glycol system).
- NPT Cap/Plug: Seals pipe ends (cap for female threads, plug for male threads—vital for unused ports in manifolds).
2. NPT Pipe by Material
Material choice depends on fluid type, pressure, and environment:
-
Stainless Steel NPT Pipe:
- 304 Stainless Steel: Budget-friendly for water, mild chemicals, or dry air (common in HVAC systems).
- 316L Stainless Steel: Corrosion-resistant (thanks to molybdenum) for saltwater, acids, or sanitary use (e.g., pharmaceutical API transfer lines).
- Carbon Steel NPT Pipe: Strong and affordable for industrial systems (oil pipelines, steam lines) where corrosion isn’t a concern.
- Brass NPT Pipe: Easy to machine, ideal for low-pressure plumbing (residential gas lines, air compressors).
- Sanitary NPT Pipe: Electropolished 316L stainless steel with smooth threads and crevice-free design—critical for food, beverage, and biotech (meets FDA and 3A standards).
3. Specialty NPT Products
For unique needs, these niche products shine:
- NPT Nipple: A short, threaded pipe section (e.g., a 6-inch NPT nipple connecting a valve to a tee in a chemical reactor).
- NPT Swage Nipple: A seamless reducer (e.g., 3-inch to 2-inch NPT) for high-pressure oil pipelines.
- NPT Flange Adapter: Converts NPT threads to flanged connections (e.g., attaching an NPT valve to a flanged tank for easy removal during cleaning).
Where NPT Pipe Excels: Key Applications
NPT pipe’s versatility makes it indispensable across industries:
- Industrial: Oil & gas pipelines, chemical processing, wastewater treatment, and manufacturing (reliable under high pressure and temperature swings).
- Plumbing & Construction: Residential water lines, heating systems, and gas lines (easy to install and widely available at hardware stores).
- Sanitary: Food processing (beer, dairy, juice), pharmaceuticals (injectable drugs), and biotech (cell culture media transfer)—sanitary NPT pipe ensures no bacterial traps.
Common NPT Pipe Mistakes to Avoid
Even pros make these errors—don’t let them ruin your project:
- Mixing Thread Types: NPT (tapered) vs. BSPT (British tapered) vs. NPS (straight) threads are not interchangeable. Always check for “NPT” stamped on fittings.
- Over-Tightening: Excessive force strips threads or cracks brittle materials (e.g., brass fittings). If the pipe twists in the fitting, you’ve gone too far!
- Using the Wrong Sealant: Teflon tape degrades in oil-based systems; pipe dope works better for hydrocarbons.
- Ignoring Corrosion: Carbon steel in coastal areas will rust—upgrade to 316L stainless steel to avoid leaks and costly replacements.
Final Thoughts
NPT pipe’s tapered threads and self-sealing design make it a staple in fluid systems, but its reliability hinges on following guidelines. From choosing the right sealant to selecting 316L stainless steel for corrosive environments, every step impacts performance. By mastering installation, avoiding common mistakes, and leveraging the right product types—whether a sanitary NPT elbow or a carbon steel nipple—you’ll ensure leak-free, long-lasting connections.
