When the process engineer at a wafer fabrication plant selected the valves for an ultrapure water distribution system, the answer was not just "PTFE" or "stainless steel." The water going through these valves would be coming in contact with silicon wafers that cost tens of thousands of dollars. If only one metal particle comes out of a valve body (such as a couple of parts of iron, or a small amount of chromium), the gate oxide could be ruined and the entire batch destroyed. The valves in semiconductor applications are not just industrial valves with different names. They belong to a special class of fluids control devices designed to prevent particle generation, reduce ionic contamination, withstand aggressive chemicals, and ensure reliable performance for many cycles even in the toughest cleanroom conditions.

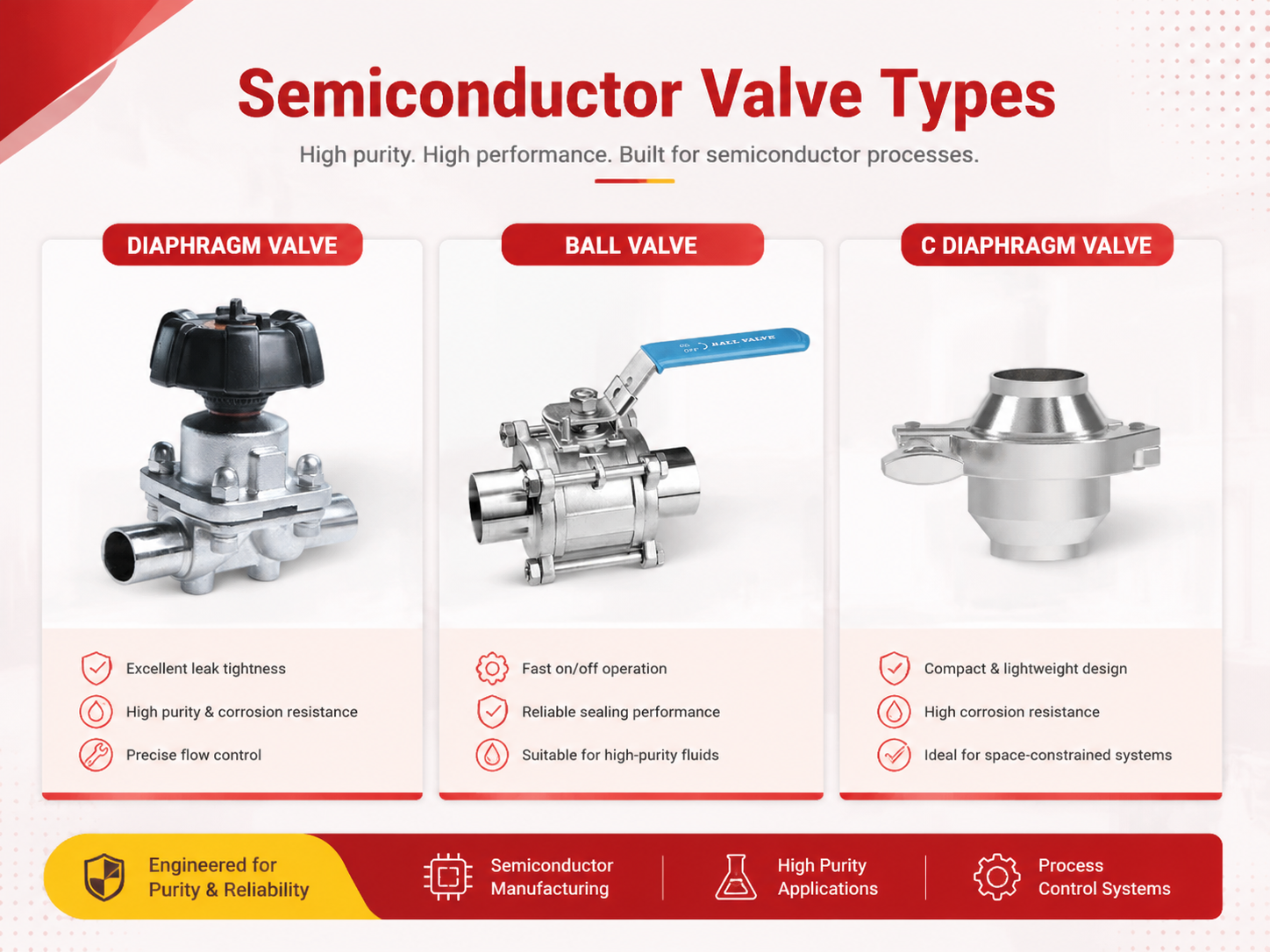

Summary: In semiconductor production, a number of valves can be used. The three common types of valves are high-purity diaphragm valves, high-purity bellows valves, and high-purity ball valves.
Why Semiconductor Valves Are Different from Standard Industrial or Sanitary Valves
An industrial valve is built to withstand pressure and regulate flow. There is another type of valve called a sanitary valve such as those produced by Eagle Fittings for food, dairy and pharmaceutical sectors even though it has its own sets of requirements that are cleanable, drainable, and FDA-compliant; which means that this type of valve must be portable, with no crevice for food (or other goods) buildup but also be resistant to the acidic solutions utilized in hygienic processing. Besides fulfilling what was just mentioned, a semiconductor valve brings an even more advanced set of requirements. In the semiconductor industry the bits of contamination must be controlled to a level of billions and trillions of parts. In simple terms, while the valve used in the pharmaceutical industry is made of 316L steel, has electropolished surface finish of 20 µ-inch Ra, and includes EPDM sealing; it does not mean that it would occur in a semiconductor ultrapure water system where ionic contamination is measured in parts per trillion while particle shedding is expressed in particles per liter and is equal to 0.05 µm. The materials and the finishes of semiconductor valves, as well as how they are assembled and tested - all of that is determined by contamination requirements set by SEMI standards.
Eagle Fittings works with 316L stainless steel for hygienic process industries. In this case, the product-contact finish is a 20-32µ-inch Ra finish that is achieved through electropolishing. For the semiconductor industry, 316L must be processed by VIM/VAR to remove non-metallic contaminants, the surface finish must be achieved in 5-10µ-inch Ra or better, and elastomers in the valves must be replaced by high purity PTFE or PFA to eliminate contaminated materials and particles that could be generated by a safe FDA EPDM seal. For a deeper understanding of the foundation on which semiconductor‑grade materials are built, our guide on 304 vs 316 stainless steel explains the metallurgical differences that make controlled‑chemistry 316L the starting point for any high‑purity application.
The Primary Types of Semiconductor Valves
High‑Purity Diaphragm Valves
A high-purity diaphragm valve is regarded as the workhorse of fluid handling in semiconductor operations. This valve has a flexible diaphragm, made of PTFE or a PTFE/PFA co-polymer. It provides isolation of the processing liquid from the actuator mechanism and seals against a weir or a straight-through valve body. When the actuator (manual, pneumatic, or motorized type) applies pressure on the diaphragm, the valve closes. When the actuator is released, the diaphragm lifts and fluid flow resumes. The diaphragm is the only element in the fluid flow. All other components, like the actuator or the stem are separated from the fluid. This design solves the problem associated with the stem seal leakage that is a source of contamination in ball or globe valve operation.
This technology allows the valve to work for many cycles without producing any particles from the friction of the stem. The diaphragm valve is widely used in such applications as the delivery of ultrapure water (UPW), bulk chemicals (sulfuric acid, hydrogen peroxide, ammonium hydroxide, etc.), and CMP slurries. The diaphragm valve has two main designs – bellows and straight-through body. The type of the actuator can be either manual, pneumatic, or electric with position feedback. The usual price range of a standard one-inch diaphragm valve for semiconductor application is between $500 and $1,500 depending on the type of the body and diaphragm material. Major manufacturers of this type of valves are GEMÜ, Swagelok, and Entegris with a variety of diaphragm valve models designed to meet SEMI standards concerning particles’ generation, outgassing, and ionic contamination.
High‑Purity Bellows Valves
The welded metal bellows in a high-purity bellows valve functions as a stem seal to the surrounding atmosphere. The metal bellows is made from 316L stainless steel or Hastelloy. The welded bellows is connected to the valve body on one end and the stem on the other end. The vertical motion of the stem makes the bellows compress and expand, hence ensuring no atmosphere enters the processed fluid and no part of the processed fluid escapes to the atmosphere.
Contrary to the packed-gland valves which use compressible elastomers of graphite for sealing around the stem and inevitably shed dust during the stem movement, bellows valves operate with no leakage or particles caused by the sealing of the stem. Bellows valves are commonly used in handling high-purity gaseous substances such as bulk nitrogen, argon, and helium as well as specialized gases used in processes such as deposition, etching, and doping. Although they cost more than diaphragm valves of the same size and have limited cycle life due to the fact that the bellows deteriorates through time, they are the preferred valve type in gas supply applications.
High‑Purity Ball Valves
The high‑purity ball valve finds its application in semiconductor systems in instances where instant quarter-turn shut‑off is imperative and where the valve is not situated in the direct product stream of the most contamination-sensitive processes. The ball and seats in this application are made of PTFE or PFA as required; the valve body has to be constructed from 316L stainless steel with an electropolished inner surface; and the stem seal is typically PTFE packing or live-loaded PTFE chevron seal.
These valves are suitable for installation in non-critical UPW return lines, cooling water, compressed air, and bulk gas isolation applications. High‑purity ball valves cannot be used in the most contamination-sensitive chemical delivery processes since the stem seal can generate contamination particles. The cost for a 1-inch high‑purity ball valve is around $150–$400; a pneumatic actuator version will cost anything from $400 to $1,000. In the sanitary process industries served by Eagle Fittings, the sanitary valve with three-piece design and Tri-Clamp connection performs the same function with a comparable drainability and ease of disassembly to that needed in the food and pharmaceutical industries.
High‑Purity Check Valves
A high-purity check valve permits unidirectional flow while blocking back flow that may contaminate upstream devices or areas of a chemical feed system. There are various applications for check valves in semiconductor technologies, such as: in the discharge from chemical transfer pumps, in gas lines to prevent back flow, and in UPW return lines. The sealing mechanism might be a spring-loaded PTFE or PFA poppet or a PTFE ball with very low cracking pressure – down to 0.5 psi. It is generally manufactured from 316L stainless steel or possibly from high purity PTFE or PFA, depending on the chemical environment in which the valve is used. For semiconductor applications, the most important performance criterion is its ability to form bubble-tight seals with no reverse leakage effect and ensure no particle generation at opening and closing conditions. A 1‑inch high‑purity PTFE check valve costs $200 to $600. Our guide on how sanitary check valves work explains the operating principles that are common to both hygienic and high‑purity check valves.
Pressure Regulators
A high purity pressure regulator takes in high varying inlet pressure and produces low stable outlet pressure. Such devices are a must-have for every gas line used in semiconductor manufacturing that is responsible for delivering bulk nitrogen, processing argon as well as etching and deposition gases, and for chemical lines where pressure control is crucial. Semiconductor-grade regulator uses metal diaphragms made from 316L or Hastelloy or a PTFE diaphragm, has an electropolished interior, which is manufactured and tested in a cleanroom environment and packaged in a way protecting surface cleanliness until installation. The price of a single-stage high purity regulator used for semiconductor gas is in the range of $300 to $800, while a dual-stage regulator costs around $600 to $1,500.
Materials of Construction: What a Semiconductor Valve Is Made Of
When choosing the wetted components of a semiconductor valve, one must consider their compatibility with fluids, as well as their potential for contamination through particle generation and leaching of metals. Therefore, 316L stainless steel is the standard material for valve construction due to its lowest inclusion levels and electropolish surface finish. It is a steel alloy produced using VIM/VAR remelting process assuring least possible inclusions. It is also enhanced with chromium oxide for passive layer stability and has a smooth surface finish. When in corrosive environment, Gaskets, seats, and end connections for valves are made of PTFE, PFA and modified PTFE. In applications where PTFE cannot be applied, valve body components can be made of PTFE or PFA, so fluid will not contact metal components at all. While common elastomers such as EPDM and Viton are usually used in hygienic applications, they cannot be considered in semiconductor industry since these materials are high extractable and produce particles due to aging and bending.
Frequently Asked Questions
What is the difference between a semiconductor valve and a sanitary valve?
Sanitary valves are intended for food, dairy, or pharmaceutical processing, where the product is consumed or injected. Hence, they must be CIP-cleanable, drainable, and conformant to FDA, with surface finish of 20 to 32 µ-inch Ra. On the contrary, semiconductor valves are required for ultra-pure water, chemicals, and gases used in contact with silicon wafers. Therefore, semiconductor valves must meet tighter contamination limits such as surface finish of 5 to 10 µ-inch Ra, VIM/VAR 316L stainless steel, PTFE/PFA seals instead of elastomer seals, and clean room assembly. A sanitary valve cannot work in a semiconductor application, while a semiconductor valve is over-spec for food or pharmaceutical processes.
What is the most common valve type in semiconductor UPW systems?
The diaphragm valve of high purity is the major valve type being used in ultrapure water systems. It provides zero stem leakage, millions of cycles while creating very few particles, and isolates the fluid from the actuator. Both straightthrough and weir body configurations can be used based on the flow parameters and available space.
Why are bellows valves used in semiconductor gas delivery?
Bellows valves offer a full hermetic welded valve supply that prevents air contamination from entering the gas circuit and prevents process gas from leaking into the atmosphere. There are no particles produced by the movement of the stem, which is essential in high purity gases used for etching, depostion, and doping.
What standards govern semiconductor valves?
The SEMI guidelines are established by SEMI to depict the standards concerning the generation of particles, outgassing, ion pollution, finish of the surface, and material chemistry in the components utilized in the semiconductor production. The most relevant SEMI standards in regard to valves are SEMI F57 (water with a purity level of 99.998% or above), SEMI F20 (chemical delivery), and SEMI F83 (gas delivery). Compliance with the SEMI requirements is a must for any valve installed in semiconductor manufacturing plant.
References
- SEMI — Standards for Semiconductor Manufacturing Equipment and Materials. The global industry association that publishes the standards governing particle generation, outgassing, and ionic contamination for all components used in semiconductor fabrication.
- GEMÜ — High‑Purity Valves for Semiconductor Applications. German manufacturer of diaphragm, bellows, and globe valves for ultrapure water, chemical delivery, and gas distribution in semiconductor fabs.
- Swagelok — High‑Purity Fluid System Components. Manufacturer of high‑purity bellows valves, diaphragm valves, check valves, and pressure regulators for semiconductor and electronics manufacturing.
- Entegris — Fluid Handling Solutions for Semiconductor Manufacturing. Manufacturer of high‑purity valves, fittings, and chemical delivery systems for the most contamination‑sensitive semiconductor processes.
The types of semiconductor valves — diaphragm, bellows, ball, check, and regulators — share a common design imperative: they must control the flow of ultra‑clean fluids without contaminating them. A diaphragm valve isolates the fluid from the actuator and cycles for millions of operations without particle generation. A bellows valve provides a hermetic seal for high‑purity gases. A check valve prevents backflow without introducing a contamination source. Every valve in a semiconductor fab is selected not just for its flow capacity and its pressure rating, but for its contribution to the parts‑per‑billion purity that the silicon wafer demands. For the hygienic process industries, Eagle Fittings manufactures sanitary valves — ball valves, butterfly valves, check valves — to the 3‑A and BPE standards that food and pharmaceutical processing require. The semiconductor industry's standards are different, and its valves are different, but the principle is the same: the valve that controls the fluid must be as clean as the fluid it carries.
