Pipe Coupling vs Union: Which Joint Do You Actually Need?

Both are devices used to connect two parts of piping, but the distinction between them doesn't depend on coding standards. Like a coupling, a union is fitted so that the pipe can be lengthened or repaired. However, while couplings are intended to make permanent joints, unions are meant to allow for future connection of equipment. Unions allow you to remove valves, pumps, strainers, or meters from the piping without cutting or unscrewing anything. Ask yourself one question when making your choice: will the union have to be disassembled in the future?

Short answer: If you want to connect two pipes, couplings are just one fitting to complete the job. A coupling will allow you to make a single continuous run of pipe. To disassemble, you either turn the pipe or cut it out, which may be an easier option. Union fittings, however, are different because they are used in a situation where the piping has to be taken apart for maintenance. This consists of three parts: two ends and a nut that can be separated at the seat without rotating the pipes. Couplings come in various forms including threaded, socket, butt-welded, and grooved options. Unions are available in either the threaded or socket-style form, which is usually within the NPS size of 1/8 to 4 inches.

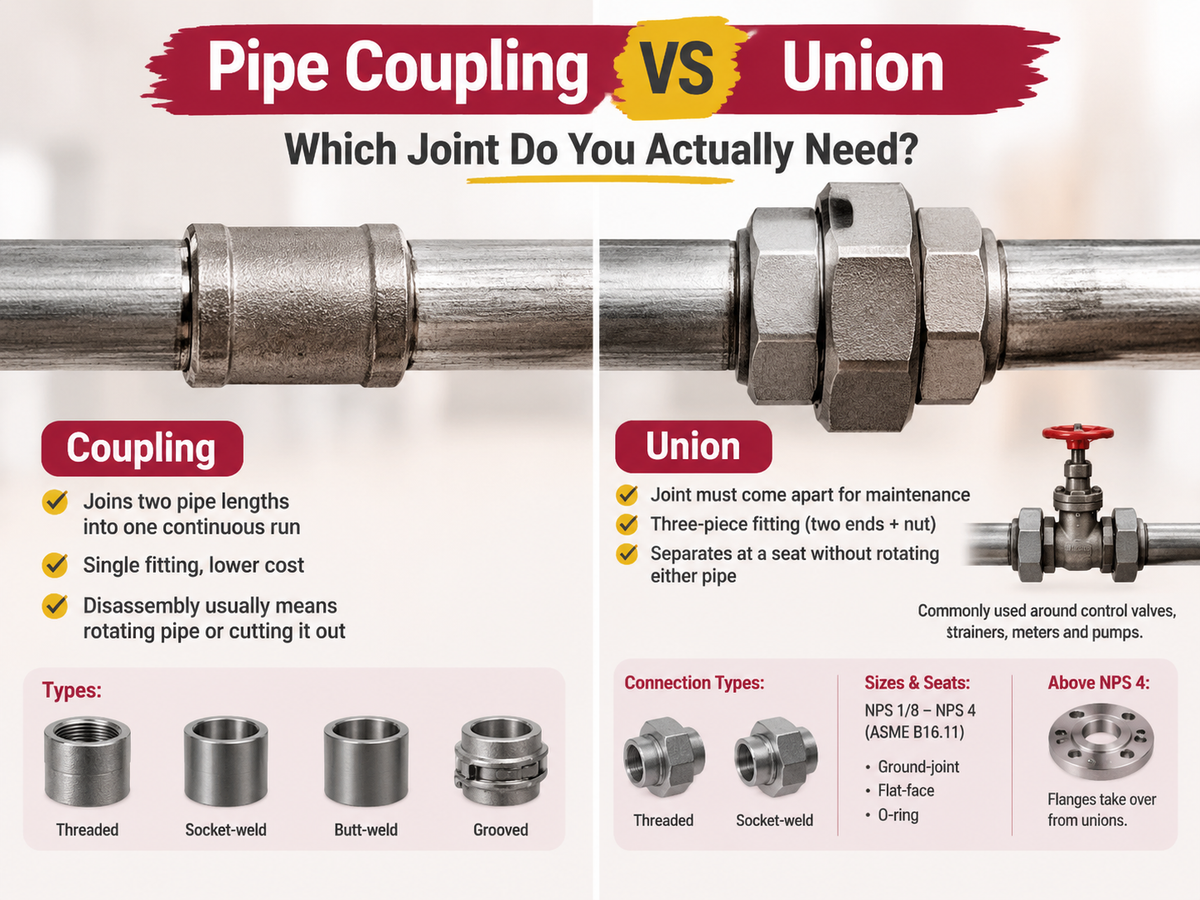

The one-line difference
Couplings: the permanent joint
Unions: the serviceable joint
Standards, ratings and the comparison table
Where each one belongs
Sizing, materials and cost
Frequently asked questions
References
Conclusion

The One-Line Difference

When looked at closely, the two connections are aimed at different issues.

Coupling: the process is used to connect pipe to pipe or pipe to swedes. Thus, its role is to make the pipe operation seamless. This means that when the connection is made, there is a seamless operation of piping.
Union: the purpose is to allow connecting and disconnecting the fitting part of the system. Thus, the task is to access.

None of the two parts is a regulatory decision, which is important to clarify because the question often comes up. For piping codes, there is no importance in determining if coupling or union was used. They care if the part can withstand pressure and if the fitting is accessible enough for maintenance.

The practical test used for this process includes the performance of the mechanical operations. A threaded coupling has to be utilized to connect two pipes so that the pipes or coupling will have to be spun. In this way, the breaking of the joint in the reverse order will require the same activity while the cutting of the pipes will be required if the need to break the joint arises. Union operates in such a way that the nut can be turned on one side and both the pipes remain in place.

Couplings: The Permanent Joint

A coupling might be defined as a short section of pipe which can be threaded or can be welded, and is sized to the application. The types vary and fit different joining techniques.

The threaded coupling. It comes with threads according to ASME B1.20.1, which regulates all-purpose pipe threads. The seal is created with the help of a thread as well as a sealant or tape. It is quick and easily maintained via a wrench, and is used on small utility pipelines.
The socket weld coupling. This coupling has pipe ends that go into a socket and are fillet welded. According to the ASME B16.11 regulation, the pipe should enter a socket all the way in with a small gap between the pipe end and the bottom of the socket, about 1.6 mm; otherwise, there is a risk of damaging the weld.
The butt weld coupling. This coupling is produced according to the ASME B16.9 regulation and has pipe ends that perfectly match the pipe wall making this weld a full penetration one. This type of coupling is the strongest and the most secure from leakage.
The grooved and mechanical coupling. This type of coupling is created with the help of roll-grooved pipe ends and a housing with a gasket. This type provides a quick installation and some possibility of deflection making it popular for fire protection and large utility pipelines.
The compression and slip couplings. These couplings are often used for plastic and copper systems. The slip coupling is used to fix the damaged part of the pipe.
The reducing coupling. This coupling allows joining two sections of different diameters.

In case the coupling needs to be mounted on a long pipeline, welded couplings should be considered; in case the pipeline is small-diameter and should be dismantled during commissioning or servicing works.One specific variant is worth knowing because it comes up in every building services job — the mechanical coupling used to join a line without welding or threading it, as covered in this explanation of what a lap joint coupling is and where it is used on water pipe for exactly that reason.

Unions: The Serviceable Joint

A union consists of three parts: a male connector, a female connector, and a nut that brings the two connectors together and presses it against a seat. Each connector has threads or a socket weld connecting it to its respective pipe, while the installation of the nut is done after sliding it onto the male connector. Moving the nut tightens the two connectors and pushes them against the seat.

To take apart a union, one has to loosen the nut, which leads to separation of the connectors. The pipes do not turn, and no operations on the connectors or pipes have to be performed. That is what makes the union so efficient, and that is why unions of that type are always used in those positions:

Near control valves – to be able to replace and maintain the valve easily without cutting the pipe line.
Before strainers and filters – because those parts have to be cleaned regularly.
Before measuring instruments – since in the instruments have to be sent for calibration.
Before any sort of machinery, including small pumps, for future replacements or repairs.
Before sampling points – since they are used only occasionally.
When establishing a connection between two rigid parts – this allows to make the last connection without adjusting for their rotation.

The design of the seat is what determines the capabilities of a union. The grounded seat, which is a conical metal-to-metal joint, is considered industry standard as a seat for process piping because it does not require any elastomers to function properly and can operate in cryogenic conditions up to about 500 degrees Celsius depending on the material used. Flat-face seat is another heavy-duty use of metal-metal contact principle for low pressure service. The O-ring seat is successful in avoiding leaks when clean fluids, air or water are used, but comes with limitations related to the elastomer's temperature range of application so it cannot be used in case of steam.

The dimensions and rating can be found in ASME standard number B16.11, which specifies the use of the forged fittings, including unions, from NPS 1/8 to NPS 4 in terms of regular classes 2000, 3000 and 6000. The MSS SP-83 deals with Class 3000 socket-welded and thread unions, while MSS SP-114 deals with corrosion-resistant joints in Classes 150 and 1000. When we go over NPS 4, the practical choice changes as the flanges become the ultimate way of disconnecting pipe connections so that you will rarely see unions in pipelines larger than this size.

In hygienic systems the same problem is solved by a different fitting family. A sanitary clamp joint gives you the disconnectability of a union with no threads in the product path and a gasket that can be replaced in seconds, which is what makes it suitable for CIP and for the aseptic sections of a process — the construction and the size range are set out in this explanation of what a tri-clamp fitting is and how the joint is made.

Standards and Pressure Ratings

Neither fitting can be specified on appearance, so the standard behind each one is the specification.

Feature	Coupling	Union
Primary purpose	Extend or repair a pipe run	Join pipe at a point that must open again
Components	One piece	Three pieces: two ends plus a nut
Disassembly	Rotate pipe or cut the joint	Loosen the nut
Pipe rotation required	Yes for threaded, no for welded	No
End types	Threaded, socket weld, butt weld, grooved, compression	Threaded, socket weld
Typical size range	NPS 1/8 upward; large sizes available	NPS 1/8 to NPS 4 per ASME B16.11
Seal	Thread sealant, weld, or gasket	Ground joint, flat face or O-ring
Pressure classes	Class 150 / 300 / 3000# / 6000# depending on type	2000#, 3000#, 6000#
Relative cost	Lower	Higher — three components and a machined seat
Best suited to	Long uninterrupted runs, high pressure, buried lines	Access points, low to medium pressure, small bore

Thread standards are just as important as fittings standard. General-purpose pipe threads fall under the umbrella of ASME B1.20.1. The weld-end specifications come from ASME B16.11 (forged fittings) for the shape of forged fittings and ASME B16.9 (butt-weld fittings) for the shape of butt-weld fittings. Materials follow the same general rule, such as ASTM A105 (carbon steel), A182 F304 and F316 (stainless steel), and A182 F11 and F22 (Alloy). The weld preparation, inspection and documentation requirements behind those joints are covered in this guide to stainless steel weld fitting guidelines, which matters because on any weld-end coupling the joint quality is the fitting's weak link, not the fitting itself.

Where Each One Belongs

Four basic rules guide most decisions.

Long runs: couplings. A pipeline is delivered in lengths of 6 m or 20 ft, thus the run of a considerable length will automatically have couplings. The procedure should be to use as few couplings as possible and place them in locations that can be inspected easily.
Anything requiring maintenance: unions. The only rule here is simple: if the component is going to be taken out at some point in time, it needs to have unions on both its ends. If retrofit is needed, it is extremely costly.
Rigid assemblies getting together: unions. When two or more prefabricated spools need to be connected on site with no option to rotate any of the pipes, a union is often the only way to connect two ends.
High pressure, high temperature, cyclic or underground: welded couplings. A union is a mechanical junction with a seat and a nut, which is a leak tree pathway. When it is clear there is no need to open a junction and leak consequences are severe, a welded connection is indispensable.

The same logic applies to non-process services. Compressed air, nitrogen and instrument lines typically use unions at the point of use because equipment gets swapped — the fittings and the reasoning behind them are set out in this buyer's guide to the adapter used to connect compressed air to a clamp fitting, where a quick-release joint at the tool is the whole point. And in hygienic plants the equivalent decision is between a permanent butt-weld, a clamp joint for anything that gets opened for cleaning, and a union where a utility connection meets process equipment.

Sizing, Materials and Cost

The measurement of couplings mainly centers around the pipe, which includes identical nominal dimensions, complementary schedules for welded ends, parallelizable thread forms for connected ends. When it comes to unions, aside from the requirement of access to the nut for a wrench, there’s an additional constraint. It refers to the installation of the union tightly next to a wall or behind the valve body — no one would be able to unlock it and if someone managed to do so, the nut would fail during the attempt.

The material remaining always depends on the fluid, not the cost.Stainless is for hygienic, corrosive and clean-process applications, and the 304 versus 316 decision is a corrosion question rather than a quality question — 316's molybdenum content is what buys resistance to chlorides, and that difference is explored in this comparison of how 304 and 316 stainless differ in performance and application. Alloy steels such as F11 and F22 are for high-temperature and high-pressure service.

The indicative prices for planning instead of quoting:

Connecting the carbon steel pipes with threads will take you from $2 to $15 depending on its size.
Connecting using stainless steel pipes Class 150 will be priced at any rate from $5 to $40.
The small bore butt weld connection will cost you from $5 to $30.
The forged connection (use either thread or socket weld) will go from $15 to $120 depending on size, type, and material.
The sanitary connection consists of ferrule, gasket, and the clamp, the cost of which will be from $8 to $40.

In case of the union, the price is from three to five times higher than the equivalent pipe, but such higher price gives only one advantage - the possibility of being able to take the connection apart. In those cases when it is needed, it gives the best result of the maintenance planning of the whole project, while in other cases it appears to create some unnecessary mechanical connection that can be leaked.

Frequently Asked Questions

What is the main difference between a pipe coupling and a union?

A coupling connects two lengths of pipe to either make a run longer or make repairs. Coupling is a fitting that hardly ever is removed. In order to dismantle a coupling, either the pipes have to be rotated or the whole joint has to be cut. In contrast, a union is used to connect any two pipes at a point which has to undergo maintenance. The union consists of three parts (two ends and a nut), and allows to pull either pipe apart without rotating it. There are couplings along the run and unions near valves, strainers and other material.

Can a union be used instead of a coupling?

There are instances where one may use a union deliberately so that it can sometimes be used to make sure that any joint in long runs remains operational. There are two points to keep in mind as far as unions are concerned. They are costlier and the additional connections in make them prone to leaking. Further point to note is that a union would only serve its purpose if there is some space for its use.

Which is stronger, a coupling or a union?

A welded coupling is more durable. A butt-welded coupling that conforms to the standards of ASME B16.9 and which is welded in similar fashion to the coupling pipe will yield a junction whose strength equals that of the pipe. This is the reason why welded couplings are recommended for applications involving high temperatures, high pressures, and cyclic loading. A union is a mechanical joint where two ends are joined via a nut with a thread. A forged union manufactured according to ASME B16.11 and of the 3,000 or 6,000 class would be good enough for most utility applications, but it does have the disadvantage of requiring a seat and a threaded connection while a weld does not. If there is no possibility for leakages, the best solution would be to weld the junction.

Why are unions only made up to NPS 4?

Due to the size of the flange, it is a much better solution for disconnecting joints. A union nut for a big-bore line will be large, costly to manufacture, and difficult to apply torque evenly. Moreover, with increasing diameter, the moment arm needed for proper installation grows, unlike flanged joints that distribute the bolt load across a circular surface of fasteners. The ASME B16.11 standard regulates the use of master union connectors sized from NPS 1/8 to NPS 4, and flanged connectors starting from NPS 1/2, which explains the point of transition.

References

Conclusion

Inquire if at any point, the joint has to be disconnected, and the type of joint will be evident. Couplings can be made long or short, and can be fitted using various designs such as threaded or butt-weld. The welded couplings are capable of handling the pressure while the threaded ones provide easier handling. Unions are special joints that make it possible for pumps, valves, strainers and measuring instruments to be removed without the need for pipe cutting. They justify their cost when the first time any of the components needs servicing. All one has to do is find the correct size, pressure class, and seat type while keeping the joint open.
