We recently were asked the following question by an engineer specifying a compressed air manifold: “Can I use a 1/2 MIP fitting to thread into a 1/2 NPT port?” Although this is a straightforward question on the surface, it exposes an entire world of tapered pipe threads. The definitive answer to this was yes, but that was because the engineer understood that both designations (MIP and NPT) are essentially the same from a thread profile standpoint. However, these two acronyms refer to different characteristics that can cause issues such as leaks, galling and fittings which feel tight when being joined but would never seal.
When dealing with: Industrial piping systems, (compressed/air/gas) or (ANSI/bathroom/kitchen) tubes systems, part of your job will involve fluently using words that qualify your work in the above areas. In this guide we will define each term, and how they relate to themselves and to each other; we will also explain how to distinguish among the three types of systems mechanical fitting type (I.E., tapered vs. non-tapered), and finally we will show you how to select proper connection type by selecting proper thread size/type.
What Is NPT? The Thread Standard That Defines the Form
NPT The acronym NPT refers to the National Pipe Tapered Pipe Thread System. In North America, it is the most commonly used type of tapered pipe thread standard defined by the American National Standards Institute (ANSI) and the American Society of Mechanical Engineers (ASME). The "tapered" aspect of this standard is important because the diameter of the fitting changes slightly or decreases as it extends from one end to the other. When a male thread fitting is tightened into a female threaded port, the threads lock together to create a mechanical seal (s). The taper on NPT threads is one inch (1 in.) of taper per sixteen inches (16 in.) of fitting length, or 0.0625 inches for each inch of thread.
Sealants for this connection are needed because threads are distorted to create the seal instead of being sealed with an O-ring or gasket. To complete the formation of a seal, sealants such as PTFE tape or pipe dope must be applied in order to cover any gaps resulting from the spiral leak path, between the threads once the joint has been tightened.
Sealants serve two primary functions: Providing the essential filling materials in order to fill any remaining voids and lubricating thread surfaces during assembly to prevent galling.
Threads can range in size from 1/16" to 24". However, the predominant thread sizes used in fluid systems are typically 1/8" to 4".
Within the same family, you will encounter several variants:
- NPTF (National Pipe Tapered Fuel): This particular style is known as Dryseal. Compared to other styles, it is a more precise fit on the crest and root of the threads. The Dryseal is meant to form a seal via deformation of the threads without use of a sealant at first assembly. This style is used frequently in hydraulic and fuel systems.
- NPS (National Pipe Straight): Straight (non‐tapered) threads that have the same thread form; Straight threads use a gasket or O‐ring to create a seal; they are used in mechanical joints; they are used in swivel connections; and they are used in some types of electrical conduit fittings.
What Is MIP? The Gender Designation, Not the Thread
MIP Male Iron Pipe (MIP) is not a type of threading but a way of identifying the fittings by ability to be attached to something else (i.e. how do they connect ) as well as what material/pipe system they were designed for. MIPs are typically made from a variety of pipe systems but generally have external threads that conform to either National Pipe Threads or National Tapered Pipe Threads. When referring to an item with designation "1/2" MIP", you are generally referring to the male tapered threads created according to the applicable national standards for 1/2" ........ FIP is Female Iron Pipe (FIP) and has internal threads. (FIP and MIP fittings also follow the same profile.)
Historically, the existing pipe types were only black iron or galvanized steel. However, today they also use brass, stainless steel and plastic. The threads on these types of continuous fluid passage connections still maintain the same thread form as before, and there are people that might ask what difference exists between MIP and NPT; an acceptable response is that MIP identifies the gender of the fitting and that the threads are NPT on that fitting. Therefore, the 1/2 MIP fitting is a 1/2 inch male NPT connection.
There is a related pair of terms that cause similar confusion: MNPT and FNPT. These are unambiguous — Male NPT and Female NPT. MIP and MNPT are functionally identical for most purposes, though the former historically referred specifically to iron pipe applications.

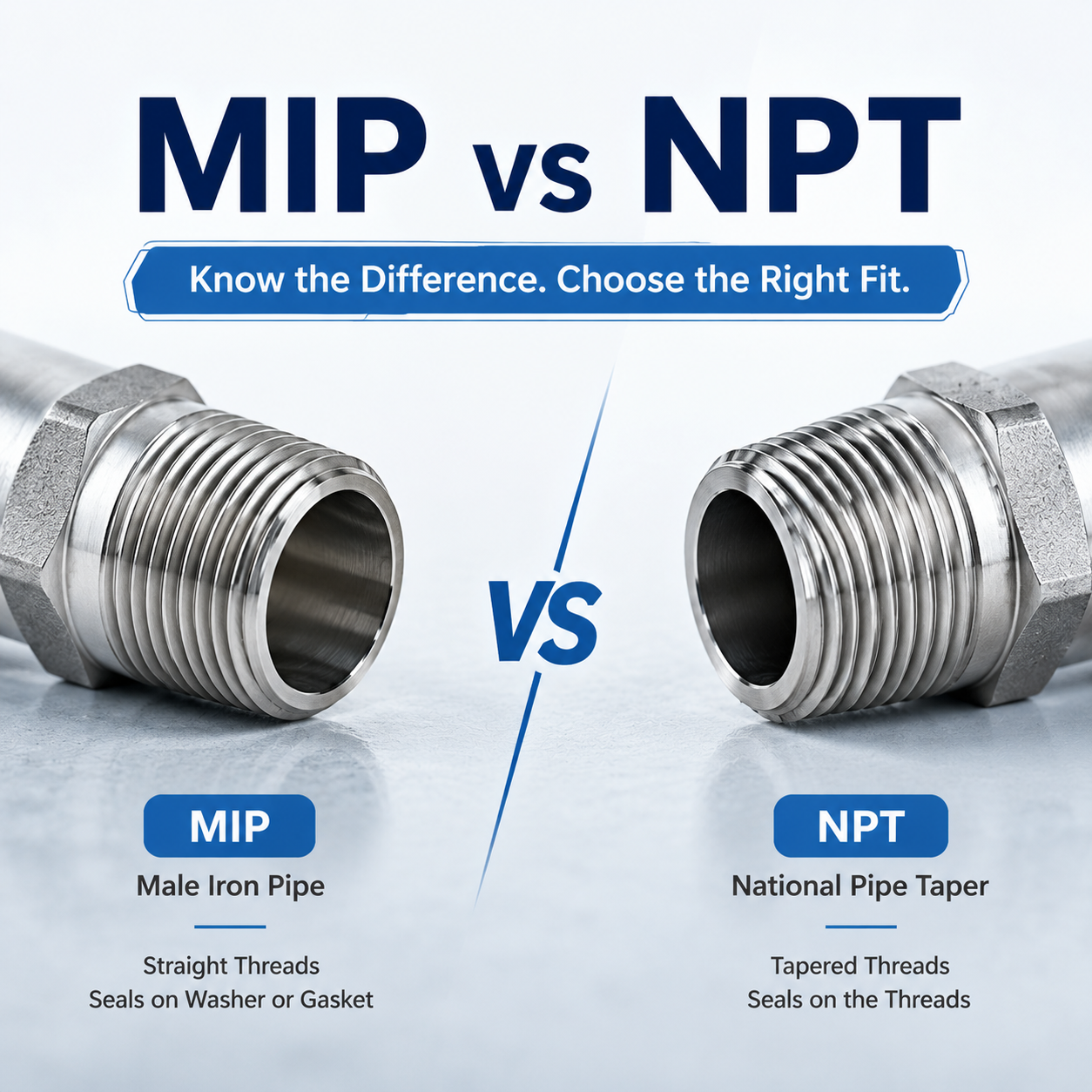

Comparing the Two Concepts
| Characteristic | MIP (Male Iron Pipe) | NPT (National Pipe Tapered) |
|---|---|---|
| What it defines | Fitting gender and original material context | Thread geometry — tapered, 1:16 taper |
| Thread type | Almost always NPT | Tapered; can also refer to Dryseal or Straight in context |
| Common counterpart | FIP (Female Iron Pipe) | FNPT (Female NPT) |
| Sealing method | Thread deformation plus sealant | Thread deformation plus sealant; dryseal possible with NPTF |
| Typical materials | Brass, stainless steel, galvanized steel, PVC | All common pipe materials |
| Common sizes | 1/8" to 4" | 1/16" to 24" |
Compatibility Between the Two
This is where the rubber meets the road. In most cases, a male iron pipe fitting will screw into a female tapered port of the same nominal size and seal with PTFE tape. There will be an engagement between threads, wedging of the taper and filling of the spiral gap with sealant. This compatibility allows the acronym to serve as a convenient shorthand: as long as a port is tapped to the national standard, an MIP of like size will fit.
To be compatible all components need to be the same size; have the same thread profile; and seal in the same manner. For example, a male 1/2 pipe fitting cannot connect with a female 3/4 pipe fitting because they do not have matching diameters. Both NTP fittings need to have the same type of fittings on each end (i.e. one end should have NPT threads and the other end should have NPT threads). In addition all threads need to have a sealant type that is installed correctly (i.e. tape is to be wrapped clockwise but should not go beyond the threads) and the fitting must be torqued to the correct amount when installed (i.e. the joint should be hand tight plus 1-2 turns with a wrench).
What is Dryseal Threading? A male NPTF fitting will fit into a regular female port but having tighter tolerances lets the fitting form a seal without the use of any type of sealant. Adding tape to an NPTF thread could cause the thread's crest to not set properly, therefore leading to leakage. Guidance from fluid system manufacturers like Swagelok is clear: Dryseal threads should be assembled without sealant for the first installation; a sealant can be used on subsequent assemblies after the threads have worn slightly.
When Tapered Threads Are Not Enough: Alternatives for Different Applications
While tapered pipe threads are dominant in North American piping, they are not always the best choice. The mechanical seal they create is vulnerable to vibration, thermal cycling, and overtightening. For applications where a metal‑to‑metal thread seal is undesirable, several alternatives exist:
- Compression fittings: A double‑ferrule design, such as those from Parker Hannifin, seals by swaging metal ferrules onto the tube. The threaded body provides the mechanical force; the seal is at the ferrule‑tube interface, not at the threads.
- O‑ring face seal fittings: These use a flat‑faced component with an O‑ring captured in a groove. The seal is made by compressing the elastomer, not by the threads. They are common in hydraulic systems and are highly resistant to vibration.
- Sanitary Tri‑Clamp fittings: For food, dairy, and pharmaceutical applications where the interior must be smooth, drainable, and cleanable, tapered thread crevices harbor bacteria. Instead, a clamp‑and‑gasket connection creates a flush, crevice‑free joint that disassembles in seconds. Eagle Fittings specializes in this type of connection for hygienic processing. Our sanitary ball valve collection is built entirely with Tri‑Clamp ends, eliminating the thread‑crevice issue entirely.
A transition from a sanitary line to a threaded connection (like connecting utility line to a process line) will require an adapter. An adapter has a Tri-Clamp ferrule on one end and male or female tapered thread on the other end. Eagle Fittings provides 316L stainless steel adapters with complete traceability for installs that keep sanitary side clean when transitioning to standard pipe threaded connections.
How Much Do These Fittings Cost?
The price is affected by a number of factors – material selection, size, and manufacturer. For example, a ½ inch brass male elbow retails for approximately $2-6, while the same piece made of 316L stainless steel could be priced around $8-$20. With regard to couplings, a 2 inch stainless steel coupling could range from $30-$80. These are all listed as standard industrial commodities.
However, sanitary Tri-Clamp fittings, which are electropolished and certified, usually exceed the above prices due to the surface finish and documentation. For example, a 1 ½ inch 316L elbow typically retails for between $15-$40.
When comparing costs, remember to evaluate total cost of installation; i.e., a threaded joint requires thread sealant and takes more time to install than a clamp joint does. Threaded joints take time to assemble and require sealing materials, whereas clamp joints require a gasket and clamp but can be assembled or disassembled in seconds. In a production location where there is daily cleaning involved, the savings in labor associated with assembly of clamp joints can easily offset much of the premium paid.
How to Choose the Right Connection Style
Choosing the appropriate thread for your system comes down to four questions:
- What is the fluid and the temperature? Seal integrity and material compatibility requirements differ with water, compressed air, hydraulic oil, caustic CIP solution and gas - specifically those used in the semiconductor industry.
- What is the required cleanability? Generally, tapered threads are not acceptable when a process requires CIP or SIP cleaning. Use a clamp connection or a butt-weld connection instead.
- What are the pressure and vibration conditions? Tapered threads are good for use in low-pressure applications but are not effective in high-pressure applications subject to huge amounts of vibration. An O-ring face seal and/or compression fitting would be better choices for applications involving high vibration and/or pressures exceeding some thousand psi.
- Does the system require frequent disassembly? A Tri‑Clamp connection is suitable for everyday disassembly; however, after several times (approximating three to seven), a tapered thread will gall; therefore, you cannot rely on it sealing properly.
Frequently Asked Questions
Is NPT compatible with MIP?
Correct. A male MIP connector features NPT threaded ends, so any female NPT outlet of the same nominal measurement can receive a male MIP connector. An alternating wedging action of the male and female threads, and the presence of thread sealant, such as Teflon tape, create the sealing action.
Is 1/2 MIP the same as NPT?
A 1/2 inch male iron pipe adjustment connects with male national pipe threaded connections. In male adjustment (Male Iron adjustment), it is typical to refer to male or female connections or thread standards as two separate terms; hence these two connections describe two different types of adjustments. A 1/2 MP and a 1/2 MNTP are functionally identical.
Is MIP equivalent to NPT?
The two fittings may not be the same, but they are very much the same with regard to application. MIP coverings will fit any component when they have NPT threads. These descriptions will allow you to make the right choice based on component type (male) and material (iron pipe) of the MIP and NPT thread fittings.
Is there a difference between MIP and NPT?
One is an appropriate # descriptor; one describes the wiring standard for an Ethernet connection. While these are both connected to each other, they are not interchangeable. In fact, comparing them directly is no different from comparing a "socket" with a "3/8-inch drive".
References
- ASME B1.20.1 — Pipe Threads, General Purpose (Inch) — The defining standard for NPT and NPTF threads. American Society of Mechanical Engineers.
- Swagelok — Thread and Connector Identification Guide — Practical reference for NPT, NPTF, and other thread types.
- Parker Hannifin — Tube Fitting Training Manual — Guide to thread types and sealing methods in fluid systems.
- Engineering Toolbox — NPT Thread Dimensions — Reference data for NPT thread sizes and dimensions.
The distinction between MIP and NPT is largely linguistic rather than engineering-based. One designation refers to the fitting itself while the other describes the threading of that fitting. In practice, when a gas line terminates at an iron screw (male) thread on one end and a valve outlet has a tapered (female) thread, those components will mate with, seal and maintain pressure together.
Understanding the nature of this connection is the basis of threaded pipe assembly, and using the correct connectors versus using clamps or compression connectors (to, for example) is a reflection of a designer who is able to select the appropriate connector for the application. Eagle Fittings has an extensive catalog of stainless-steel fluid handling fittings, including threaded adapters and fully electropolished sanitary fittings, so you may find the best connection for your application based on fluid type, cleanability requirement, and budget.
