A tri clamp fitting is a sanitary connection with three parts: a ferrule welded to each tube end, a gasket between them, and a clamp holding the assembly closed. It is simple enough that people specify it from a photograph, and that is where most of the expensive mistakes start.
The choices that matter are the standard, the size, the alloy, the surface finish and the gasket. Get those five right and the fitting costs what it should; get one wrong and the line either leaks, fails an audit or cannot be cleaned.

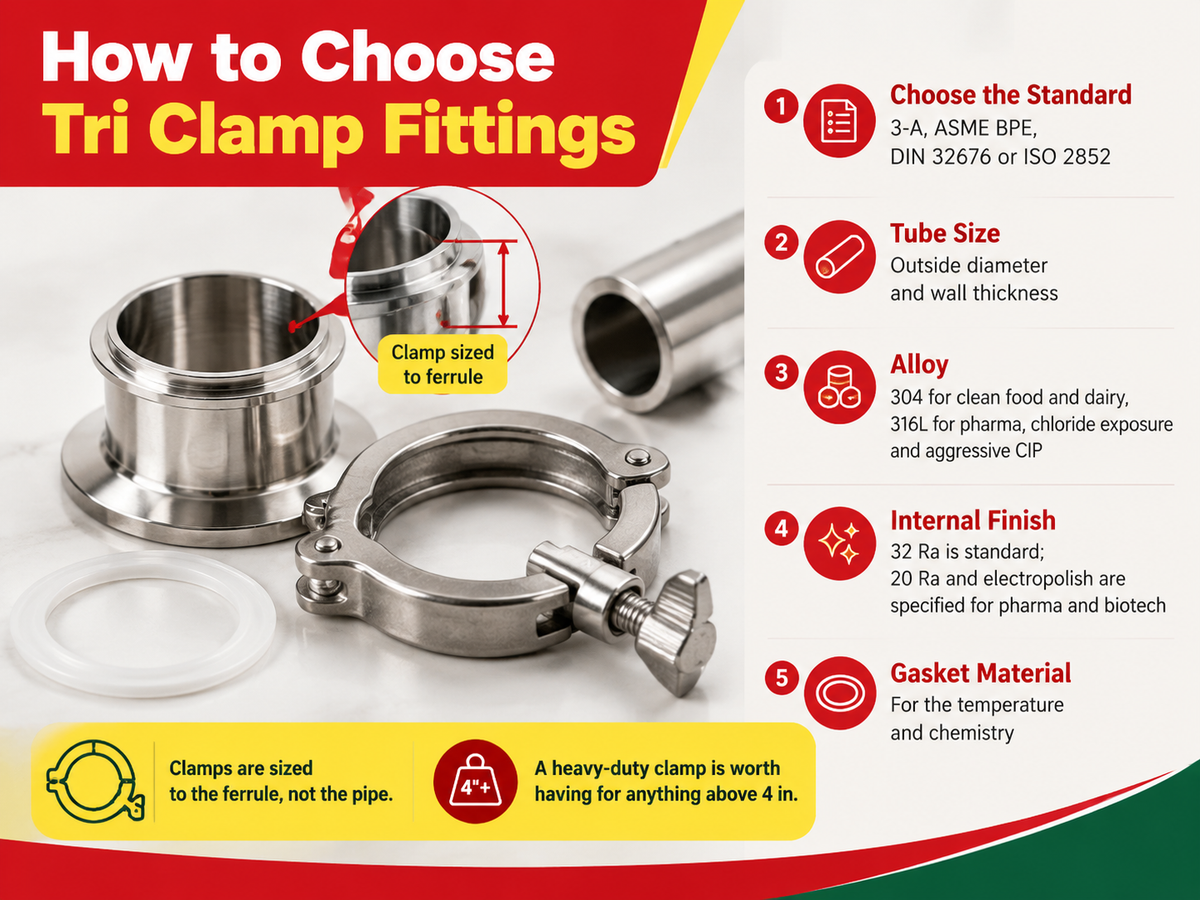

Quick answer: Choose the standard first (3-A, ASME BPE, DIN 32676 or ISO 2852), then the tube outside diameter and wall thickness, then the alloy (304 for clean food and dairy, 316L for pharma, chloride exposure and aggressive CIP), then the internal finish (32 Ra is standard; 20 Ra and electropolish are specified for pharma and biotech), then the gasket material for the temperature and chemistry. Clamps are sized to the ferrule, not the pipe, and a heavy-duty clamp is worth having for anything above 4 in.
Table of Contents
- Start With the Standard, Not the Size
- Choosing the Size
- Choosing the Material
- Gaskets and Clamps
- Selection by Application
- What Tri Clamp Fittings Cost
- Manufacturers and What They Are Good At
- Five Mistakes That Cost Real Money
Start With the Standard, Not the Size
Four standards cover most of the world, and they are not interchangeable. A DIN ferrule will not mate with an ISO clamp, and neither will accept a 3-A gasket.
3-A (63-04) is the North American dairy, food and beverage baseline: imperial tube outside diameters from 1/2 in to 12 in, hygienic design requirements, and a certification system that authorises the holder, not the product. ASME BPE is the pharmaceutical and biotech standard, with imperial dimensions, tighter tolerances and surface finish designations from SF1 to SF4 that specify both the roughness and the method of achieving it. DIN 32676 is the European metric equivalent from DN10 to DN150, and ISO 2852 with SMS 1145 covers the international and Nordic dairy conventions with different clamp geometry again.
Two practical rules follow. First, choose one standard for the whole plant at the design stage, because a mixed installation produces a box of parts that will not assemble. Second, check the certificate route before ordering: a 3-A claim is only valid if the manufacturer holds the authorisation, and the difference between a genuine holder and a reseller is visible in the documentation. The certification structure behind the most common food-grade standard is explained in this overview of 3-A 63-04 certification.
Choosing the Size
Tri clamp sizes are quoted by the tube outside diameter, not by the nominal bore. A 1.5 in fitting fits 1.5 in OD tubing, which has an internal bore that depends on the wall thickness. That distinction causes more ordering errors than any other, because a 1.5 in fitting and a 1.5 in pipe do not mean the same thing.
The working sequence is: measure the tube OD with a caliper, confirm the wall thickness, then choose the ferrule that matches both. Clamp size follows the ferrule, and gasket size follows the ferrule as well, so the ferrule is the anchor for the whole assembly.
Below 1/2 in the range becomes specialist, and above 4 in the clamp forces start to matter: a heavy-duty clamp with a double-pin or bolt closure is the difference between a joint that seals and one that weeps under thermal cycling. The measuring method, including where to take the caliper reading on a rolled ferrule, is set out in this guide to measuring tri clamp fittings.
Choosing the Material
Two alloys cover almost everything, and the difference is chemistry, not grade snobbery.
304 (1.4301) has 18 to 20% chromium and 8 to 10.5% nickel and no molybdenum. It handles clean food, dairy and beverage service well, and it is the economical choice for dry or low-chloride duty.
316L (1.4404) adds 2 to 3% molybdenum and carries a maximum carbon of 0.03%, which resists pitting and crevice corrosion in chloride environments and prevents sensitisation during welding. Pharma, salty products, coastal sites, and anything with aggressive CIP chemistry belong here.
Two rules prevent most failures. Match the fitting alloy to the tube alloy, because welding 304 fittings to 316L tube creates both a galvanic couple and a documentation problem. And ask for EN 10204 3.1 mill certificates, which trace the actual heat of steel, not the catalogue grade. The detailed comparison, including where 304 genuinely outperforms expectations, is in this guide to 304 versus 316 stainless steel.
Roughness is measured in Ra and quoted in micro-inches or micrometres. The numbers that matter:
- 32 Ra (approximately 0.8 µm) is the standard hygienic finish for food, dairy and beverage. It is what a 3-A fitting normally carries.
- 20 Ra (approximately 0.5 µm) is the common pharmaceutical specification, and it costs more because it takes more operations to achieve consistently.
- 15 Ra and below is for biotech and for products where residue matters at the parts-per-million level.
- Electropolishing improves both the roughness and the passive layer, and typically adds 20% to 40% to the price.
The commercial point is that finish is a process, not a claim. A supplier who quotes "polished" without a number is quoting an appearance. Ask for the Ra value, the measurement method and the instrument, and expect a certificate per batch on anything above food grade.
Gaskets and Clamps
Surface finish sits with material because it is bought the same way. The Ra numbers that matter are 32 Ra (about 0.8 µm) for food, dairy and beverage, 20 Ra (about 0.5 µm) for pharmaceutical work, and 15 Ra or below for biotech; electropolishing improves both roughness and the passive layer and typically adds 20% to 40%. Finish is a process, not a claim, so ask for the Ra value, the measurement method and the instrument, and expect a certificate per batch above food grade.
The gasket is the cheapest part and the most frequent cause of a leak, a cleaning problem or an audit finding.
Four elastomers cover the market. EPDM runs −40 to +120 °C and suits water, CIP chemicals, dairy and general food service. Silicone runs −60 to +200 °C for high-temperature duty and low-temperature flexibility. PTFE runs −100 to +260 °C for chemical resistance and aggressive solvents. FKM (Viton) runs −20 to +200 °C for oils, fats and hydrocarbons. The gasket must match the process chemistry, not just the temperature, which is the mistake that produces a swollen gasket and a leaking joint after three weeks.
Clamps divide into single-pin, double-pin and bolt types, in light and heavy duty. The choice is about force and vibration, not size alone: a 6 in joint under thermal cycling needs a heavier clamp than the same joint in a static cold line. The gasket profiles, including the difference between a standard and an encapsulated seat, are covered in this guide to tri clamp gaskets.
Selection by Application
Brewery and beverage. 304 or 316L depending on chloride exposure in cleaning, 32 Ra, EPDM gaskets, and heavy-duty clamps from 4 in up. Chlorinated sanitisers push the alloy toward 316L.
Dairy. 3-A dimensions throughout, 32 Ra, EPDM. The 3-A requirement covers drainability and the absence of crevices as well as the fitting itself.
Pharmaceutical and biotech. ASME BPE, 316L, 20 Ra or better, PTFE or silicone gaskets depending on the process, and full material traceability with electropolish on wetted surfaces.
Chemical and cosmetic. 316L with PTFE gaskets, and a check on the chemical compatibility of the elastomer instead of an assumption based on temperature alone.
Water and wastewater in food plants. 304 is often sufficient, but the fittings still need a hygienic finish because they sit in the same room as product contact equipment.
What Tri Clamp Fittings Cost
Prices below are indicative 2026 bands for 316L, in US dollars, from medium-volume suppliers. Certification, size and finish move the number more than the brand.
| Item | 1/2 in to 1 in | 2 in | 4 in | 6 in |
|---|---|---|---|---|
| Ferrule (long or short weld) | $6 to $15 | $12 to $25 | $25 to $55 | $50 to $120 |
| 90° elbow | $16 to $35 | $28 to $50 | $60 to $150 | $180 to $500 |
| Equal tee | $18 to $40 | $35 to $60 | $80 to $200 | $200 to $500 |
| Clamp | $3 to $7 | $6 to $12 | $15 to $30 | $25 to $45 |
| Gasket | $1 to $3 | $2 to $5 | $5 to $10 | $8 to $15 |
A 1.5 in 316L weld ferrule retails around $7 from a manufacturer selling direct, and an ASME BPE version with a 20 Ra internal finish around $9, which shows how little the finish adds on a small part and how much it adds on a large one. The cost curve steepens sharply above 4 in because material content and machining time both rise, and a 6 in elbow can cost more than ten times a 1 in elbow.
Certification adds a real but variable amount: $5 to $50 per fitting depending on size, and electropolishing adds 20% to 40% on top. On a brewery build with 200 fittings, that spread is the difference between one supplier and another, so it is worth pricing the same specification from three sources instead of the same price from three catalogues.
Manufacturers and What They Are Good At
The market splits into three tiers, and each is the right answer for a different buyer.
| Maker | Position | Strength |
|---|---|---|
| Alfa Laval | Global process group | Documented hygienic components, valve integration, engineering support |
| Dixon | US industrial distributor-manufacturer | Availability across a wide catalogue, strong distribution |
| VNE, Topline | US stainless specialists | BPE-grade fittings and a deep size range |
| PNW Sanitary, CSI | US manufacturer-direct | 3-A certified ferrules, PMI verification, competitive pricing |
| Eagle | Factory-direct manufacturer | 304/316L fittings and valves, 3-A, CE and FDA documentation, custom sizes and private label |
We sit in the last row, and it is worth being specific about what that means. We manufacture ferrules, elbows, tees, reducers, caps and the valves that go between them, in 304 and 316L, to 3-A, DIN, SMS, IDF and ISO dimensions, with the mill certificates and finish reports that a hygienic installation requires.
Where a factory route wins is on volume and on consistency: 200 ferrules from one heat of steel, with the same finish and the same dimensions, arriving as one shipment. A representative range is this clamp to bevel seat adapter family, which shows the format the whole catalogue follows.
Where a distributor wins is on a Tuesday afternoon when one gasket has failed and the line is down. Both are legitimate; the mistake is buying everything from one route.
Five Mistakes That Cost Real Money
Ordering by nominal bore. Tri clamp sizes are tube outside diameters, and a 1.5 in fitting is not 1.5 in of bore.
Mixing standards in one plant. DIN ferrules, ISO clamps and 3-A gaskets produce a box of parts that cannot be assembled, and nobody discovers it until commissioning.
Specifying "polished" without a number. Without an Ra value and a measurement method, the finish is whatever the supplier decides it is.
Using 304 with chlorinated sanitisers. Pitting appears at the weld heat-affected zone within months, and the fittings look fine until they are inspected.
Buying the cheapest clamp on a large joint. The clamp takes the entire force of the assembly, and a light clamp on a 6 in line under thermal cycling is a leak with a schedule.
FAQ
What is the difference between tri clamp and tri clover?
None in practice. Tri Clover was a brand name that became generic, like Hoover. The connection is the same sanitary clamp joint, and both terms describe ferrules, a gasket and a clamp.
Are 304 and 316L tri clamp fittings interchangeable?
Dimensionally yes, in the same standard and size. Metallurgically they should not be mixed on one weld, because the joint becomes a galvanic couple and the documentation becomes ambiguous. Choose one alloy per system.
What pressure can a tri clamp connection hold?
Commonly rated to about 10 bar, depending on size, gasket and clamp type. The rating falls as diameter rises, and above 4 in the clamp selection decides the working pressure more than the ferrule does.
Can tri clamp fittings be used for steam?
Yes, with the right gasket: PTFE or silicone instead of EPDM, and a clamp rated for the temperature. Steam service is a temperature question first and a pressure question second.
References
- Alfa Laval — Hygienic Fluid Handling Components
- PNW Sanitary — Tri Clamp Ferrules and 3-A Documentation
- Middle East Piping — Tri Clamp Fitting Specifications
- 3-A Sanitary Standards — Certification and Authorised Holders
- ASME — BPE Standard for Bioprocessing Equipment
Conclusion
Standard, size, alloy, finish, gasket. Five decisions, in that order, and the clamp follows the ferrule instead of the pipe.
Send us the standard, the tube OD, the alloy and the finish you need, and we will quote the fittings and the documentation together instead of the fittings alone.
