Unlike standard valves that simply stop/start flow, a 3-way valve adds precision control by mixing or diverting fluids. Found in everything from home heating systems to chemical plants, these valves solve temperature regulation and flow distribution challenges. This guide breaks down how they work, control methods, and how to choose the right type for your needs.
How a 3-Way Valve Works: Two Key Functions
| Function | How It Works | Real-World Example |
|---|---|---|
| Mixing | Combines two inputs into one output | Blending hot/cold water in showers |
| Diverting | Splits one input into two outputs | Switching boiler flow between radiators and water heater |
Visual: Imagine a "T" junction where the valve stem redirects flow like a traffic cop.
3-Way Valve Types Compared
| Type | Control Method | Best For | Limitations |
|---|---|---|---|
| Manual | Handwheel/Lever | Low-cost HVAC systems | Frequent adjustments needed |
| Solenoid | Electrical signal | Industrial automation | Only open/close positions |
| Motorized | Electric motor | Precision temperature control | Higher cost |
| Pneumatic | Air pressure | Hazardous environments | Requires air compressor |
Step-by-Step Control Methods

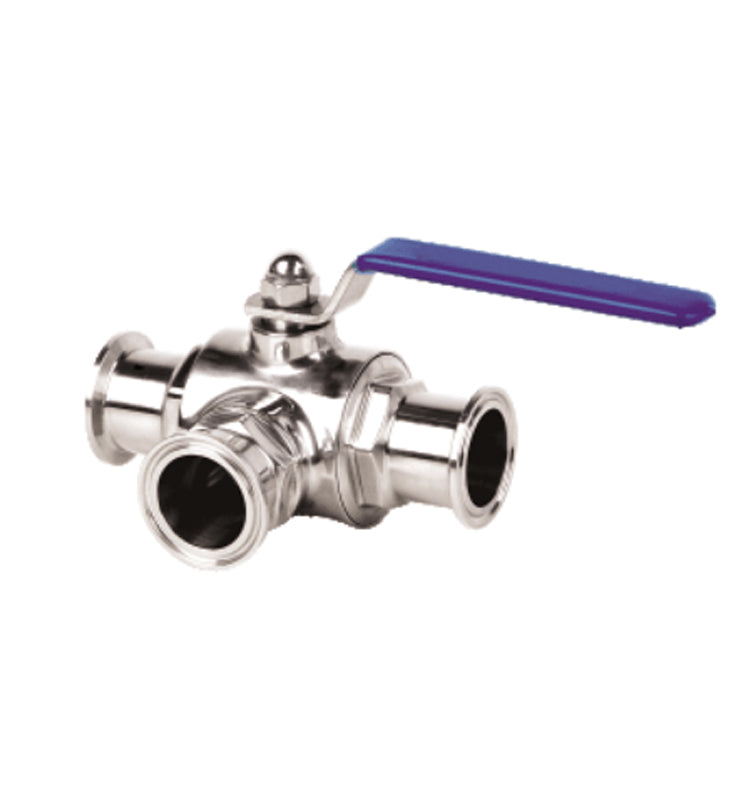

1. Manual Control
- Rotate handle to align with flow arrows:
- ⭕ Mix mode: Handle midway → blends Input A + B
- ⭕ Divert mode: Handle fully left/right → directs flow to Output 1 or 2
2. Automated Control
- Thermostat Signal:
- Room cools → motor opens hot water port
- Room overheats → opens cold water port
- PLC Command:
- "Divert 70% to Tank A, 30% to Tank B"
3-Way vs. 2-Way Valves: Key Differences
| Feature | 3-Way Valve | 2-Way Valve |
|---|---|---|
| Ports | 3 (A, B, COM) | 2 (In/Out) |
| Function | Mixing/diverting flows | Simple on/off |
| Cost | 2-3x higher | Budget-friendly |
| Applications | Temperature control systems | Isolation/shutoff |
Example: Home radiators need 3-way valves for zone control; garden faucets use 2-way.
Eagle’s Smart Valve Solutions
While basic valves work, Eagle solves common frustrations:
- Anti-Clog Design: Tapered ports prevent sediment buildup in hard water
- Position Feedback: Sends valve-open % signal to smart home systems
- Fail-Safe Modes:
- Power loss? Returns to "full hot" position (safety default)
- LeakGuard Seals: Withstand 500,000+ cycles (tested per ISO 5208)
A brewery reduced temperature fluctuations by 80% using Eagle's motorized mixing valves.
5 Common Mistakes to Avoid
- Wrong Flow Direction
- Arrow labels must match pipe flow (diverting vs. mixing configs differ)
- Undersized Valve
- Calculate flow rate: GPM = √(ΔP ÷ Resistance)
- Ignoring Viscosity
- Honey-like fluids need motorized valves (manual struggles)
- Missing Bypass Loop
- Critical for pump protection during valve closure
- Skipping Strainers
- Install 40-mesh filter upstream to prevent debris jams
Installation & Maintenance Tips
- Orientation Matters
- Stem vertical → prevents stem seal wear
- Pipe Support
- Brace within 12" of valve (prevents stress cracks)
- Annual Service
- Lubricate stem (food-grade grease for water systems)
- Check actuator calibration
Cost Guide (Materials Only)
| Valve Type | Price Range | Lifespan |
|---|---|---|
| Manual Brass | $35 – $90 | 5-10 years |
| Solenoid Stainless | $120 – $300 | 3-7 years |
| Motorized Smart | $250 – $600 | 10-15 years |
| Eagle Heavy-Duty | $180 – $400 | 15+ years (industry use) |
Conclusion
Controlling a 3-way valve hinges on matching its function (mixing or diverting) with the right operation method. Manual valves suit infrequent adjustments, while automated motorized types excel in precision temperature control. For reliability in demanding systems, Eagle's clog-resistant designs with position feedback prevent costly downtime.
