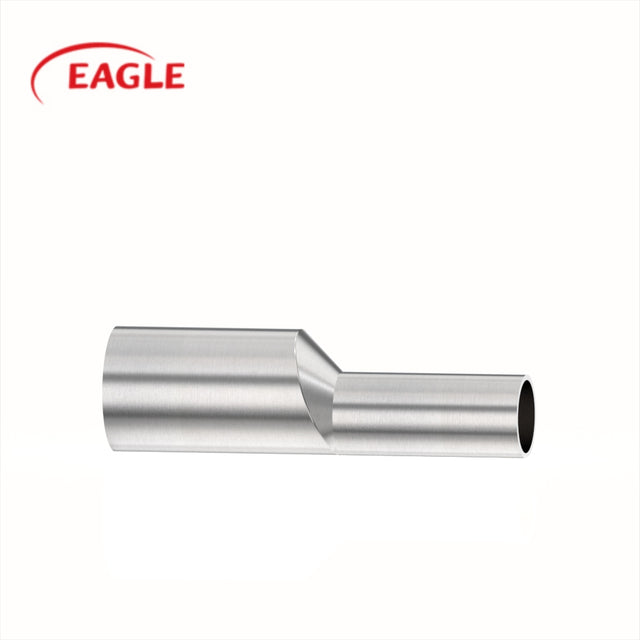

EAGLE ™ BPE DT-11 Butt-Weld Long Eccentric Reducer
Free shipping
On all orders over $199
Special offers
Regular sales and discounts
Easy returns
Hassle free returns policy
Chat facility
Talk to a real person
The polished butt weld eccentric reducer is available in 316L stainless steel alloy. Butt weld ends accommodate the joining of two separate tube lines of different sizes. Stainless steel material is resistant to corrosion and can withstand high temperatures. This product is 3A certified for process line applications in the pharmaceutical industry.
Size |
Dimensions A in. A mm |
|
|
|
|
3/8 × 1/4 |
4.000 |
101.6 |
1/2 × 1/4 |
4.000 |
101.6 |
1/2 × 3/8 |
4.000 |
101.6 |
3/4 × 3/8 |
4.000 |
101.6 |
3/4 × 1/2 |
4.000 |
101.6 |
*1 × 1/2 |
4.500 |
114.3 |
*1 × 3/4 |
4.000 |
101.6 |
11/2 × 3/4 |
5.000 |
127.0 |
11/2 × 1 |
5.000 |
127.0 |
2 × 1 |
7.250 |
184.2 |
2 × 11/2 |
5.250 |
133.4 |
21/2 × 11/2 |
7.250 |
184.2 |
21/2 × 2 |
5.500 |
139.7 |
3 × 11/2 |
9.250 |
235.0 |
3 × 2 |
7.500 |
190.5 |
3 × 21/2 |
5.500 |
139.7 |
4 × 2 |
11.750 |
298.5 |
4 × 21/2 |
9.750 |
247.7 |
4 × 3 |
7.750 |
196.9 |
6 × 3 |
9.750 |
247.7 |
6 × 4 |
10.000 |
254.0 |
About Egle
ASME BPE range includes a comprehensive selection of tubes and fittings of varying dimensions and executions all compliant with ASME BPE standards. Made for safe and easy installation, its high quality and good weldability meet the standards of biopharmaceutical industries.
The polished butt weld eccentric reducer is available in 316L stainless steel alloy. Butt weld ends accommodate the joining of two separate tube lines of different sizes. Stainless steel material is resistant to corrosion and can withstand high temperatures. This product is 3A certified for process line applications in the pharmaceutical industry.
Size |
Dimensions A in. A mm |
|
|
|
|
3/8 × 1/4 |
4.000 |
101.6 |
1/2 × 1/4 |
4.000 |
101.6 |
1/2 × 3/8 |
4.000 |
101.6 |
3/4 × 3/8 |
4.000 |
101.6 |
3/4 × 1/2 |
4.000 |
101.6 |
*1 × 1/2 |
4.500 |
114.3 |
*1 × 3/4 |
4.000 |
101.6 |
11/2 × 3/4 |
5.000 |
127.0 |
11/2 × 1 |
5.000 |
127.0 |
2 × 1 |
7.250 |
184.2 |
2 × 11/2 |
5.250 |
133.4 |
21/2 × 11/2 |
7.250 |
184.2 |
21/2 × 2 |
5.500 |
139.7 |
3 × 11/2 |
9.250 |
235.0 |
3 × 2 |
7.500 |
190.5 |
3 × 21/2 |
5.500 |
139.7 |
4 × 2 |
11.750 |
298.5 |
4 × 21/2 |
9.750 |
247.7 |
4 × 3 |
7.750 |
196.9 |
6 × 3 |
9.750 |
247.7 |
6 × 4 |
10.000 |
254.0 |
