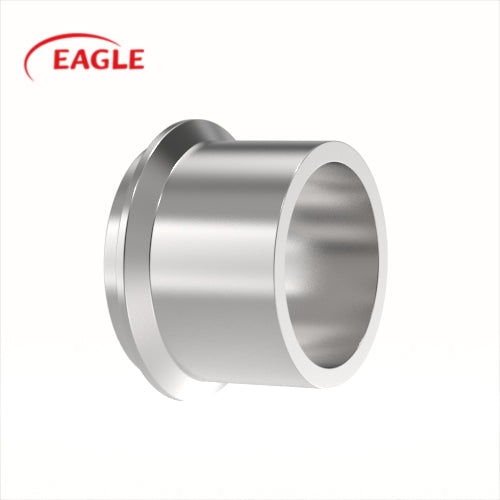

EAGLE™ I-Line 14WHI Male Heavy Wall Tank Weld Ferrule
Free shipping
On all orders over $199
Special offers
Regular sales and discounts
Easy returns
Hassle free returns policy
Chat facility
Talk to a real person
Male long weld heavy-wall ferrule fittings provide a leak-resistant seal, joining two separate tube fitting components. Circular welding is required to join this ferrule to one tube connection. Available in both 304 and 316L Stainless Steel alloys, providing both strength and durability. This product is 3A certified for use inline process applications where sanitary conditions are a requirement.
NO. |
Size |
A |
B |
C |
|||
inch |
mm |
inch |
mm |
inch |
mm |
||
5313 0100 |
1" |
1.312 |
33.3 |
0.87 |
22.1 |
1.25 |
31.7 |
5313 0150 |
1.5" |
1.457 |
37.0 |
1.37 |
34.8 |
1.688 |
42.9 |
5313 0200 |
2" |
1.5 |
38.1 |
1.87 |
47.5 |
2.25 |
57.1 |
5313 0250 |
2.5" |
1.437 |
36.5 |
2.37 |
60.2 |
2.75 |
69.8 |
5313 0300 |
3" |
1.5 |
38.1 |
2.87 |
72.9 |
3.313 |
84.1 |
5313 0400 |
4" |
1.812 |
46.0 |
3.834 |
97.4 |
4.25 |
107.9 |
About Egle
ASME BPE range includes a comprehensive selection of tubes and fittings of varying dimensions and executions all compliant with ASME BPE standards. Made for safe and easy installation, its high quality and good weldability meet the standards of biopharmaceutical industries.
Male long weld heavy-wall ferrule fittings provide a leak-resistant seal, joining two separate tube fitting components. Circular welding is required to join this ferrule to one tube connection. Available in both 304 and 316L Stainless Steel alloys, providing both strength and durability. This product is 3A certified for use inline process applications where sanitary conditions are a requirement.
NO. |
Size |
A |
B |
C |
|||
inch |
mm |
inch |
mm |
inch |
mm |
||
5313 0100 |
1" |
1.312 |
33.3 |
0.87 |
22.1 |
1.25 |
31.7 |
5313 0150 |
1.5" |
1.457 |
37.0 |
1.37 |
34.8 |
1.688 |
42.9 |
5313 0200 |
2" |
1.5 |
38.1 |
1.87 |
47.5 |
2.25 |
57.1 |
5313 0250 |
2.5" |
1.437 |
36.5 |
2.37 |
60.2 |
2.75 |
69.8 |
5313 0300 |
3" |
1.5 |
38.1 |
2.87 |
72.9 |
3.313 |
84.1 |
5313 0400 |
4" |
1.812 |
46.0 |
3.834 |
97.4 |
4.25 |
107.9 |
