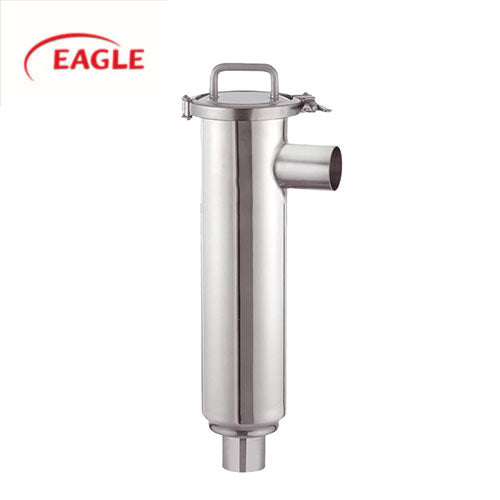

EAGLE™ 3A Stainless Steel Angular Filter Weld/Clamp
Free shipping
On all orders over $199
Special offers
Regular sales and discounts
Easy returns
Hassle free returns policy
Chat facility
Talk to a real person
Sanitary filter is a improved small tube strainer which can remove a small amount of solid particles in the liquid, also can protect compressor, pump, instruments and other equipment to work normally.
Weld |
|||||
Size |
ØD |
ØD1 |
K |
H |
L |
1" |
25.4 |
76 |
76 |
249 |
344 |
1½" |
38.1 |
76 |
76 |
249 |
344 |
2" |
50.8 |
89 |
89 |
264 |
369 |
2½ |
63.5 |
101.6 |
101.6 |
330 |
460 |
3" |
76.2 |
114.3 |
114.3 |
365 |
510 |
4" |
101.6 |
140 |
140 |
470 |
640 |
Clamp |
|||||
Size |
ØD |
ØD1 |
K |
H |
L |
1" |
50.5 |
76 |
88.7 |
261.7 |
356.7 |
1½" |
50.5 |
76 |
88.7 |
261.7 |
356.7 |
2" |
64.0 |
89 |
101.7 |
276.7 |
381.7 |
2½ |
77.5 |
101.6 |
114.3 |
342.7 |
472.7 |
3" |
91.0 |
114.3 |
127 |
377.5 |
522.7 |
4" |
119.0 |
140 |
156 |
486 |
656 |
Mesh equiv. |
B (mm) |
Useful surface (%) |
30 |
0.55 |
48 |
40 |
0.40 |
46 |
60 |
0.30 |
52.6 |
80 |
0.20 |
42 |
100 |
0.15 |
36.2 |
165 |
0.10 |
45.4 |
A (mm) |
Useful surface (%) |
0.5 |
15 |
1 |
28 |
1.5 |
33 |
2 |
30 |
3 |
33 |
5 |
46 |
Mesh equiv. |
B (mm) |
Useful surface (%) |
30 |
0.55 |
48 |
40 |
0.40 |
46 |
60 |
0.30 |
52.6 |
80 |
0.20 |
42 |
100 |
0.15 |
36.2 |
165 |
0.10 |
45.4 |
About Egle
ASME BPE range includes a comprehensive selection of tubes and fittings of varying dimensions and executions all compliant with ASME BPE standards. Made for safe and easy installation, its high quality and good weldability meet the standards of biopharmaceutical industries.
Sanitary filter is a improved small tube strainer which can remove a small amount of solid particles in the liquid, also can protect compressor, pump, instruments and other equipment to work normally.
Weld |
|||||
Size |
ØD |
ØD1 |
K |
H |
L |
1" |
25.4 |
76 |
76 |
249 |
344 |
1½" |
38.1 |
76 |
76 |
249 |
344 |
2" |
50.8 |
89 |
89 |
264 |
369 |
2½ |
63.5 |
101.6 |
101.6 |
330 |
460 |
3" |
76.2 |
114.3 |
114.3 |
365 |
510 |
4" |
101.6 |
140 |
140 |
470 |
640 |
Clamp |
|||||
Size |
ØD |
ØD1 |
K |
H |
L |
1" |
50.5 |
76 |
88.7 |
261.7 |
356.7 |
1½" |
50.5 |
76 |
88.7 |
261.7 |
356.7 |
2" |
64.0 |
89 |
101.7 |
276.7 |
381.7 |
2½ |
77.5 |
101.6 |
114.3 |
342.7 |
472.7 |
3" |
91.0 |
114.3 |
127 |
377.5 |
522.7 |
4" |
119.0 |
140 |
156 |
486 |
656 |
Mesh equiv. |
B (mm) |
Useful surface (%) |
30 |
0.55 |
48 |
40 |
0.40 |
46 |
60 |
0.30 |
52.6 |
80 |
0.20 |
42 |
100 |
0.15 |
36.2 |
165 |
0.10 |
45.4 |
A (mm) |
Useful surface (%) |
0.5 |
15 |
1 |
28 |
1.5 |
33 |
2 |
30 |
3 |
33 |
5 |
46 |
Mesh equiv. |
B (mm) |
Useful surface (%) |
30 |
0.55 |
48 |
40 |
0.40 |
46 |
60 |
0.30 |
52.6 |
80 |
0.20 |
42 |
100 |
0.15 |
36.2 |
165 |
0.10 |
45.4 |
OD Size
