EAGLE™ ASTM A270 Stainless Steel Tubing (40″ Precut)

$83.40

Size OD

Grade

Product variants

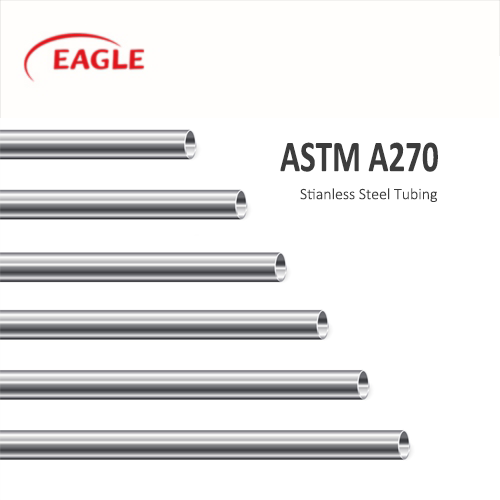

Sanitary ASTM A270 Tubing for Food, Beverage and Dairy Process Lines (40″ Precut)

Bright Annealed Polished Sanitary Tubing ASTM A270
Available in 316L Stainless Steel
Stamped with Heat Lot Number
Manufactured in accordance with 3A Standards for sanitary line process requirements

Polished stainless steel sanitary tubing is precisely manufactured in accordance with ASTM A270 standards. Moreover, our tubing stands out as it is meticulously crafted from cold-rolled stainless steel strip. This strip is chosen with utmost care, and its chemical elements expertly controlled to optimize weldability. Furthermore, the weld bead undergoes extensive cold-working until it achieves a fully finished state, resulting in an almost imperceptible longitudinal weld.

The manufacturing process culminates in a crucial step: bright annealing. This step is meticulously conducted within a controlled atmosphere to ensure the preservation of maximum structural integrity. This meticulous process guarantees not only a polished exterior but also unwavering performance and durability.

Dimension of ASTM A270

Tube OD	Nominal Wall Thickness (inches)	Gage Number	Wt. Pounds per Ft.

½"	0.065	16	0.31

¾"	0.065	16	0.49
1"	0.065	16	0.67
1½"	0.065	16	1.02
2"	0.065	16	1.36

2½"	0.065	16	1.71
3"	0.065	16	2.06
4"	0.083	14	3.45
6"	0.109	12	6.92

Operating Pressure

304 Stianless Steel Tube (ASTM A270 Tubing)

Tube OD Size	Nominal Wall Thickness (inches)	Pressure (PSI)
		working	yield	burst
½"	0.065	4,870	7,800	19,500
¾"	0.065	3,250	5,200	13,000
1"	0.065	2,440	3,900	9,800
1½"	0.065	1,630	2,600	6,500
2"	0.065	1,220	2,000	4,900
2½"	0.065	980	1,600	3,900
3"	0.065	810	1,300	3,300
4"	0.083	780	1,200	3,100
6"	0.109	680	1,090	2,720

The pressures shown in the table above are calculated using Barlow's Formula and the following properties:
• material: 304
• yield strength (PSI): 30,000
• tensile strength (PSI): 75,000
Working Pressure = ¼ of Burst Pressure, these calculate from -20°F to 100°F.

316L Stianless Steel Tube (ASTM A270 Tubing)

Tube OD Size	Nominal Wall Thickness (inches)	Pressure (PSI)
		working	yield	burst
½"	0.065	3,250	6,500	19,500
¾"	0.065	2,167	4,330	13,000
1"	0.065	2,280	3,300	9,100
1½"	0.065	1,520	2,200	6,100
2"	0.065	1,140	1,600	4,600
2½"	0.065	910	1,300	3,600
3"	0.065	760	1,100	3,000
4"	0.083	730	1,000	2,900
6"	0.109	635	900	2,540

The pressures shown in the table above are calculated using Barlow's Formula and the following properties:
• material: 316L
• yield strength (PSI): 25,000
• tensile strength (PSI): 70,000
Working Pressure = ¼ of Burst Pressure, these calculate from
-20°F to 100°F.

Note: Stainless Steel Pipe size and Tube OD size materials are not interchangable.

Dimensional Tolerances

Size OD	Tolerances, OD	Wall thickness	Tolerances on wall thickness a)	Tolerances on Length	Weight Kg/M
1/2" (12.7)	+/-0.005" (0.13)	0.065" (1.65)	+/-10.0%	+1/8" (3.18)	0.4571
3/4" (19.1)	+/-0.005" (0.13)	0.065" (1.65)	+/-10.0%	+1/8" (3.18)	0.7218
1" (25.4)	+/-0.005" (0.13)	0.065" (1.65)	+/-10.0%	+1/8" (3.18)	0.9824
1-1/4" (31.8)	+/-0.008" (0.20)	0.065" (1.65)	+/-10.0%	+1/8" (3.18)	1.2412
1-1/2" (38.1)	+/-0.008" (0.20)	0.065" (1.65)	+/-10.0%	+1/8" (3.18)	1.5078
2" (50.8)	+/-0.008" (0.20)	0.065" (1.65)	+/-10.0%	+1/8" (3.18)	2.0331
2-1/2" (63.5)	+/-0.010" (0.25)	0.065" (1.65)	+/-10.0%	+1/8" (3.18)	2.5585
3" (76.2)	+/-0.010" (0.25)	0.065" (1.65)	+/-10.0%	+1/8" (3.18)	3.0797
4" (101.6)	+/-0.015" (0.38)	0.065" (1.65)	+/-10.0%	+1/8" (3.18)	5.2628
6" (152.4)	+/-0.030" (0.76)	0.083" (2.11)	+/-10.0%	+3/16" (4.8)	7.9116
6" (152.4)	+/-0.030" (0.76)	0.109" (2.77)	+/-10.0%	+3/16" (4.8)	10.3909
8" (203.2)	+0.061" (1.55) - 0.031" (0.79)	0.109" (2.77)	+/-10.0%	+3/16" (4.8)	13.9166

***Uniform wall thickness for 1/2" through 3" size measure.065(16ga). In 4"Size, wall thickness measures .083(14ga),6" and 8" .109(12ga).

Chemical Composition

ASTM A270 tubing in sanitary steel grades 304 and 316L. In food and beverage processing environments, equipment comes into contact with a variety of substances, including acidic or alkaline solutions, salts, and cleaning agents.

Elements		304 (wt%)	304L (wt%)	316L (wt%)
(C)	Carbon, Max.	0.080	0.035	0.035
(Mn)	Manganese, Max.	2.00	2.00	2.00
(P)	Phosphorus, Max.	0.040	0.040	0.040
(S)	Sulfur, Max.	0.030	0.030	0.030**
(Si)	Silicon, Max.	0.75	0.75	0.75
(Ni)	Nickel	8.0–11.0	8.0–13.0	10.0–15.0
(Cr)	Chromium	18.0–20.0	18.0–20.0	16.0–18.0
(Mo)	Molybdenum	N/A	N/A	2.0–3.0
(Fe)	Iron	Bal.	Bal.	Bal.
(Cu)	Copper	N/A	N/A	N/A
(N)	Nitrogen	N/A	N/A	N/A
