Imagine a biotech lab where scientists spend months developing a life-saving cell therapy. The final step? Transferring the delicate solution into vials. If even a single bacterium sneaks into the process, the entire batch is ruined—costing millions and delaying patient access. That’s where the aseptic diaphragm valve comes in. More than just a flow control device, it’s a sterility gatekeeper, designed to keep even microscopic contaminants out of critical processes. But what exactly makes an aseptic diaphragm valve different from a standard sanitary valve? And why is it non-negotiable in industries like pharma, biotech, and high-purity food production?
What Is an Aseptic Diaphragm Valve?
An aseptic diaphragm valve is a specialized type of flow control valve engineered to maintain absolute sterility in fluid handling systems. Unlike standard sanitary diaphragm valves (which focus on cleanliness for food/beverage), aseptic valves take sterility a step further: they prevent any microbial contamination, even at the microscopic level, by isolating the product from the valve’s mechanical components and eliminating hidden crevices where bacteria could thrive.
Think of it as the “operating room” of valves—where every surface, material, and movement is designed to keep the “patient” (your product) 100% sterile, no matter how aggressive the process (high temperatures, pressure, or frequent cleaning).
How Does an Aseptic Diaphragm Valve Work? The Sterility Secret
At its core, the aseptic diaphragm valve’s magic lies in two key design principles: isolation and self-drainage. Here’s a step-by-step breakdown of its operation:
1. The Diaphragm: Your Product’s Sterile Barrier
The star component is the flexible diaphragm (typically made of PTFE or ETFE), which acts as a physical barrier between the product flow path and the valve’s actuator (the part that opens/closes the valve). When the valve is closed, the diaphragm presses tightly against a smooth “weir” or “seat,” creating a hermetic seal. When opened, the diaphragm lifts, allowing product to flow—never letting the product touch the actuator, springs, or other mechanical parts that could harbor bacteria.
2. No Dead Legs, No Hiding Spots
Aseptic valves are engineered with deadleg-free designs: every surface in the flow path is smooth (Ra ≤ 0.8μm, often electropolished), with no threads, gaps, or crevices where product or cleaning fluid could pool. Even the smallest dead leg (a gap as tiny as 0.8mm) can trap bacteria, so aseptic valves use continuous, curved transitions between the inlet, outlet, and diaphragm seat.
3. CIP/SIP Compatibility: Sterilizing Without Disassembly
To maintain sterility between batches, aseptic valves must withstand aggressive Clean-in-Place (CIP) and Sterilize-in-Place (SIP) cycles:
- CIP: High-pressure (up to 80 bar) hot water or caustic solutions flush the valve’s flow path, removing residue.
- SIP: Saturated steam (121–134°C at 1–2 bar) sterilizes the valve for 30–60 minutes, killing all microbes.
The diaphragm and seat are designed to expand slightly under steam, ensuring no steam “blind spots,” while materials like PTFE and 316L stainless steel resist degradation from heat and chemicals.
4. Actuation: Precision Without Contamination
Aseptic valves use actuation systems (manual, pneumatic, or electric) that never breach the sterile barrier. Pneumatic actuators, for example, use compressed air to lift the diaphragm—with the air chamber separated from the product path by a secondary seal. Electric actuators, often used in biotech, offer programmable control for precise flow rates, critical for sensitive processes like cell culture feeding.
Key Features of Aseptic Diaphragm Valves: What Makes Them “Aseptic”?
Not all “sanitary” valves are aseptic. Here are the non-negotiable features that define true aseptic diaphragm valves:
1. Materials: Sterility Starts with What It’s Made Of
- Body: 316L stainless steel (not 304), which has higher chromium and molybdenum content for superior corrosion resistance—critical for acidic products (like pharmaceutical buffers) or aggressive CIP chemicals.
- Diaphragm: PTFE (Teflon) or ETFE (a PTFE copolymer) for chemical inertness, heat resistance (-20°C to 260°C), and zero leaching. Some valves use “multi-layer” diaphragms (PTFE outer, EPDM inner) for flexibility and durability.
- Seals/Gaskets: Silicone-free (to avoid particle shedding), often made of perfluoroelastomers (FFKM) for high-temperature SIP compatibility.
2. Certifications: Proof of Sterility
Aseptic valves must meet the strictest global standards to be trusted in sterile processes:
- FDA 21 CFR Part 177: Confirms materials are safe for food/drug contact, with no leachable toxins.
- EHEDG (European Hygienic Engineering & Design Group): Validates the valve’s design prevents microbial growth (certified via EHEDG Document 8 tests for cleanability).
- 3-A Sanitary Standards: Mandatory for dairy and food applications, ensuring easy disassembly and no dead legs.
- ISO 13485: For medical device manufacturing, ensuring the valve is produced under a quality management system focused on sterility.
3. Actuation & Control: Precision for Sensitive Processes
- Manual Actuation: Rare in large-scale aseptic processes but used in small labs for low-volume, manual filling.
- Pneumatic Actuation: Most common in pharma/biotech—fast (response time <0.5 seconds), reliable, and compatible with cleanroom environments (no oil-lubricated parts).
- Electric Actuation: Ideal for processes needing precise flow control (e.g., dosing cell culture media) or integration with automation systems (Industry 4.0).
4. Sealing Technology: Zero Tolerance for Leaks
Aseptic valves use bubble-tight sealing: when closed, they can hold a vacuum (≤1 mbar) without leaking, ensuring no air (and thus no contaminants) enter the system. Some advanced models use “double-seat” diaphragms, where a secondary seal triggers an alarm if the primary seal fails—critical for high-risk products like vaccines.
Applications: Where Aseptic Diaphragm Valves Are Non-Negotiable
Aseptic valves aren’t just for “clean” industries—they’re for industries where a single microbe could ruin a batch, trigger a recall, or even harm patients. Here are their top use cases:
Pharmaceuticals: Protecting Life-Saving Drugs
- Injectables & Vaccines: Aseptic valves control the flow of sterile solutions (e.g., mRNA vaccine components) during filling, ensuring no contamination in products that bypass the body’s natural defenses (like injections).
- Biologics: For monoclonal antibodies (mAbs), cell therapies, or gene therapies—products derived from living cells, which are highly sensitive to microbial contamination.
Biotech: Growing Pure Cultures
- Cell Culture & Fermentation: Valves regulate nutrient feeds, pH adjusters, and harvest flows in bioreactors, where even a single bacterium could overtake a cell culture.
- Purification: In downstream processing (chromatography, filtration), aseptic valves maintain sterility while separating target molecules (e.g., insulin) from impurities.
Food & Beverage: Ultra-Pure Products
- Baby Food & Infant Formula: Where even low levels of bacteria (like Cronobacter) can be fatal to infants.
- Ultra-High Temperature (UHT) Milk/Juices: Aseptic valves control flow in systems that sterilize products at 135°C for 2–5 seconds, then package them in sterile containers for long shelf life.
Cosmetics & Personal Care: Sterility for Sensitive Skin
- Preservative-Free Cosmetics: Products like serums or eye drops that lack preservatives rely on aseptic processing to avoid mold or bacterial growth.

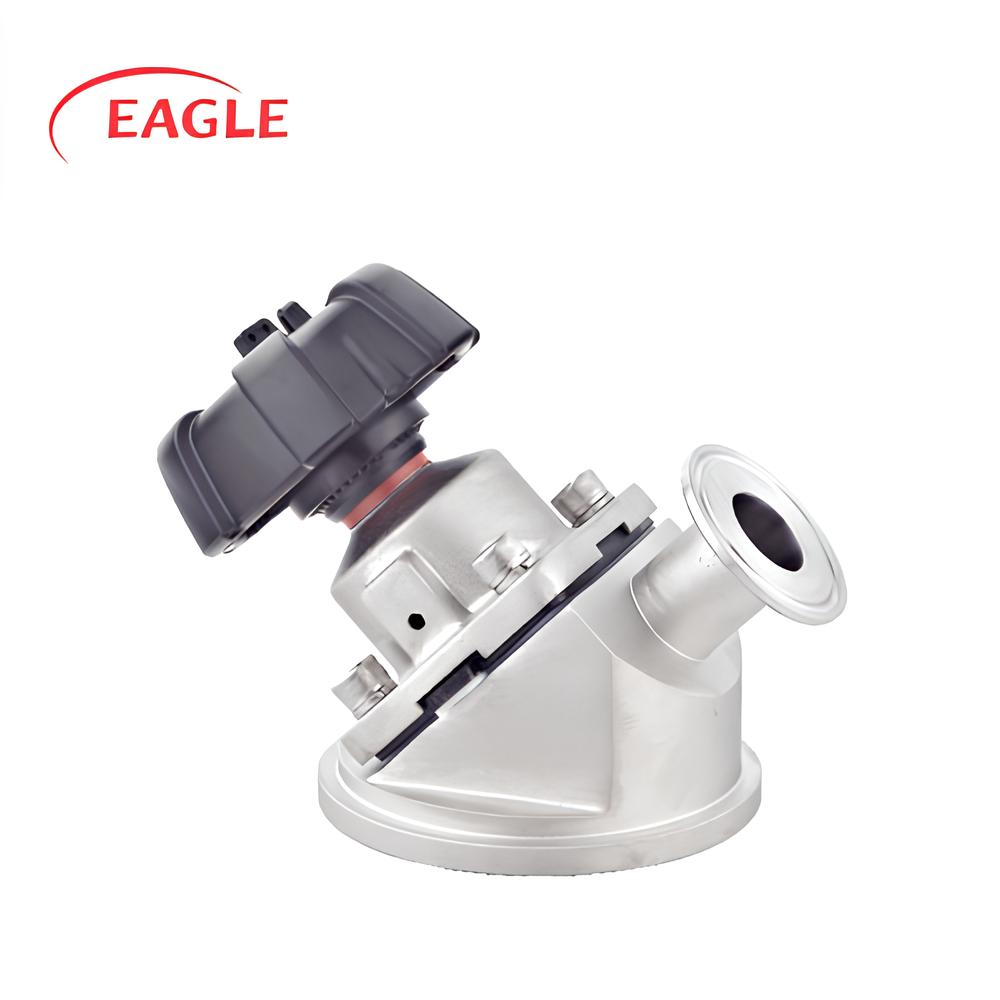

Eagle Sanitary Diaphragm Valves: Aseptic Quality at a Competitive Price
For facilities balancing strict sterility requirements with budget constraints, Eagle Sanitary Diaphragm Valves offer a compelling solution. While not exclusively “aseptic” (they also serve standard sanitary markets), Eagle’s aseptic-grade models stand out for:
- Comprehensive Specifications: Available in sizes ½” to 4” (DN15 to DN100), with weir or full-bore designs, PTFE/ETFE diaphragms, and pneumatic/electric actuation options to match any aseptic process.
- Certifications You Can Trust: 3-A, FDA 21 CFR Part 177, and EHEDG certified—ensuring compliance in global markets, from the U.S. to the EU.
- Price Advantage: Compared to premium brands (like Alfa Laval or Bürkert), Eagle offers 15–25% lower costs, making them ideal for mid-sized pharma companies, biotech startups, or food processors scaling up aseptic lines without sacrificing quality.
Whether you’re filling vials of cancer treatments or processing baby food, Eagle’s aseptic diaphragm valves deliver the sterility, reliability, and value that modern sterile industries demand.
How to Choose the Right Aseptic Diaphragm Valve: Quick Checklist
- Define Your Product’s Sensitivity: Is it injectable (highest sterility need) or UHT milk (high but less critical)?
- Check Materials: Ensure 316L stainless steel body and PTFE/ETFE diaphragm for your product’s chemistry.
- Verify Certifications: EHEDG and FDA are non-negotiable for pharma/biotech; 3-A for food.
- Match Actuation to Scale: Pneumatic for high-volume lines, electric for precision dosing.
- Prioritize Cleanability: Ask for EHEDG cleanability test reports to confirm no dead legs.
Final Thoughts: Aseptic Valves—The Guardians of Sterility
In a world where a single microbe can derail a $100 million drug batch or harm a vulnerable patient, the aseptic diaphragm valve isn’t just a component—it’s a promise of purity. By combining advanced materials, rigorous certifications, and contamination-proof design, these valves ensure that sterile processes stay sterile, from lab to patient. And for companies needing that promise without breaking the bank, Eagle’s sanitary diaphragm valves prove that quality and affordability can go hand in hand.
After all, in aseptic processing, “good enough” isn’t enough. You need a valve that’s built for sterility—and peace of mind.
