Ever walked into a commercial kitchen and wondered how all those pipes stay clog-free, even with constant grease and food scraps? Or toured a brewery and noticed the smooth, curved pipe junctions that keep beer flowing without trapping sediment? Chances are, those systems rely on a humble but critical component: the sanitary tee.
In plumbing and industrial systems—especially food, dairy, and pharmaceutical—sanitary tees aren’t just “T-shaped pipes.” They’re precision-engineered fittings that control flow, prevent blockages, and keep products pure. But with so many types (stainless steel vs. PVC, straight vs. reducing, wye vs. combo tee), how do you know which one to choose? This guide breaks it all down: what a sanitary tee is, why it matters, key types, common uses, and how Eagle’s sanitary tees stand out for quality and compliance.

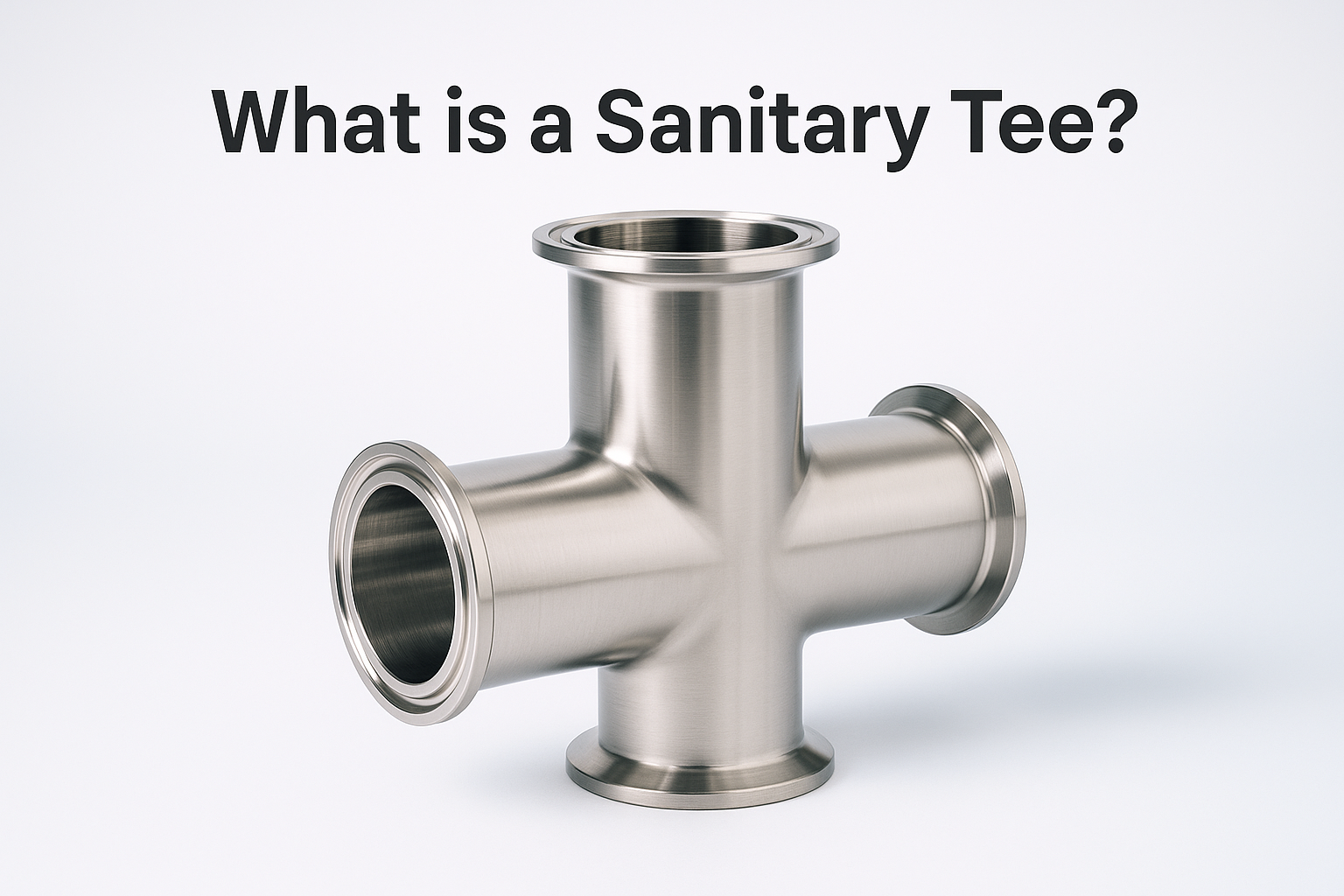

What is a Sanitary Tee?
At its core, a sanitary tee is a T-shaped pipe fitting designed to connect a branch line to a main pipeline in sanitary systems. Unlike standard plumbing tees (which often have sharp angles or rough interiors), sanitary tees feature smooth, curved interiors and precise dimensions to minimize turbulence, reduce bacterial buildup, and ensure easy cleaning.
Think of it as the “traffic cop” of your pipeline: it directs flow from the main line to a branch (or vice versa) without creating dead zones where debris or microbes can hide. This is critical in industries like food processing, where even a tiny blockage can lead to contamination, downtime, or compliance fines.
Why Sanitary Tees Matter: More Than Just a Pipe Fitting
You might be thinking, “Can’t I just use a regular tee?” In a word: no. Sanitary tees are non-negotiable in systems where hygiene and flow efficiency are priorities. Here’s why:
- Prevents Blockages: Their curved center section (instead of a sharp 90-degree angle) lets solids and liquids flow smoothly, reducing clogs from food particles, pharmaceutical slurries, or dairy byproducts.
- Minimizes Contamination: Ultra-smooth surfaces (often electropolished in stainless steel models) leave nowhere for bacteria to cling, making them ideal for FDA or 3-A compliant environments.
- Compliance-Friendly: Designed to meet strict standards like ASME BPE (bioprocessing) or 3-A Sanitary Standards, they keep your system audit-ready.
- Reduces Downtime: Fewer clogs and easier cleaning (no hidden crevices!) mean less time fixing issues and more time producing.
Key Uses of Sanitary Tees: Where They Shine
Sanitary tees are workhorses across industries, but these are their most critical roles:
1. Connecting Horizontal to Vertical Drains
In drainage systems (e.g., commercial kitchens, brewery cellars), sanitary tees link horizontal waste lines to vertical risers. The curved design ensures wastewater flows downward without pooling—unlike sharp-angled tees that trap solids.
2. Vent Line Connections
Plumbing vents (pipes that release sewer gases and equalize pressure) often use sanitary tees to connect waste arms to vent stacks. This maintains proper airflow, preventing gurgling drains or slow drainage.
3. Trap Connections
Beneath sinks, dishwashers, or processing tanks, traps (U-shaped pipes that hold water to block sewer gases) connect to main drains via sanitary tees. The tee’s smooth curve ensures the trap stays primed and functional.
4. Industrial Process Lines
In food, pharma, or biotech, sanitary tees split or merge product flows (e.g., diverting milk from a main line to a pasteurizer, or combining two streams of liquid medication). Their precision design avoids mixing turbulence that could damage sensitive products.
Types of Sanitary Tees: Which One Do You Need?
Sanitary tees come in dozens of configurations, but these are the most common—classified by size, material, and design:
By Pipe Diameter: Straight vs. Reducing Tees
- Straight Sanitary Tee: All three ports (main line in, main line out, branch) have the same diameter (e.g., 2” x 2” x 2”). Best for splitting or merging lines of equal size (e.g., dividing a 3” dairy line into two 3” branches).
- Reducing Sanitary Tee: The branch port has a smaller diameter than the main line (e.g., 3” x 3” x 1.5”). Ideal for connecting a smaller branch to a larger main line (e.g., a 1” sampling line off a 4” pharmaceutical process line).
By Material: Choosing for Your Fluid
Sanitary tees are made to withstand the fluids they carry—here are the top options:
- Stainless Steel Sanitary Tee: The gold standard for food, dairy, and pharma. 316L stainless steel resists corrosion from acids (e.g., citrus juices) and caustic cleaners (CIP solutions). Electropolished surfaces (Ra ≤ 0.8μm) ensure no bacterial hiding spots.
- PVC Sanitary Tee: Budget-friendly for non-corrosive, non-high-temperature applications (e.g., cold water lines, beverage rinsing systems). Lightweight but not ideal for frequent CIP/SIP cycles.
- Copper Sanitary Tee: Used in older plumbing systems or where heat transfer is needed (e.g., hot water lines in small dairies). Less common today due to stainless steel’s superiority in hygiene.
- Ductile Iron Sanitary Tee: Heavy-duty for industrial drainage (e.g., wastewater from food processing plants). Rarely used in direct product contact due to potential for rust.
By Connection Type: How They Attach to Pipes
- Butt-Welded Sanitary Tee: Ends are beveled for welding to pipes, creating a seamless, crevice-free joint. Perfect for high-pressure systems (e.g., pharmaceutical process lines) where leaks can’t risk contamination.
- Socket Weld Sanitary Tee: Pipes slide into socketed ends, then are welded. Easier to install than butt-welded tees, ideal for mid-pressure systems (e.g., brewery CIP lines).
- Threaded Sanitary Tee: Male/female threads for screw-on connections. Quick to install but not recommended for high hygiene (threads can trap bacteria). Best for low-pressure, non-critical lines (e.g., utility water).
- Tri-Clamp Sanitary Tee: Uses clamp-on connections with gaskets for tool-free assembly. The go-to for food and pharma—easy to disassemble for cleaning (CIP/SIP cycles) and inspection.
By Branch Form: Positive vs. Oblique Tees
- Positive Sanitary Tee: The branch exits the main line at a 90-degree angle. Used when the branch needs to run vertically (e.g., connecting a horizontal drain to a vertical vent stack).
- Oblique Sanitary Tee: The branch angles off at 45 degrees (or custom angles) to reduce turbulence. Common in systems with sensitive flows (e.g., biotech cell cultures where shear stress must be minimized).
The Two Critical Sanitary Tee Variations You Need to Know
Beyond basic tees, these two specialized types solve unique flow challenges:
1. Double Sanitary Tee (or Sanitary Cross)
A double sanitary tee has two branch ports (instead of one), each with a curved entrance to prevent cross-contamination. Historically used to connect back-to-back drains (e.g., two sinks sharing a vent), modern codes (like the 2006 Uniform Plumbing Code) restrict this—instead, use them to split a main line into two branches without turbulence.
2. Wye Fitting (Y Tee)
Wyes look like a “Y” instead of a “T,” with the branch angled at 45 degrees (not 90). This gentle slope reduces friction and solids buildup, making them perfect for connecting vertical drains to horizontal lines (e.g., a shower drain into a main waste line). If the angle is steeper (closer to 90 degrees), it’s called a “combo wye.” Wyes are a must in systems with heavy solids (e.g., restaurant grease traps, pulp and paper processing).
Common Mistakes to Avoid When Using Sanitary Tees
Even the best sanitary tee fails if misused. Watch for these pitfalls:
- Installing Upside Down: A tee with the curved section facing up (instead of down) will cause wastewater to splash backward, trapping solids and causing clogs. Always check the flow direction marked on the fitting.
- Using a 90-Degree Tee for Vertical-to-Horizontal Connections: This creates a “dead leg” where solids settle. Opt for a wye fitting instead—its 45-degree angle keeps flow smooth.
- Ignoring Certifications: In food/pharma, only use tees with 3-A, FDA, or EHEDG certifications. Non-certified tees may have rough surfaces or non-food-grade materials (e.g., leaded brass) that leach into products.
- Mismatched Materials: Using a PVC tee in a high-temperature CIP line (180°F+) will warp the plastic. Stick to stainless steel for heat or chemical exposure.
Eagle Sanitary Tees: Quality, Compliance, and Versatility
When it comes to reliable, hygienic sanitary tees, Eagle delivers solutions built for food, pharma, and industrial systems. Here’s why they stand out:
- Stainless Steel Expertise: Eagle’s 316L stainless steel sanitary tees are electropolished to Ra ≤ 0.8μm, with zero dead legs or sharp edges—ideal for FDA and 3-A compliant environments.
- Comprehensive Range: From ½” to 12” diameters, straight/reducing tees, tri-clamp/butt-weld connections, and wye/combo variations—Eagle has the right tee for every flow need.
- Certified for Safety: All tees meet ASME BPE, 3-A Sanitary Standards, and FDA 21 CFR Part 177, ensuring compliance in global markets.
- Durability You Can Trust: Designed to withstand repeated CIP/SIP cycles (steam up to 275°F) and corrosive cleaners, Eagle tees outlast cheaper alternatives by 3–5 years.
Final Thoughts: Choose the Right Sanitary Tee, Avoid Headaches
A sanitary tee might seem like a small part of your system, but it’s the difference between smooth operations and costly downtime. Whether you’re plumbing a craft brewery, installing a dairy processing line, or upgrading a pharma facility, prioritize:
- Material: Stainless steel for hygiene, PVC for budget non-critical lines.
- Connection: Tri-clamp for easy cleaning, butt-welded for high pressure.
- Angle: Wye for vertical-to-horizontal, positive tee for 90-degree branches.
And for tees that check all these boxes? Eagle’s got you covered.
Ready to upgrade your system? Start with the right sanitary tee—your pipes (and your bottom line) will thank you.
