Last month, Mia—process supervisor at a small biotech firm in Boston—stared at her lab notebook, heart sinking. A batch of her company’s injectable vitamin B12 had failed quality control: tiny particulate matter was found in the final vials. The root cause? She’d used a generic depth filter instead of a sterile membrane filter for the final filtration step. Mia realized she didn’t know the difference between pharma filter types—and that ignorance had cost her team weeks of work and thousands of dollars. If you’re a lab manager, production engineer, or pharma buyer struggling to pick the right pharmaceutical filters for your process, this guide is for you. We’ll break down the key filter types, their use cases, and how to choose the one that keeps your batches safe and compliant.
Quick Answer
The pharmaceutical industry relies on five core filter types to ensure product safety, process efficiency, and compliance:
- Sterile Filters: For final product sterilization (kills bacteria in injectables or IV fluids).
- Sanitary Stainless Steel Filters: Protects process equipment (pumps, compressors) from solid particles.
- Membrane Filters: Removes tiny contaminants (0.1–0.45μm) from liquids like cell culture media.
- Depth Filters: Pre-filters to extend the life of more expensive membrane/sterile filters.
- Activated Carbon Filters: Adsorbs organic impurities (endotoxins, colorants) from liquids or gases.
Each type serves a unique purpose—choosing the wrong one can lead to batch failures or equipment damage.
Key Filter Types in Pharmaceutical Industry
Let’s dive into each type with real-world use cases so you know exactly when to use them:
1. Sterile Filters
What they do: Remove or kill bacteria and fungi from final products (like injectables, eye drops, or IV solutions). They’re typically 0.22μm pore size (small enough to trap most microbes) and made of materials like polyethersulfone (PES) or cellulose acetate.
Use case: Mia now uses sterile filters for her injectable batches—they’re non-pyrogenic (no fever-causing toxins) and FDA-approved, so her products pass QC every time.
2. Sanitary Stainless Steel Filters
What they do: Protect process equipment (pumps, compressors, or instruments) from solid particles in liquid lines. They’re made of food-grade stainless steel (SS304/316L) and designed for easy cleaning (critical for GMP compliance).

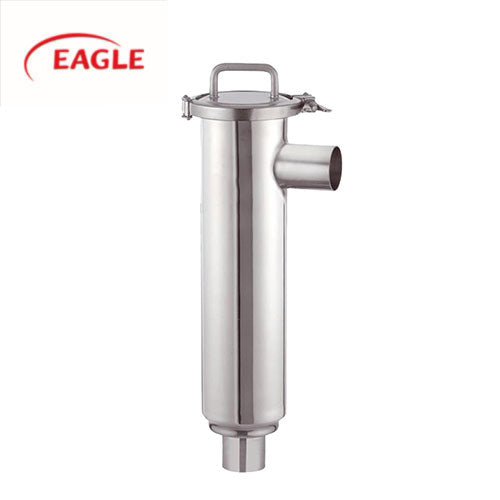

Pro Tip: For teams looking to safeguard their process lines, the Eagle 3A Stainless Steel Straight Filter is a reliable choice. Made of SS304 or 316L with a mirror polish (Ra 0.4μm—no bacteria buildup), it handles pressures up to 10 bar and temperatures from -10°C to 120°C. Its EPDM seals (or options like silicone or FPM) work with most pharma liquids, and it acts as an improved tube strainer to catch small solids before they damage expensive equipment. Mia installed these in her liquid transfer lines—her pump downtime dropped by 30% in the first month.
3. Membrane Filters
What they do: Remove tiny particles (0.1–0.45μm) from liquids or gases. They’re thin, porous films (PES, nylon, or PVDF) and ideal for precision applications like buffer preparation or cell culture media filtration.
Use case: A vaccine manufacturer uses PVDF membrane filters to remove cell debris from their viral vector solution.
4. Depth Filters
What they do: Pre-filters that trap larger particles (1–10μm) from liquids. Made of thick, porous materials (cellulose, diatomaceous earth), they extend the life of more expensive sterile/membrane filters by reducing their workload.
Use case: A generic drug maker uses depth filters to pre-filter raw material solutions before sending them to membrane filters.
5. Activated Carbon Filters
What they do: Adsorb organic impurities (endotoxins, colorants, or residual solvents) from liquids or gases. They’re made of activated carbon granules and used in purification steps for oral drugs or API (Active Pharmaceutical Ingredient) manufacturing.
Use case: A herbal supplement company uses activated carbon filters to remove brown colorants from their liquid extract.
Buyer’s Guide: How to Choose the Right Pharmaceutical Filter
Before buying, ask these three questions:
- What’s your process step? Use sterile filters for final products, stainless steel filters for equipment protection, and depth filters for pre-filtration.
- What certifications do you need? Look for 3A (sanitary), FDA (food/pharma), or ISO 9001 (quality) certifications to ensure compliance.
- What’s your product compatibility? Choose filter materials (like SS316L or PES) that don’t react with your product (e.g., avoid plastic filters for corrosive APIs).
Mia’s Success Story
After updating her filter strategy—adding depth pre-filters, sterile final filters, and Eagle’s stainless steel line filters—Mia’s biotech firm hasn’t had a batch failure in three months. Her team saves 15 hours weekly on equipment maintenance, and her injectable batches consistently meet FDA standards. “I used to think all filters were the same,” she says. “Now I know picking the right type is the difference between success and disaster.”
Final Takeaway
Pharmaceutical filters aren’t just “parts”—they’re your first line of defense against batch failures and equipment damage. By understanding the key types and their use cases, you can keep your process compliant, efficient, and cost-effective. For equipment protection, don’t overlook options like Eagle’s 3A Stainless Steel Straight Filter—it’s a small investment that pays off in reduced downtime and peace of mind.
