Three way valves are unsung heroes in fluid control systems—found in HVAC, industrial processes, and even medical equipment. Whether you’re troubleshooting a heating system or designing a new pipeline, understanding how these valves work is key to optimizing performance, reducing energy waste, and avoiding costly repairs.
In this guide, we’ll demystify the three way valve: how it directs, mixes, or diverts fluids; the differences between its main types; and real-world applications. We’ll also touch on why Eagle, a trusted name in fluid control solutions, is a go-to choice for reliable, durable three way valves—without overshadowing the technical insights you need.
What is a Three Way Valve? Core Components and Basic Function
A three way valve is a mechanical device with three ports (inlets/outlets) designed to control the flow of liquids or gases. Unlike two-way valves (which simply open/close), three way valves manage fluid paths by directing flow between ports—either mixing two inputs into one output or splitting one input into two outputs.
Key Components
All three way valves share these core parts:
- Valve body: The outer shell, typically made of brass, stainless steel, or plastic, housing internal components.
- Valve core (spool or ball): A movable element that shifts to open/close ports.
- Actuator: Manual (handwheel), electric, pneumatic, or hydraulic device that moves the core to adjust flow.
Basic Working Principle
At its simplest, a three way valve works by positioning the core to block or connect ports. For example:
- When the core is in Position A, Port 1 connects to Port 2, blocking Port 3.
- When shifted to Position B, Port 1 connects to Port 3, blocking Port 2.
- Some valves allow partial positioning, mixing flows from Ports 2 and 3 into Port 1 (or vice versa).
This flexibility makes three way valves ideal for systems needing dynamic flow control.
Three Way Valve Types: Diverting, Mixing, and More
Not all three way valves are created equal. Their design depends on the application—here are the most common types:
1. Diverting Three Way Valve
- Function: Takes one inlet (Port 1) and directs flow to either Port 2 or Port 3 (but not both).
- Use case: HVAC systems where hot/cold water needs switching between zones (e.g., directing boiler water to Room A or Room B).
2. Mixing Three Way Valve
- Function: Combines two inlets (Ports 2 and 3) into one outlet (Port 1).
- Use case: Industrial processes requiring precise temperature control (e.g., mixing hot and cold water to achieve a target temp for a manufacturing line).

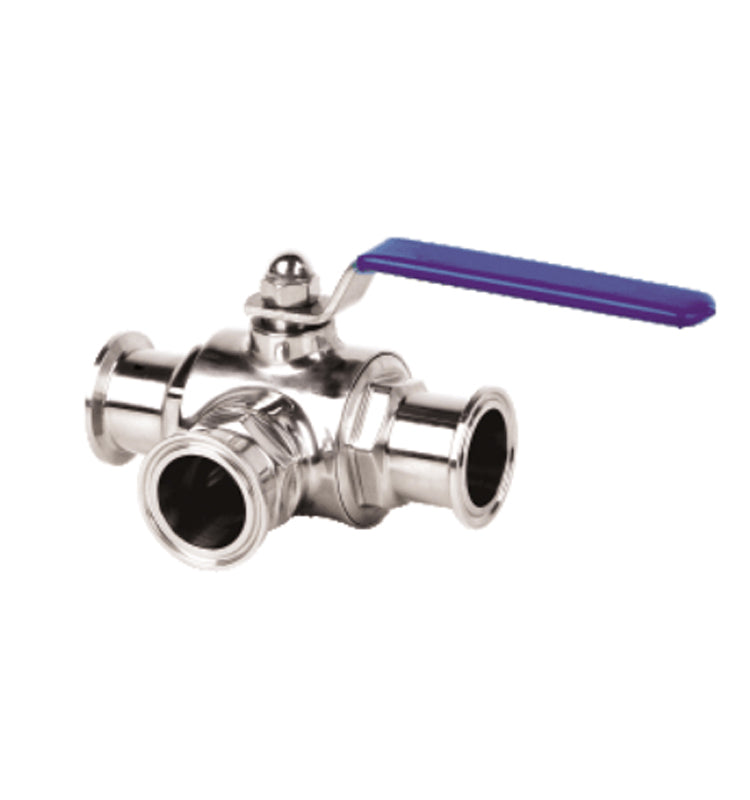

3. Three Way Ball Valve
-
Design: Uses a rotating ball with a “T” or “L” shaped bore to control flow.
- T-port: Mixes/diverts flow (e.g., Port 1 to Ports 2+3 simultaneously).
- L-port: Switches flow between two paths (Port 1 to Port 2 or Port 1 to Port 3).
- Use case: Chemical processing, where quick, leak-tight shutoff is critical.
4. Three Way Diaphragm Valve
- Design: Uses a flexible diaphragm to separate the fluid from the actuator, preventing contamination.
- Use case: Sanitary applications (pharmaceuticals, food processing) requiring sterile flow control.

Real-World Applications: Where Three Way Valves Shine
Understanding how three way valves work is only half the battle—knowing where they’re used helps you choose the right type for your system.
HVAC Systems
In heating/cooling systems, mixing three way valves blend hot and cold water to maintain a stable supply temperature for radiators or air handlers. Diverting valves, meanwhile, switch flow between zones (e.g., directing chilled water to a conference room vs. office cubicles).
Industrial Process Control
Manufacturing lines often use three way valves to manage chemical blending (e.g., mixing acids and bases to neutralize waste) or temperature regulation (e.g., cooling machinery with a mix of ambient and chilled water).
Medical Equipment
In dialysis machines, three way valves precisely control the flow of blood, dialysate (cleaning fluid), and waste—ensuring safe, accurate treatment.
Water Treatment Plants
Diverting three way valves direct raw water to filtration units or bypass them for maintenance, while mixing valves balance chemical additives (e.g., chlorine) with treated water.

Choosing the Right Three Way Valve: Key Considerations
Selecting the wrong three way valve can lead to inefficiency, leaks, or system failure. Here’s what to prioritize:
-
Flow Type:
- Need to mix two fluids? Choose a mixing valve.
- Need to switch between two outputs? Opt for a diverting valve.
-
Fluid Properties:
- Corrosive chemicals? Use stainless steel or plastic bodies.
- High-temperature steam? Select valves rated for 200°C+ (check the datasheet).
-
Pressure and Flow Rate:
- Ensure the valve’s Cv (flow coefficient) matches your system’s required flow rate.
- High-pressure systems (e.g., hydraulics) need valves with reinforced seals.
-
Actuation Type:
- Manual valves work for infrequent adjustments.
- Electric/pneumatic actuators are better for automated systems (e.g., smart HVAC).
Why Eagle Three Way Valves Stand Out
At Eagle, we design three way valves with practicality in mind—balancing performance, durability, and ease of use:
- Precision engineering: Our valves feature tight tolerances to minimize leaks, even in high-pressure applications.
- Material options: Choose from brass (cost-effective), stainless steel (corrosion-resistant), or plastic (chemical-safe) to match your fluid type.
- Flexible actuation: Manual handwheels, electric actuators (24V/120V), or pneumatic options for seamless integration with existing controls.
We don’t claim to be the cheapest—but we prioritize reliability. A well-chosen Eagle three way valve reduces maintenance calls, extends system life, and keeps your operations running smoothly.

Conclusion
Three way valves are versatile tools for fluid control, with designs tailored to mixing, diverting, or switching flows. By understanding their working principle, types, and applications, you can select the right valve for your system—avoiding common pitfalls like mismatched flow rates or incompatible materials.
Whether you’re upgrading an HVAC system or optimizing a manufacturing line, a reliable three way valve is non-negotiable. For solutions that combine precision and durability, Eagle’s three way valves are built to meet the demands of real-world applications.
Need help selecting the perfect three way valve for your project? Eagle’s technical team offers free consultations—reach out to discuss your system’s unique requirements.
