Valve actuators are the “muscles” behind automated valves—they open, close, and regulate flow in everything from industrial pipelines to sanitary systems in food plants. But when an actuator fails, it can grind operations to a halt, risking downtime, leaks, or even product contamination. So, how do you spot a failing actuator before it causes a crisis? Below, we’ll break down the most common signs of a bad valve actuator, troubleshooting steps, and why upgrading to a reliable model (like those from Eagle) can save you time and money.
What Does a Valve Actuator Do?
Before diving into problems, let’s recap: A valve actuator is a motorized or pneumatic device that controls a valve’s position (open/closed/partially open) based on signals from a controller, switch, or sensor. In sanitary settings (food, pharma, brewing), actuators must work flawlessly to maintain sterility and precision—imagine a pharmaceutical line where a stuck actuator could ruin a batch of medication.

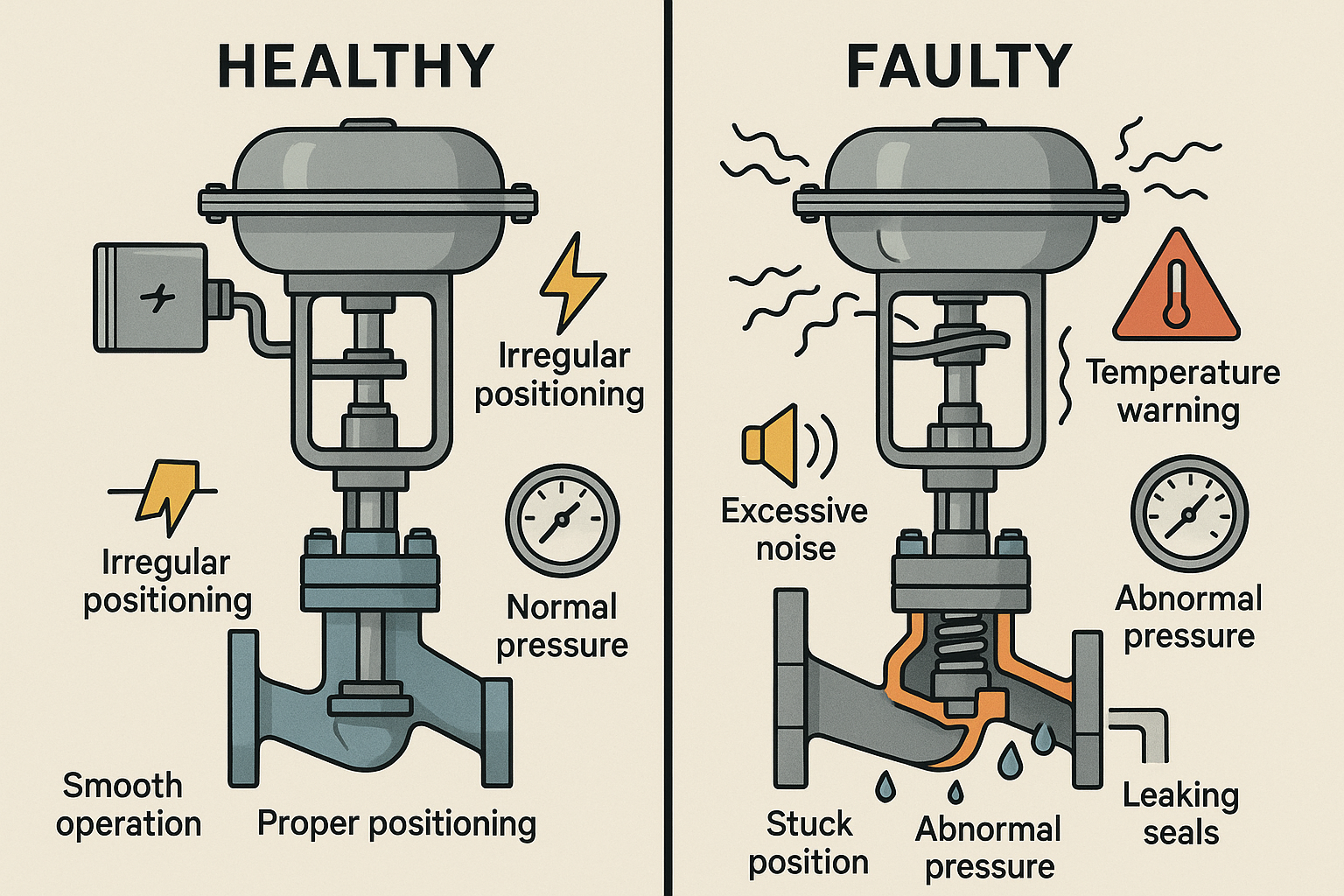

5 Clear Signs Your Valve Actuator Is Failing
1. The Valve Doesn’t Respond to Signals
The problem: You flip a switch or send a digital signal, but the valve doesn’t move. It might stay stuck open, closed, or only partially respond.
Why it happens:
- Power issues: Loose wiring, dead batteries (for battery-powered actuators), or a tripped circuit breaker.
- Faulty motor: Burned-out windings or a failed capacitor (common in electric actuators).
- Sensor failure: Limit switches or position sensors (which tell the actuator when to stop) may be misaligned or broken.
Quick test: For electric actuators, check if the power light turns on. If not, trace the wiring back to the power source—loose connections are a frequent culprit.
2. Strange Noises: Grinding, Buzzing, or Clicking
The problem: Your actuator makes unusual sounds during operation: a loud grind, constant buzz, or rapid clicking.
Why it happens:
- Mechanical binding: Dirt, rust, or debris in the valve stem can jam the actuator’s gears, forcing the motor to strain (grinding noise).
- Damaged gears: Worn teeth on plastic or metal gears (common in older actuators) cause clicking or skipping.
- Air leaks (pneumatic actuators): A hissing sound often means a cracked air line or faulty solenoid valve, reducing pressure and causing erratic movement.
Pro tip: Pneumatic actuators should run quietly—any sudden increase in noise usually signals air leaks or seal wear.
3. Leaks Around the Actuator or Valve
The problem: You notice fluid dripping from the actuator-body connection or around the valve stem.
Why it happens:
- Worn seals or O-rings: Actuators have seals that prevent fluid from seeping into the motor or pneumatic components. Over time, these degrade (especially in high-temperature or chemical environments).
- Misalignment: If the actuator isn’t mounted straight, it can pull the valve stem sideways, creating gaps that leak.
- Corroded components: In sanitary systems (e.g., food processing), saltwater or acidic fluids can corrode metal parts, weakening seals.
Red flag: Leaks in sanitary systems (like dairy or pharma) risk product contamination—address these immediately!
4. Overheating or Burning Smells
The problem: The actuator feels hot to the touch (even after short use) or emits a burning odor.
Why it happens:
- Overworked motor: If the valve is stuck (e.g., due to a clogged pipe), the actuator motor will run continuously, overheating windings.
- Electrical short: Damaged wiring or a faulty capacitor can cause arcing, leading to burning insulation.
- Lack of ventilation: Actuators in tight, enclosed spaces (common in industrial setups) may overheat without airflow.
Safety note: A burning smell means shut it down—continuing to use it could start a fire!
5. Erratic Movement or Inconsistent Positioning
The problem: The valve opens/closes partially when it shouldn’t, or its position drifts over time (e.g., you set it to 50% open, but it slowly creeps to 70%).
Why it happens:
- Calibration issues: Position sensors (like potentiometers) may need recalibration, especially after maintenance.
- Air pressure fluctuations (pneumatic actuators): Inconsistent air supply from a leaky compressor or regulator can cause jerky movement.
- Worn drive components: Belts, chains, or gears with excessive play fail to hold precise positions.
How to Troubleshoot a Bad Actuator: 3 Steps to Diagnose
Step 1: Rule Out Power & Signal Issues
- For electric actuators: Check voltage with a multimeter (ensure it matches the actuator’s rating, e.g., 24V DC or 120V AC). Loose wires or a blown fuse are easy fixes.
- For pneumatic actuators: Verify air pressure at the inlet (typically 80–100 psi). A drop below the actuator’s minimum pressure (check the manual!) will cause weak movement.
- Test the control signal: Use a signal generator or multimeter to send a test signal (e.g., 4–20mA for analog actuators). If the actuator responds, the problem is likely in the controller, not the actuator itself.
Step 2: Inspect Mechanical Components
- Check for binding: Manually turn the valve stem (if possible) to see if it moves freely. Stiffness could mean the valve is clogged or the stem is bent—not the actuator’s fault.
- Examine gears and linkages: Open the actuator housing (if safe) and look for broken teeth, rust, or debris. For example, a small rock in the gearbox can jam the motor.
- Test seals and O-rings: Look for cracks or hardening (common in old actuators). Sanitary actuators (like those in food plants) often use EPDM or PTFE seals that degrade over time with frequent cleaning.
Step 3: Monitor Temperature & Cycles
- Track heat: Use an infrared thermometer to check motor temperature during operation. Most actuators should stay below 150°F (65°C)—anything hotter suggests an overworked motor.
- Count cycles: Actuators have a lifespan (e.g., 100,000 cycles). If yours is older and used heavily (e.g., in a brewery filling line), it may simply be worn out.
When to Replace: Upgrading to a Reliable Actuator
If troubleshooting points to a failed motor, damaged gears, or irreparable seals, it’s time to replace the actuator. For industries like food, pharma, or brewing, sanitary stainless steel actuators are non-negotiable—they resist corrosion, meet FDA/3A standards, and withstand harsh cleaning (CIP/SIP).
Why Choose Eagle Actuators?
Eagle, a global leader in sanitary valves and actuators, offers models built for durability and precision, with key advantages:
- 316L Stainless Steel Construction: Ideal for corrosive environments (e.g., acidic foods, coastal plants) and easy to sanitize.
- Full Certifications: Meet FDA, 3A, and ISO 9001 standards—critical for passing audits in pharma or dairy processing.
- 30% Lower Cost Than Premium Brands: Eagle’s streamlined manufacturing cuts out the middleman, so you get the same quality as big-name brands (like Emerson or Rotork) for 30% less.
Whether you need a compact electric actuator for a 2-inch sanitary valve or a heavy-duty pneumatic model for industrial pipelines, Eagle’s range covers it—with the reliability to avoid unexpected downtime.
Final Tip: Prevent Failures with Regular Maintenance
The best way to avoid actuator issues? Stick to a maintenance schedule:
- Lubricate gears and linkages (use food-grade lubricant for sanitary systems).
- Clean sensors and limit switches to prevent dirt buildup.
- Calibrate position sensors annually (or after repairs).
By catching small issues early, you’ll extend your actuator’s life and keep your system running smoothly.
