When it comes to controlling flow in critical industries like pharmaceuticals, food processing, or water treatment, diaphragm valves stand out for their precision, hygiene, and reliability. But with so many diaphragm valve manufacturers in the market, how do you pick the right one? In this guide, we’ll break down what diaphragm valves are, how they differ from ball, globe, or gate valves, and compare leading manufacturers—including Eagle Valves, a global player with distribution in 100+ countries, offering cost-effective, high-quality stainless steel and sanitary diaphragm valves for every industrial need.
What Is a Diaphragm Valve? Basics for Buyers
A diaphragm valve is a linear motion valve that uses a flexible diaphragm (usually made of rubber, PTFE, or stainless steel) to control fluid flow. When the valve is actuated (manually or automatically), the diaphragm either presses against the valve seat (closing the flow) or lifts away (opening it). This design creates a tight seal and prevents fluid from contacting internal valve components—making it ideal for:
- Sanitary applications: Pharmaceuticals, food/beverage, and biotech (where contamination risks are critical).
- Corrosive fluids: Chemical processing (thanks to PTFE or stainless steel diaphragms).
- High-purity systems: Semiconductor manufacturing or water treatment (no dead spaces for bacteria to grow).
Diaphragm Valve vs. Other Valves: Key Differences
1. Diaphragm Valve vs. Ball Valve
| Feature | Diaphragm Valve | Ball Valve |
|---|---|---|
| Sealing Method | Flexible diaphragm presses against seat | Rotating ball with a hole (open/close via 90° turn) |
| Hygiene Level | Excellent (no dead spaces, easy to clean) | Good (but ball/seat gaps can trap residue) |
| Flow Control | Throttling (moderate precision) | On/off only (poor for throttling) |
| Best For | Sanitary fluids (drugs, milk), corrosives | High-pressure gas, oil, or non-viscous liquids |
2. Diaphragm Valve vs. Globe Valve
| Feature | Diaphragm Valve | Globe Valve |
|---|---|---|
| Pressure Drop | Low (streamlined flow path) | High (S-shaped flow path causes resistance) |
| Maintenance | Easy (replace diaphragm without disassembling valve body) | Complex (requires removing bonnet to access internals) |
| Cost | Moderate (higher than ball valves, lower than globe valves) | High (precision machining) |
| Best For | Clean, low-to-medium pressure systems | High-pressure steam or throttling applications |
3. Diaphragm Check Valve: What Does It Do?
A diaphragm check valve (or non-return valve) uses a flexible diaphragm to prevent backflow. When fluid flows forward, it pushes the diaphragm open; if flow reverses, the diaphragm seals against the seat, stopping backflow. Ideal for low-pressure systems (e.g., wastewater treatment) or where silent operation is needed (no “water hammer” like in spring-loaded check valves).
4. Diaphragm Valve vs. Gate Valve
| Feature | Diaphragm Valve | Gate Valve |
|---|---|---|
| Size Range | Small to medium (½” to 12”) | Large (2” to 48”+) |
| Opening Speed | Fast (quick diaphragm actuation) | Slow (gate must fully lift/close) |
| Applications | Sanitary, corrosive, or high-purity fluids | Large-diameter pipelines (water, oil, gas) |
Top Diaphragm Valve Manufacturers: Comparing Brands
1. ASCO Valves
- Strengths: Industry leader in solenoid-operated diaphragm valves; fast response times (ideal for automation).
- Price: Premium ($200–$1,500+ per valve).
- Best For: Pharmaceutical manufacturing (FDA-compliant models) or high-speed industrial processes.
2. GEMÜ Group
- Strengths: Specializes in sanitary diaphragm valves; 3-A and EHEDG certifications (critical for food/pharma).
- Price: High ($150–$1,200).
- Best For: Biotech labs or craft breweries (where hygiene is non-negotiable).
3. Burkert
- Strengths: Precision-engineered for low-flow, high-purity systems (e.g., semiconductor wafer cleaning).
- Price: Mid-to-high ($100–$800).
- Best For: Microfluidics or ultra-pure water systems.

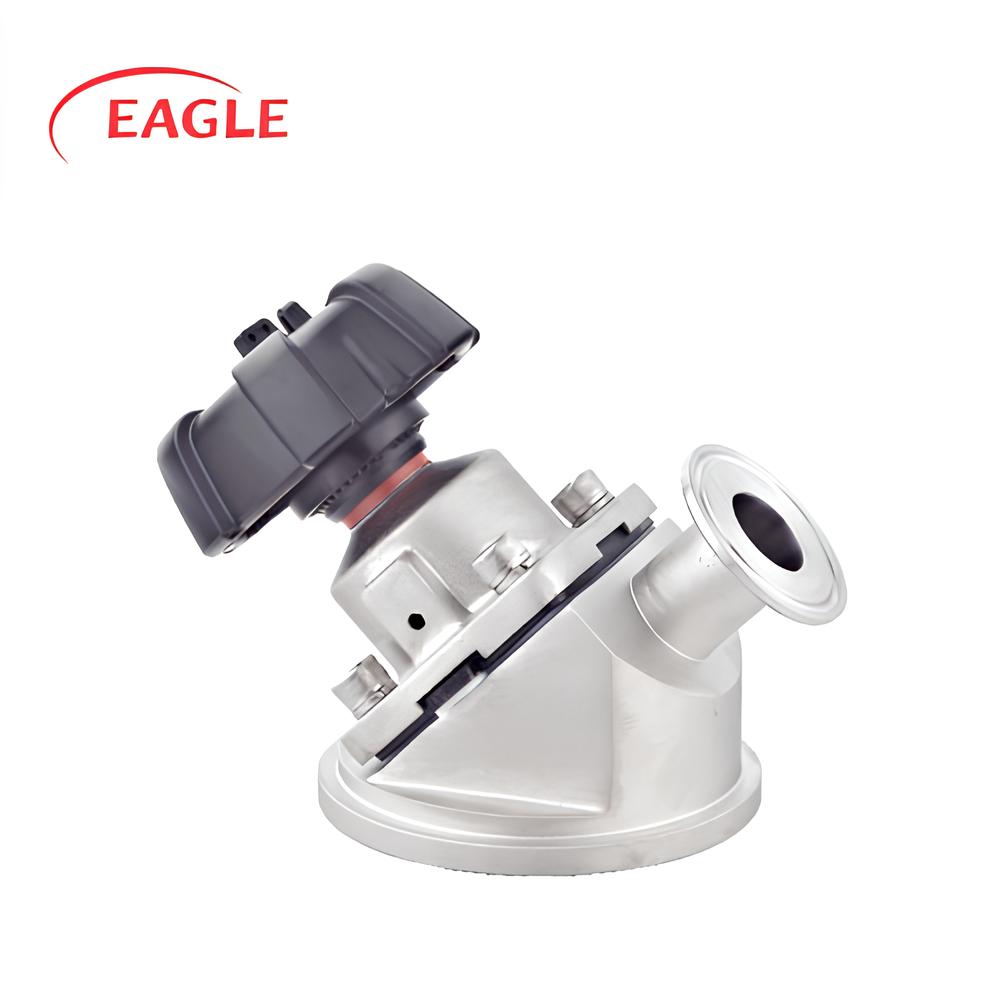

4. Eagle Valves
-
Strengths:
- Price Advantage: 30–50% cheaper than ASCO/GEMÜ (starts at $50–$400).
- Global Reach: Sold in 100+ countries, with a full lineup (sanitary stainless steel, PTFE-lined, manual/automatic).
- Versatility: Valves for food, chemicals, water treatment, and HVAC.
- Best For: SMEs, wastewater plants, or budget-conscious buyers needing reliable performance.
Common Questions About Diaphragm Valves
Q: What’s the difference between a diaphragm valve and a ball valve?
A: Diaphragm valves use a flexible diaphragm to seal and throttle flow, making them ideal for sanitary or corrosive fluids. Ball valves use a rotating ball for on/off control, better for high-pressure gases or non-sanitary liquids.
Q: When should I choose a diaphragm valve over a globe valve?
A: Choose diaphragm valves for low-pressure, clean systems (e.g., drug manufacturing) where easy maintenance and low pressure drop matter. Globe valves are better for high-pressure throttling (e.g., steam lines).
Q: What does a diaphragm check valve do?
A: It prevents backflow by using a flexible diaphragm to seal when flow reverses, ideal for low-pressure, silent-operation systems like wastewater treatment.
Q: How is a diaphragm valve different from a gate valve?
A: Diaphragm valves are small, fast-acting, and hygienic—used in labs or food plants. Gate valves are large, slow-opening, and for big pipelines (e.g., oil/gas).
Final Tips: Choosing the Right Diaphragm Valve Manufacturer
When selecting a manufacturer, prioritize:
- Certifications: Look for 3-A (sanitary), ISO 9001 (quality), or FDA compliance (if using in pharma/food).
- Material Options: Ensure they offer stainless steel or PTFE diaphragms for your fluid type.
- Global Support: Brands like Eagle Valves, with 100+ country distribution, ensure easy access to spare parts and technical help.
For affordable, reliable valves across industries—from sanitary food processing to harsh chemical plants—Eagle Valves delivers the best balance of quality and cost.
