It’s Saturday morning, and Maria is knee-deep in her bathroom renovation. She’s replacing the old shutoff valve under the sink with a shiny new brass ball valve—something she watched a YouTube tutorial on last night. She tightens the connections, turns on the water… and water starts spraying from the valve body. “What did I do wrong?” she mutters, checking the tutorial again. Halfway through, she pauses: “Wait—did I put it in backwards? Are ball valves directional?”
If you’ve ever installed a ball valve—whether for a home plumbing fix, an irrigation system, or a commercial project—you’ve probably asked the same question. The answer isn’t a simple “yes” or “no.” Most standard ball valves are bidirectional (they work either way), but some specialized types are strictly directional. Mixing them up can mean leaks, reduced performance, or even damaged equipment. Let’s break it down so you can avoid Maria’s mistake.
The Short Answer: Most Ball Valves Are Bidirectional—But Not All
Walk into a hardware store, and the ½-inch brass valve for your garden hose or the 2-inch stainless steel valve for your sprinkler system? They’re almost certainly bidirectional. That means fluid can flow through them in either direction, and they’ll seal just as tightly when closed. But if you’re dealing with industrial valves, thick fluids, or precision flow control? You might be looking at a directional ball valve—one that only works when fluid flows a specific way.
Why Most Ball Valves Are Bidirectional: The Symmetry Secret
Standard ball valves (think “everyday” valves for homes, small businesses, or basic industrial use) are designed to be reversible. Here’s why:
1. The Ball Is Symmetric
Inside a standard ball valve is a hollow metal ball with a hole straight through the middle. The ball sits evenly between two rubber or metal seats, and when you turn the handle, the ball rotates to open or close the flow. Since the ball is perfectly round and the hole is centered, it doesn’t matter which end fluid enters— the seats seal against the ball equally well. It’s like a door that swings both ways—no “front” or “back.”
2. Simple Seals = No Direction Bias
Most residential and light commercial ball valves use soft seats (rubber, PTFE) or metal seats that press against the ball when closed. These seats are symmetric, too—they don’t care if fluid pushes from the left or the right. For example:
- The brass ball valve under your kitchen sink? It’ll shut off water just as well if you install it “backwards.”
- The stainless steel valve on your pool pump? Reversing it won’t cause leaks (though you should still follow any arrows for consistency).
3. Versatility for Everyday Use
Bidirectional design makes ball valves a go-to for DIYers and plumbers. They’re easy to install (no guessing which end is “in” or “out”), work in systems where flow might reverse (like a well pump with a check valve), and handle most common fluids—water, air, mild chemicals—without fuss.
When Ball Valves Are Directional: 3 Key Exceptions
While standard ball valves play both ways, these specialized types have a “preferred” flow direction. Ignore the arrow on the valve body, and you’ll regret it.
1. V-Port Ball Valves (Control Valves)
V-port ball valves aren’t just for on/off control—they throttle flow, like a faucet that lets you adjust pressure. The ball has a V-shaped notch instead of a round hole, which creates a precise, predictable flow pattern when fluid flows into the V. Reverse the flow, and the V disrupts the flow, causing turbulence, noise, or even cavitation (tiny bubbles that eat away at the valve).
- Common use: HVAC systems (adjusting hot water flow), chemical plants (metering acids), or breweries (controlling wort flow during fermentation).
2. Eccentric Ball Valves (Offset Design)
Eccentric ball valves have a ball that’s offset from the valve seat—think a door that tilts as it closes. This design reduces friction, making them ideal for thick fluids (slurries, heavy oils) or high-pressure systems. But the offset only works one way: reverse the flow, and the ball won’t seat tightly, leading to leaks or premature wear.
- Common use: Mining (slurry pipelines), oil refineries (heavy crude), or wastewater treatment (thick sludge).

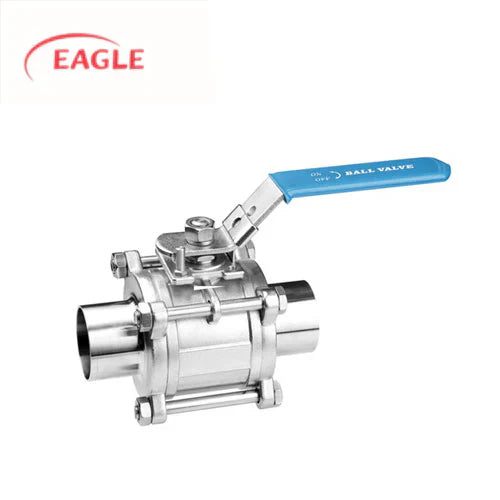

3. Sanitary Ball Valves (Food/Beverage/Dairy)
Sanitary ball valves need ultra-tight seals to prevent bacterial growth (critical for FDA/USDA compliance). Some have spring-loaded seats that only seal when fluid pushes against them—like a one-way door. Reverse the flow, and the seat pops open, creating a gap where bacteria can hide. Always check for an arrow on these valves!
- Common use: Milk processing lines, craft soda factories, or pharmaceutical labs (sterile fluid transfer).
How to Tell If Your Ball Valve Is Directional: 3 Pro Tips
Don’t guess—use these tricks to avoid leaks:
1. Look for an Arrow on the Valve Body
Most directional ball valves have a clear arrow stamped or painted on the valve body, pointing to the “correct” flow direction. If you see an arrow, follow it. Even if you think it’s bidirectional, the arrow is there for a reason (usually performance or safety).
2. Check the Valve Type
- Bidirectional: Standard full-port, reduced-port, or floating ball valves (no notches, offsets, or “control” labels).
- Directional: V-port, eccentric, or sanitary valves with “single-seat” or “spring-loaded” in the description.
3. Read the Manual (Yes, Really)
Even if there’s no arrow, the manufacturer’s manual will spell out directionality. For example, a high-pressure trunnion ball valve might work bidirectionally in low-pressure systems but need direction in high-pressure setups. When in doubt, Google the model number + “directional flow”—you’ll find the specs fast.
FAQs: Your Ball Valve Direction Questions Answered
Q: Can I install a bidirectional ball valve backwards?
A: Yep! Since the ball and seats are symmetric, it won’t leak or fail. But if there’s an arrow (even on bidirectional valves), follow it anyway—manufacturers sometimes mark “preferred” flow for better performance (less pressure drop).
Q: What happens if I reverse a directional ball valve?
A: For V-port valves: uneven flow, noise, or damage. For eccentric valves: leaks or seat wear. For sanitary valves: bacterial growth or failed inspections. It’s not worth the risk!
Q: Why do some bidirectional valves have arrows then?
A: Arrows often indicate “optimal” flow direction (e.g., less turbulence), not strict directionality. Think of it as a suggestion, not a rule—unlike directional valves, where it’s a rule.
Final Thought: Know Your Valve, Avoid the Headache
Most days, you can grab a standard ball valve, twist it on, and call it a day—they’re bidirectional workhorses. But if you’re dealing with V-port valves, thick fluids, or food-safe systems? Take a second to check for arrows or labels.
