Imagine this: You’re the plant manager at a beverage bottling facility, and your production line grinds to a halt. A valve in the syrup mixing tank has failed—sticky liquid is leaking onto the floor, and the batch is ruined. The culprit? A traditional ball valve with a worn seal, prone to buildup in the crevices. You need a valve that can handle thick, sugary fluids without clogging, seals tight to avoid waste, and cleans easily to meet FDA standards. Sound familiar? The solution might be a pneumatic diaphragm valve—a workhorse designed for precision, hygiene, and reliability in tough industrial environments.
Whether you’re processing pharmaceuticals, handling corrosive chemicals, or bottling juice, choosing the right valve can mean the difference between smooth operations and costly downtime. This guide breaks down everything buyers need to know: what a pneumatic diaphragm valve is, how it works, why it outperforms other valves in critical applications, and how to pick the perfect model (like a Stainless Steel pneumatic diaphragm valve or Sanitary pneumatic diaphragm valve) for your workflow. Let’s dive in.
What Is a Pneumatic Diaphragm Valve?
At its core, a pneumatic diaphragm valve is a type of flow control valve that uses compressed air (pneumatic pressure) to open and close, with a flexible diaphragm acting as the seal. Unlike ball valves (which use a rotating ball) or gate valves (which lift a gate), the diaphragm valve’s magic lies in its simplicity: when air pressure is applied, the diaphragm flexes upward, opening the valve and letting fluid flow; when pressure is released, the diaphragm drops back down, sealing the valve shut with zero contact between the fluid and the valve’s mechanical parts.
How It Works: The Basics
- Diaphragm: A flexible membrane (usually rubber, PTFE, or EPDM) that acts as both the seal and the actuator. It’s the only part that touches the fluid, preventing contamination and wear.
- Pneumatic Actuator: A small air cylinder that uses compressed air (typically 30–150 psi) to move the diaphragm up (open) or down (closed).
- Body: The valve housing, which directs fluid flow. Bodies are often made of stainless steel, plastic, or cast iron, depending on the application.
Why Choose a Pneumatic Diaphragm Valve? Key Benefits for Buyers

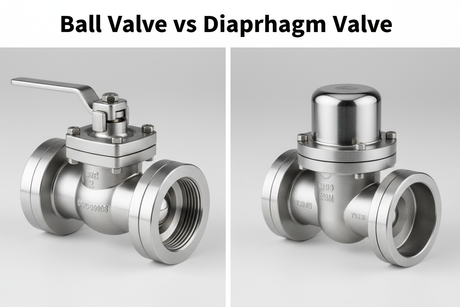

You might be thinking: “Why not stick with a ball valve or globe valve?” Here’s why pneumatic diaphragm valves shine in scenarios where reliability, hygiene, and low maintenance matter most:
1. Zero Leakage, Maximum Seal Integrity
The diaphragm creates a tight, bubble-tight seal when closed—no fluid creeps past, even with thick or viscous media (think syrups, slurries, or pastes). This is a game-changer for industries like pharmaceuticals, where cross-contamination risks are high, or chemical processing, where leaks mean wasted product and safety hazards.
2. Hygienic Design (Perfect for Food, Pharma, and Beverage)
Unlike ball valves, which have crevices where bacteria or residue can hide, diaphragm valves have smooth, crevice-free interiors. This makes them easy to clean (CIP/SIP compatible) and ideal for Sanitary applications. Many Sanitary pneumatic diaphragm valves even come with polished stainless steel bodies and FDA-approved diaphragms, meeting strict 3-A or EHEDG standards.
3. Handles Corrosive, Abrasive, and Viscous Fluids
Got a fluid that eats through metal? A Stainless Steel pneumatic diaphragm valve with a PTFE diaphragm can handle acids, alkalis, and solvents without corroding. For abrasive slurries (like mining wastewater or concrete additives), the diaphragm acts as a barrier, protecting the valve’s internal parts from wear.
4. Low Maintenance, Long Lifespan
With only one moving part (the diaphragm), there’s less to break or wear out. Replacing a diaphragm takes minutes (no need to disassemble the entire valve), cutting downtime. Compare that to ball valves, which often require replacing seals, stems, or even the entire ball after heavy use.
5. Precise Control for Sensitive Processes
Pneumatic actuation allows for throttling (partial opening) to control flow rates—critical for processes like dosing chemicals in water treatment or blending ingredients in food production. Many models come with positioners to fine-tune flow, ensuring consistency batch after batch.
Key Types of Pneumatic Diaphragm Valves: Which One Fits Your Needs?
Not all diaphragm valves are created equal. Two standout types cater to specific industrial needs—here’s how to tell them apart:
1. Stainless Steel Pneumatic Diaphragm Valve
What it is: A rugged valve with a 316 or 304 stainless steel body, designed for durability and corrosion resistance. The diaphragm is often PTFE or EPDM, chosen for compatibility with harsh chemicals.
Best for: Chemical processing, oil & gas, wastewater treatment, and marine applications. If you’re handling acids, saltwater, or industrial solvents, this is your workhorse.
Example: A chemical plant using sulfuric acid would opt for a 316 Stainless Steel pneumatic diaphragm valve with a PTFE diaphragm to avoid corrosion and ensure long-term reliability.

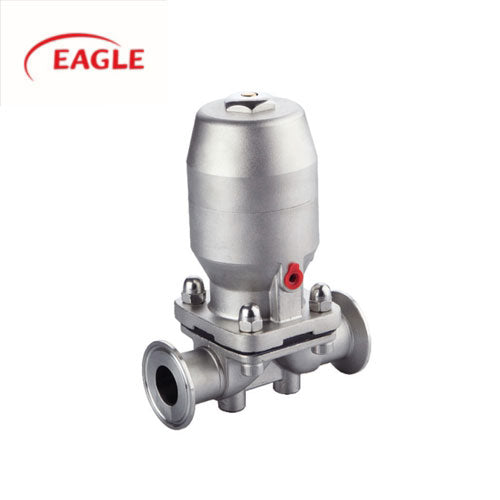

2. Sanitary Pneumatic Diaphragm Valve
What it is: Built for industries where cleanliness is non-negotiable. Features include a polished stainless steel body (Ra < 0.8μm), tri-clamp or weld connections, and diaphragms made from FDA-grade materials (like silicone or EPDM). No dead legs or crevices to trap bacteria.
Best for: Food & beverage (dairy, beer, juice), pharmaceuticals (injectables, APIs), and biotech (cell cultures, vaccines).
Example: A pharmaceutical manufacturer filling vials would use a Sanitary pneumatic diaphragm valve to ensure the drug remains sterile, with easy CIP (Clean-in-Place) capability to meet FDA regulations.
How to Choose the Right Pneumatic Diaphragm Valve: A Buyer’s Checklist
With so many options, picking the right valve boils down to your specific process. Ask yourself these questions to narrow it down:
1. What Fluid Are You Handling?
- Corrosive (acids, alkalis): Go for a Stainless Steel pneumatic diaphragm valve with a PTFE diaphragm.
- Sanitary (food, pharma): Choose a Sanitary model with FDA-approved materials and polished internals.
- Viscous (slurries, pastes): Look for a valve with a large flow path and a flexible diaphragm (EPDM works well here).
2. What Are the Pressure and Temperature Limits?
Most pneumatic diaphragm valves handle pressures up to 150 psi and temperatures from -40°F to 300°F, but check the specs:
- High-temperature processes (like hot oil) may need a PTFE diaphragm (resists up to 500°F).
- Vacuum applications require a diaphragm designed for negative pressure.
3. How Will You Mount and Connect It?
- Sanitary lines: Tri-clamp or weld connections for quick, crevice-free installation.
- Industrial pipes: Flanged or threaded connections (NPT, BSP) for secure, leak-free joints.
4. Do You Need Manual Override?
Some valves come with a handwheel for manual operation, useful for emergencies or when the pneumatic system fails. If your plant has frequent power outages, this is a smart add-on.

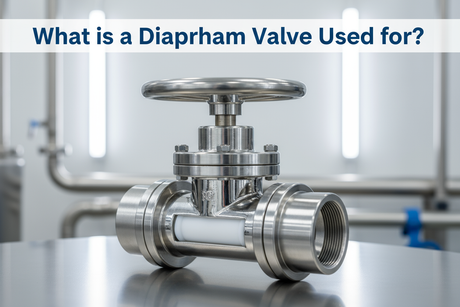

Real-World Applications: Where Pneumatic Diaphragm Valves Excel
Still not sure if it’s right for you? Here are industries where these valves are indispensable:
- Water Treatment: Controlling the flow of chemicals like chlorine or alum.
- Food Processing: Dosing flavorings, syrups, or preservatives in bottling lines.
- Pharmaceuticals: Transferring APIs (Active Pharmaceutical Ingredients) between sterile tanks.
- Chemical Manufacturing: Handling corrosive solvents in batch reactors.
- Marine & Offshore: Managing bilge water or fuel additives in saltwater environments (Stainless Steel models resist rust).
Final Thoughts: Invest in Reliability, Avoid Costly Mistakes
A pneumatic diaphragm valve isn’t just a valve—it’s an investment in smoother operations, fewer headaches, and compliance with industry standards. Whether you need a tough Stainless Steel pneumatic diaphragm valve for chemicals or a Sanitary model for pharmaceuticals, the key is to match the valve’s design to your fluid, pressure, and hygiene needs.
Don’t let a leaky, hard-to-maintain valve derail your production. Choose a pneumatic diaphragm valve, and rest easy knowing your flow control is in good hands.
