What is a Sanitary Gasket?

What is a Sanitary Gasket?

In food processing, pharmaceuticals, and brewing, even the smallest gap in a pipeline can lead to contamination, product recalls, or failed audits. That’s where sanitary gaskets come in—specialized seals designed to create a tight, bacteria-free barrier between pipes, valves, and tanks. Unlike regular industrial gaskets, sanitary gaskets are engineered for strict hygiene standards, with materials and designs that prevent bacterial growth and ensure easy cleaning. Let’s break down what sanitary gaskets are, their key uses, common materials, and why they’re critical for industries like dairy, craft beer, and drug manufacturing.

What is a Sanitary Gasket?

A sanitary gasket is a flexible seal used to join two surfaces in hygienic systems, creating a leak-free barrier that resists bacterial buildup. Made from non-toxic, corrosion-resistant materials (like silicone or EPDM), they’re designed to meet strict standards such as FDA, 3A, and USP Class VI—ensuring they’re safe for contact with food, beverages, and pharmaceuticals.

Unlike standard gaskets (which may have rough edges or porous materials), sanitary gaskets feature:

  • Smooth, crevice-free surfaces to prevent bacteria from hiding.
  • Food-grade materials that won’t leach chemicals into products.
  • Compatibility with CIP/SIP cycles (Clean-in-Place/Sterilize-in-Place), withstanding high temperatures and harsh cleaners like caustic soda or steam.

Key Uses of Sanitary Gaskets

Sanitary gaskets solve three critical challenges in hygienic industries:

1. Prevent Leaks and Contamination

Their primary job is to seal gaps between tri-clamp ferrules, valve flanges, or tank openings, stopping product leaks and preventing outside contaminants (like dust or bacteria) from entering the system.

2. Enable Easy Cleaning

Their smooth, non-porous design ensures no residue sticks to the gasket, making them ideal for systems requiring daily cleaning (e.g., a brewery’s fermenter or a dairy’s pasteurization line).

3. Meet Regulatory Standards

Without 3A or FDA-certified sanitary gaskets, facilities risk failing audits. For example, a pharmaceutical plant producing injectable drugs must use USP Class VI gaskets to avoid product contamination.

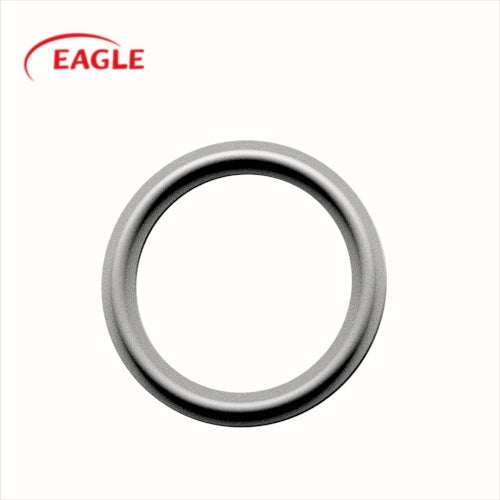

Sanitary Gasket

Common Sanitary Gasket Materials

The right material depends on temperature, chemical exposure, and industry requirements. Here are the most widely used options:

Material Temperature Range Best For Key Features
Silicone -60°F to 450°F (-51°C to 232°C) High-heat applications (steam cleaning, pasteurization). Flexible, non-toxic, and 3A/FDA compliant. Ideal for dairy, brewing, and food processing.
EPDM -40°F to 300°F (-40°C to 149°C) Chemical resistance (acids, alkalis, or sanitizers like peracetic acid). Cost-effective and durable for beverage lines (soda, juice) or cosmetic manufacturing.
PTFE (Teflon) -450°F to 500°F (-268°C to 260°C) Extreme temperatures or aggressive chemicals (e.g., pharmaceuticals, corrosive cleaners). Inert, non-stick, and USP Class VI certified. Used in biotech and high-purity systems.

Industries That Rely on Sanitary Gaskets

Sanitary gaskets are non-negotiable in any industry where product purity is critical:

1. Food & Beverage

  • Dairy: Sealing milk pipelines and cheese vats to prevent bacterial growth (e.g., E. coli or Listeria).
  • Craft Brewing: Fermenter lids and keg connections, where silicone gaskets withstand hot CIP cycles with caustic cleaners.
  • Bakery: Oven doors and mixing tank seals, using high-temperature silicone to handle heat and dough residues.

2. Pharmaceuticals & Biotech

  • Drug Manufacturing: Sealing bioreactors and API (Active Pharmaceutical Ingredient) tanks with PTFE gaskets to meet USP Class VI standards.
  • Medical Devices: Sterilizer autoclaves, where EPDM gaskets resist steam and hydrogen peroxide sterilization.

3. Cosmetics & Personal Care

  • Skincare: Mixing tanks for lotions and serums, using EPDM gaskets to avoid chemical reactions with ingredients like retinol or acids.

How to Choose the Right Sanitary Gasket

Selecting a sanitary gasket boils down to three questions:

  1. What temperature will it face? (e.g., steam cleaning needs silicone; cryogenic storage needs PTFE).
  2. What chemicals will it contact? (e.g., acidic juices need EPDM; harsh solvents need PTFE).
  3. What certifications does my industry require? (e.g., dairy needs 3A; pharmaceuticals need USP Class VI).

Final Thoughts

Sanitary gaskets may seem like small components, but they’re the unsung heroes of hygienic manufacturing. By creating leak-free, bacteria-resistant seals, they ensure products stay pure, facilities stay compliant, and customers stay safe. Whether you’re running a craft brewery or a biotech lab, choosing the right material—silicone for heat, EPDM for chemicals, or PTFE for extremes—keeps your operations running smoothly and audit-ready.
