Imagine you’re a small-scale jam maker, standing in your workshop staring at a row of stainless-steel tanks. You need to control the flow of hot raspberry puree from a mixing tank to a filling machine—slow enough to avoid spills, precise enough to hit your 500g jar target every time. Your supplier suggests an “automatic diaphragm valve,” but you pause: You don’t have compressed air lines in your workshop, and the $800 price tag makes you wince. Then your maintenance tech pipes up: “Why not a manual diaphragm valve? It’s cheaper, easy to fix, and you can tweak the flow by hand—perfect for small batches.”
If you’re a small manufacturer, lab manager, or DIY enthusiast, this scenario hits home. Manual diaphragm valves are the unsung heroes of low-to-medium flow systems, offering precise control, simplicity, and affordability that automatic valves (pneumatic, electric) can’t match—especially when you don’t have power or compressed air on hand. But what exactly is a manual diaphragm valve? How does it work? And when should you choose it over fancier options? Let’s break it down like you’re chatting with a trusted supplier—no jargon, just the info you need to buy smarter.
What Is a Manual Diaphragm Valve? The Basics Every Buyer Needs to Know

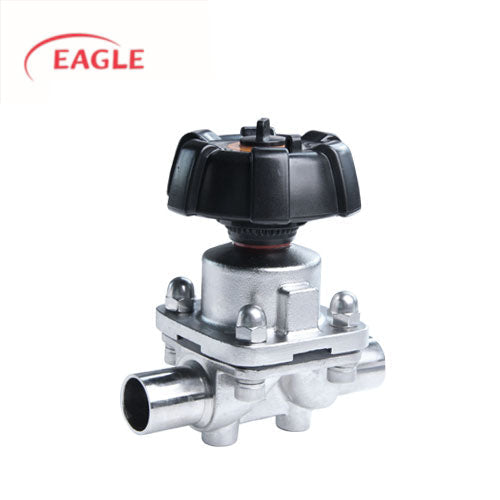

At its core, a manual diaphragm valve is a flow-control device that uses a flexible diaphragm (think a tough rubber or PTFE “membrane”) to start, stop, or throttle fluid flow—all controlled by hand. Unlike automatic diaphragm valves, which rely on air pressure, electricity, or hydraulics to operate, manual versions use a simple handwheel, lever, or gear to move the diaphragm up or down.
Here’s what makes it tick (key parts you’ll see in specs):
- Diaphragm: The star of the show—a flexible disc (usually rubber, EPDM, silicone, or PTFE) that seals against the valve seat to block flow or lifts to let fluid pass.
- Valve Body: The “pipe” part, made of materials like stainless steel (for food/pharma), PVC (for water), or cast iron (for heavy-duty industrial use).
- Handwheel/Lever/Gear: Your “control panel.” Turn the handwheel (or flip the lever), and a stem pushes or pulls the diaphragm. Simple as a faucet handle, but way more precise.
- Valve Seat: A smooth, raised ridge inside the body where the diaphragm sits when closed—ensuring a tight seal with no leaks.
How Does a Manual Diaphragm Valve Work? It’s Simpler Than You Think
Let’s say you’re adjusting the flow of honey in your bakery (sticky, right? Manual valves handle that). Here’s what happens when you turn the handwheel:
- Closing the valve: You twist the handwheel clockwise. The stem (connected to the handwheel) pushes the diaphragm down onto the valve seat. The flexible diaphragm conforms to the seat’s shape, creating a tight seal—no honey drips, no mess.
- Opening the valve: You twist counterclockwise. The stem pulls the diaphragm up, leaving a gap between the diaphragm and seat. Honey flows through the gap; the bigger the gap (more you twist), the faster the flow.
- Throttling flow: Want a slow, steady drip? Twist the handwheel halfway. The diaphragm lifts just enough to let a trickle through—perfect for metering small amounts of fluid.
Think of it like pressing a rubber stopper onto a bottle opening: Press hard (closed), and nothing comes out. Lift it slightly (open a little), and liquid dribbles out. Lift it more (fully open), and it pours. Simple, mechanical, and totally in your control.
Why Choose a Manual Diaphragm Valve? 5 Buyer-Friendly Benefits
If you’re on the fence between manual and automatic, here’s why manual often wins for small-to-medium operations:
1. No Power? No Problem. It Runs on “Human Energy”
Here’s the biggest perk: Manual diaphragm valves don’t need electricity, compressed air, or hydraulic lines. That makes them ideal for:
- Remote locations (e.g., a mountain cabin’s water filtration system with no power grid).
- Small workshops (like your jam-making setup) where adding an air compressor or electric actuator would be overkill.
- Backup systems (if your power goes out, you can still manually adjust flow to keep critical processes running).
2. It’s Budget-Friendly (Save 30-50% vs. Automatic Valves)
Automatic diaphragm valves can cost $500–$2,000+ (thanks to their fancy actuators). Manual versions? You’ll pay $100–$500, depending on size and material. For small businesses or hobbyists, that’s a game-changer. “We switched to manual valves in our microbrewery and saved $1,200 on our initial setup,” says Jake, a craft brewer in Oregon. “And we haven’t needed the extra features of automatic—we only adjust flow twice a day, by hand.”
3. Simple Maintenance (Even Your Intern Can Fix It)
Automatic valves have motors, solenoids, or air lines that break down. Manual valves? Their parts list is short: diaphragm, stem, handwheel. When the diaphragm wears out (after 1–3 years, depending on use), you unscrew the top, pop in a new diaphragm, and you’re done—no special tools, no technician needed. “I taught my 18-year-old assistant to replace diaphragms in 10 minutes,” says Maria, who runs a small cosmetic lab. “With automatic valves, we’d have to call a repair guy and wait a week.”
4. Precise Control for Small-to-Medium Flows
Automatic valves are great for high-volume, fast-acting systems (like a chemical plant pumping 100 gallons per minute). But for small batches—say, 5–50 gallons per minute—manual valves let you “feel” the flow. Turn the handwheel a fraction of an inch, and you’ll notice the difference in flow rate. That’s why labs, small breweries, and artisanal food makers swear by them: “We use manual diaphragm valves to dose vanilla extract into our ice cream mix,” says a pastry chef in Vermont. “We need exactly 2 tablespoons per batch, and manual lets us dial it in perfectly—automatic was too jumpy.”
5. It’s Sanitary (Critical for Food, Pharma, and Cosmetics)
Manual diaphragm valves are easy to clean, with smooth, crevice-free interiors (no hidden spots for bacteria to grow). Many come with sanitary certifications (like FDA, 3A, or ISO 2852) for food and pharma use. The diaphragm itself is often made of silicone or PTFE—materials that won’t react with acids, sugars, or delicate ingredients. “Our auditor loved our manual sanitary diaphragm valves,” says a small-scale yogurt maker. “No nooks for mold to hide, and we can take the diaphragm out to boil it during cleaning. Automatic valves have too many parts to sanitize properly.”
When to Use a Manual Diaphragm Valve (And When to Skip It)
Manual diaphragm valves aren’t one-size-fits-all. Here’s when they shine—and when you might need an upgrade:
Best For:
- Small-to-medium flow rates (5–50 GPM). Beyond that, turning the handwheel gets tiring!
- Low-to-moderate pressure systems (up to 150 PSI; check the valve specs—some go higher).
- No power/compressed air available (remote sites, backup systems).
- Sanitary applications (food, dairy, pharma, cosmetics) where cleaning and simplicity matter.
- Low-frequency operation (you adjust flow once or twice a day, not every minute).
Skip It If:
- You need high flow rates (50+ GPM) or high pressure (over 300 PSI)—automatic valves handle the heavy lifting.
- You need remote control (e.g., adjusting flow from a computer in another room).
- You have hazardous fluids (like toxic chemicals) where manual operation would put workers at risk—go automatic with safety interlocks.
How to Choose the Right Manual Diaphragm Valve: A Buyer’s Checklist
Ready to buy? Here’s what to look for to avoid costly mistakes:
1. Material Matters: Match the Valve to Your Fluid
- Valve Body: Stainless steel (316L) for corrosive fluids (acids, salts) or sanitary use; PVC for water or mild chemicals; cast iron for heavy industrial use (oils, non-corrosive slurries).
- Diaphragm: EPDM (great for water, mild chemicals); silicone (sanitary, heat-resistant up to 300°F); PTFE (the gold standard for corrosives—acids, solvents, chlorine; also FDA-approved).
2. Size It Right (Don’t Guess!)
Measure your pipe diameter (e.g., 1”, 2”) and check the flow rate (GPM) you need. A valve too small will restrict flow; too large will be hard to control. Most manual valves come in sizes from ½” to 4” (DN15 to DN100). When in doubt, ask your supplier: “Tell them your pipe size and fluid type—they’ll point you to the right size,” says a plumber who specializes in small businesses.
3. Check Pressure and Temperature Ratings
Every valve has a “pressure-temperature rating” (e.g., “150 PSI at 200°F”). Make sure your fluid’s pressure and temperature stay below these numbers. For example, hot oil at 300°F needs a valve rated for high temps—silicone diaphragms melt above 300°F, so you’d need PTFE.
4. Look for Certifications (If You Need Them)
- Sanitary use: FDA, 3A, or ISO 2852 certifications.
- Industrial use: ASME, ANSI, or DIN standards for pressure and dimensions.
5. Compare Manual vs. Automatic (Yes, Even Now)
Still unsure? Ask: “How often do I adjust this valve?” If it’s once a day, manual is fine. If it’s hourly, or if you’re away from the valve, automatic might save time (and frustration).
Final Thought: Manual Diaphragm Valves Are “Old School” for a Reason
In a world of “smart” everything, manual diaphragm valves stick around because they work—simply, reliably, and affordably. They’re not flashy, but for small businesses, labs, and anyone who values control and simplicity, they’re indispensable.
So, what is a manual diaphragm valve? It’s your hands-on partner in flow control—no batteries, no air hoses, just you, a handwheel, and the peace of mind that comes from knowing you’re in charge.
