Sanitary Tri-Clamp Eccentric Reducer (32-14MP) - 3/4" x 1/2" / SS316L is backordered and will ship as soon as it is back in stock.

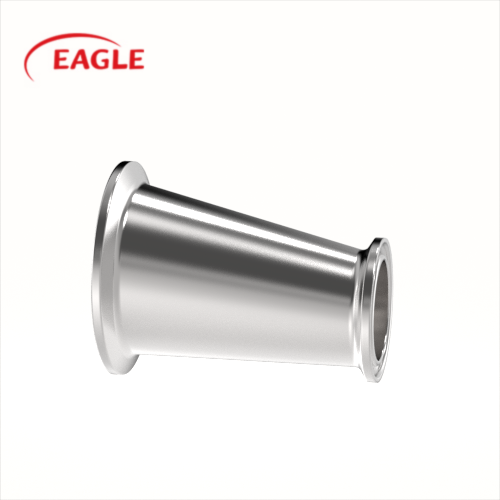

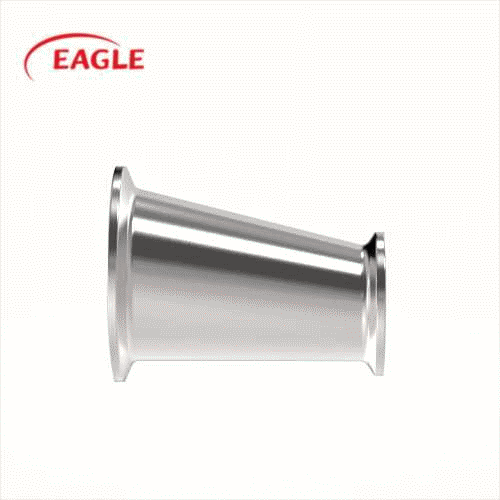

Tri-Clamp Eccentric Reducer is available in both 304 & 316L stainless steel alloys. And clamp ends join separate tube lines of different sizes. A clamp and gasket is required for a complete connection to complete a leak-resistant solution.
Moreover, Hygienic Eccentric reducer boasts exceptional corrosion resistance. Manufactured in strict 3A Standards.

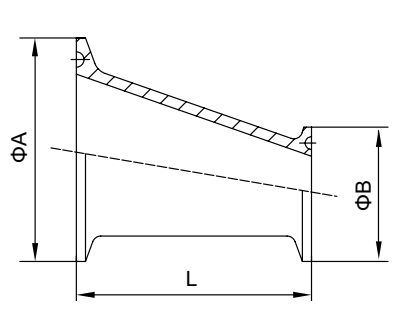

Size |
A |
B |
L |
|||
|
inch |
mm |
inch |
mm |
inch |
mm |
1.5"×1.0" |
1.988 |
50.5 |
1.988 |
50.5 |
3.000 |
76.2 |
2.0"×1.0" |
2.520 |
64.0 |
1.988 |
50.5 |
5.000 |
127.0 |
2.0"×1.5" |
2.520 |
64.0 |
1.988 |
50.5 |
3.000 |
76.2 |
2.5"×1.0" |
3.051 |
77.5 |
1.988 |
50.5 |
7.000 |
177.8 |
2.5"×1.5" |
3.051 |
77.5 |
1.988 |
50.5 |
5.000 |
127.0 |
2.5"×2.0" |
3.051 |
77.5 |
2.520 |
64.0 |
3.000 |
76.2 |
3.0"×1.0" |
3.583 |
91.0 |
1.988 |
50.5 |
9.000 |
228.6 |
3.0"×1.5" |
3.583 |
91.0 |
1.988 |
50.5 |
7.000 |
177.8 |
3.0"×2.0" |
3.583 |
91.0 |
2.520 |
64.0 |
5.000 |
127.0 |
3.0"×2.5" |
3.583 |
91.0 |
3.051 |
77.5 |
3.000 |
76.2 |
4.0"×1.5" |
4.685 |
119.0 |
1.988 |
50.5 |
11.125 |
282.5 |
4.0"×2.0" |
4.685 |
119.0 |
2.520 |
64.0 |
9.125 |
231.7 |
4.0"×2.5" |
4.685 |
119.0 |
3.051 |
77.5 |
7.125 |
180.9 |
4.0"×3.0" |
4.685 |
119.0 |
3.583 |
91.0 |
5.125 |
130.1 |
