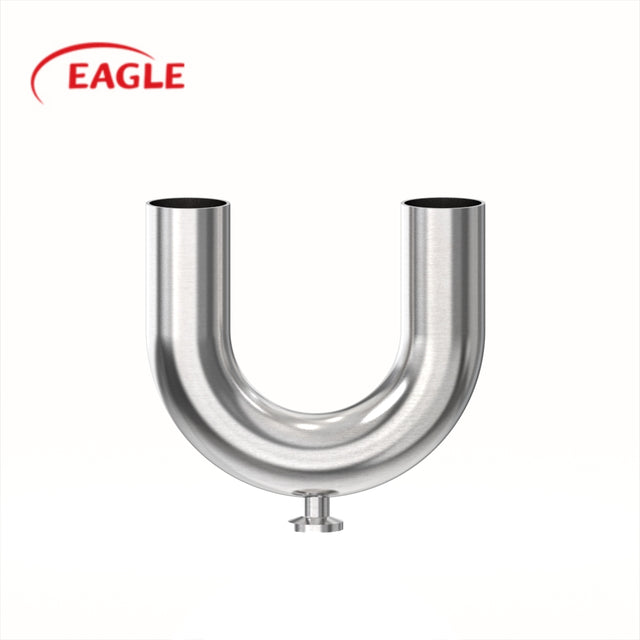

EAGLE ™ BPE DT-24 180° Bottom Outlet Clamp Use Point
Free shipping
On all orders over $199
Special offers
Regular sales and discounts
Easy returns
Hassle free returns policy
Chat facility
Talk to a real person
BPE use-points are available in 316L stainless steel alloy with either 20Ra or 15Ra Surface Finish. This product is 3A certified for sanitary-grade processing within the pharmaceutical industry.
ASME Certified, Bioprocessing Equipment (BPE). All products come stamped with heat lot number and associated Material Test Reports (MTRs).

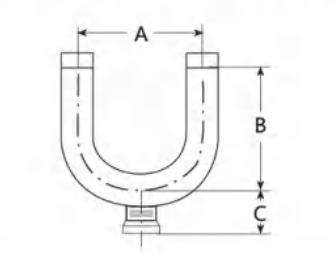

Size |
Dimensions |
|||||
|
A in. |
A mm |
B in. |
B mm |
C in. |
C mm |
3/4 × 1/2 |
4.500 |
114.3 |
3.000 |
76.2 |
1.875 |
47.6 |
3/4 × 3/4 |
4.500 |
114.3 |
3.000 |
76.2 |
1.875 |
47.6 |
1 × 1/2 |
3.000 |
76.2 |
3.000 |
76.2 |
2.062 |
52.4 |
11/2 × 1/2 |
4.500 |
114.3 |
4.500 |
114.3 |
2.312 |
58.7 |
2 × 1/2 |
6.000 |
152.4 |
5.000 |
127.0 |
2.562 |
65.1 |
21/2 × 1/2 |
7.500 |
190.5 |
5.750 |
146.1 |
2.812 |
71.4 |
3 × 1/2 |
9.000 |
228.6 |
6.500 |
165.1 |
3.062 |
77.8 |
4 × 1/2 |
12.000 |
304.8 |
8.500 |
215.9 |
3.562 |
90.5 |
About Egle
ASME BPE range includes a comprehensive selection of tubes and fittings of varying dimensions and executions all compliant with ASME BPE standards. Made for safe and easy installation, its high quality and good weldability meet the standards of biopharmaceutical industries.
BPE use-points are available in 316L stainless steel alloy with either 20Ra or 15Ra Surface Finish. This product is 3A certified for sanitary-grade processing within the pharmaceutical industry.
ASME Certified, Bioprocessing Equipment (BPE). All products come stamped with heat lot number and associated Material Test Reports (MTRs).
