EAGLE™ 3A 14WMP Tri-Clamp Short Weld Ferrule
From
$4.00
Unit price
/
Unavailable
EAGLE™ 3A 14WMP Tri-Clamp Short Weld Ferrule
Short weld clamp ferrules are fitted into process lines with both tri-clamp connection and butt welding. The butt welding end is shorter than our long weld version. Stainless steel design is offered in both 304 and 316L alloy options. Sizes for this product range from 1/2 inch all the way up to 12 inches. For joining clamp fittings to welded ends. Orbital weld is recommended to ensure proper connectivity, tri-clamp connections including gaskets and clamps are required to finish installation of this fitting.
3-A Sanitary Standards Inc. certifies products meet FDA and USDA regulations to prevent contamination in food, beverage, dairy, and pharmaceutical manufacturing environments.
|

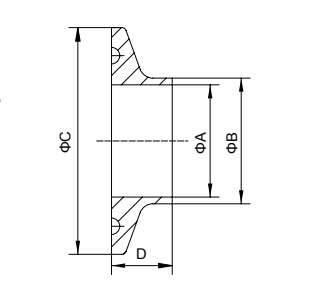

Size |
A |
B |
C |
D |
||||
|
|
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
|
0.5" |
0.370 |
9.4 |
0.500 |
12.7 |
0.992 |
25.2 |
0.500 |
12.7 |
|
0.75" |
0.620 |
15.75 |
0.750 |
19.05 |
0.992 |
25.2 |
0.500 |
12.7 |
|
1" |
0.870 |
22.1 |
1.000 |
25.4 |
1.988 |
50.5 |
0.500 |
12.7 |
|
1.5" |
1.370 |
34.8 |
1.500 |
38.1 |
1.988 |
50.5 |
0.500 |
12.7 |
|
2" |
1.870 |
47.5 |
2.000 |
50.8 |
2.520 |
64.0 |
0.500 |
12.7 |
|
2.5" |
2.370 |
60.2 |
2.500 |
63.5 |
3.051 |
77.5 |
0.500 |
12.7 |
|
3" |
2.870 |
72.9 |
3.000 |
76.2 |
3.583 |
91.0 |
0.500 |
12.7 |
|
4" |
3.834 |
97.4 |
4.000 |
101.6 |
4.685 |
119.0 |
0.625 |
15.8 |
|
6" |
5.782 |
146.9 |
6.000 |
152.4 |
6.567 |
166.8 |
0.875 |
22.2 |
|
8" |
7.760 |
197.1 |
8.000 |
203.2 |
8.571 |
217.7 |
0.875 |
22.2 |
|
10" |
9.782 |
248.5 |
10.000 |
254.0 |
10.571 |
268.5 |
0.875 |
22.2 |
|
12" |
11.760 |
298.7 |
12.000 |
304.8 |
12.571 |
319.3 |
0.875 |
22.2 |
