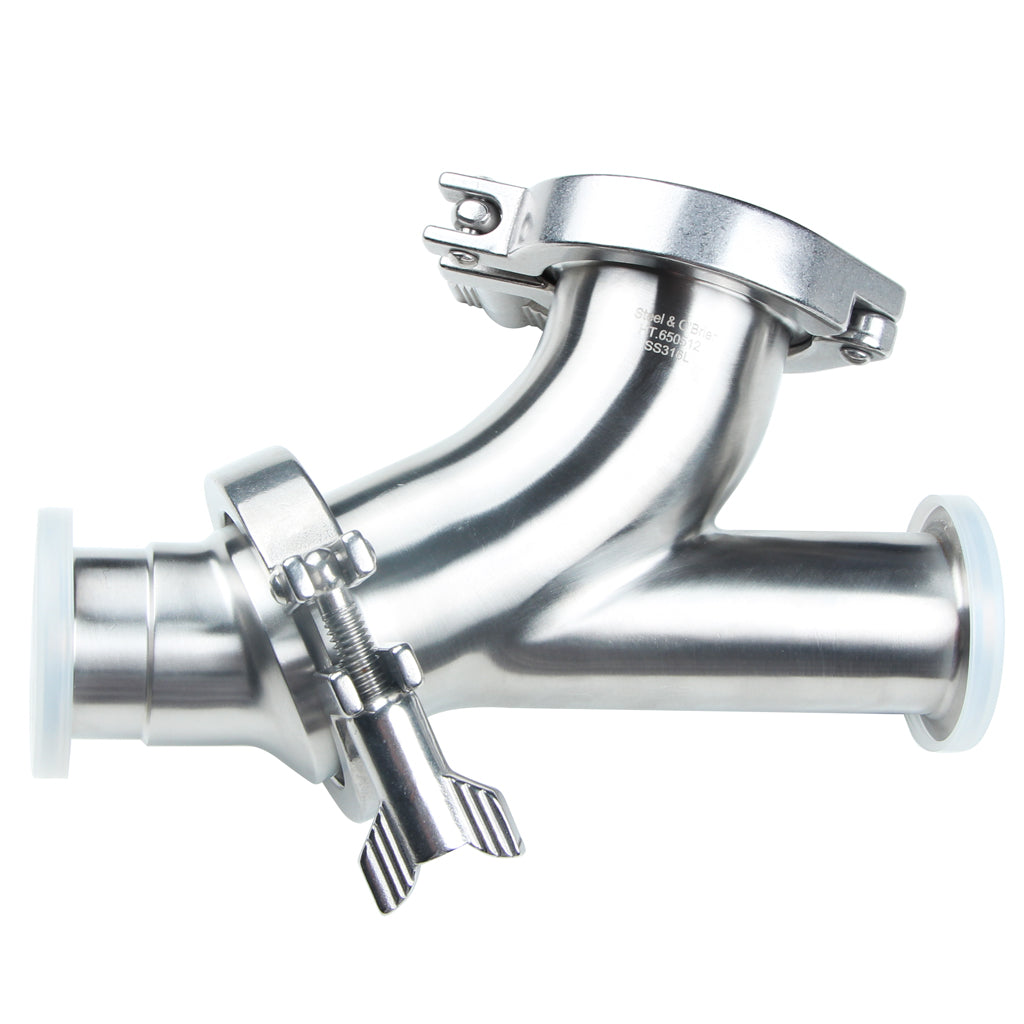

In fluid systems—whether water pipelines, industrial machinery, or HVAC systems—uncontrolled backflow is a silent threat. It can damage pumps, contaminate fluids, or even cause dangerous pressure spikes. Enter the check valve: a simple yet critical device designed to stop reverse flow. If you’ve ever wondered, “Why do I need a check valve?” or “How do I choose the right size for my system?” this guide has you covered.
We’ll break down the core purpose of check valves, how they work, and most importantly, how to select the right size and type for your application. We’ll also touch on why Eagle, a trusted name in fluid control, is a go-to choice for reliable check valves—without overshadowing the practical insights you need.
Core Purpose of a Check Valve: Preventing Reverse Flow
At its simplest, a check valve’s primary job is to allow fluid (liquid or gas) to flow in one direction only—automatically blocking reverse flow. This single-direction control solves two key problems:
- Protecting equipment: Backflow can damage pumps, compressors, or sensitive instruments by forcing them to work against the flow (e.g., a pump shutting off suddenly, causing water to rush back and stall the motor).
- Preventing contamination: In systems like wastewater treatment or chemical processing, reverse flow could mix clean and dirty fluids (e.g., sewage backing up into a potable water line).
Without a check valve, these issues can lead to costly repairs, downtime, or safety hazards.
How Check Valves Work: Automatic, No-Power Operation
Check valves are “self-actuating”—they don’t require external power (like electricity or manual operation) to function. Here’s the basic process:
- Forward flow: When fluid moves in the desired direction (e.g., from pump to pipeline), its pressure pushes the valve’s internal mechanism (a disc, ball, or flap) open.
- Reverse flow: If pressure drops or reverses (e.g., the pump stops), the internal mechanism closes—sealing the valve and blocking backflow.
This simplicity makes check valves reliable for critical applications where power outages or human error could cause failure.
Check Valve Types: Which One Fits Your System?
Check valves come in several designs, each tailored to specific flow conditions, pipe sizes, and pressure ranges. Here’s a breakdown:
1. Swing (Lift) Check Valves
- Design: A hinged disc swings open with forward flow and closes by gravity or reverse pressure.
- Best for: Large-diameter pipelines (2”–24”) and low-velocity flows (e.g., water distribution systems, irrigation).
- Pros: Low pressure drop, easy maintenance.
- Cons: May slam shut (causing water hammer) in high-velocity systems.
2. Ball Check Valves
- Design: A spherical ball is pushed off its seat by forward flow; reverse flow pushes it back to seal.
- Best for: Small to medium pipes (½”–6”) and viscous fluids (e.g., oil, sludge).
- Pros: Compact, resistant to clogging in dirty fluids.
- Cons: Higher pressure drop than swing valves.
3. Spring-Loaded Check Valves
- Design: A spring assists the closing mechanism, ensuring rapid shutoff even at low flow rates.
- Best for: High-pressure systems (e.g., hydraulics, compressed air) or applications needing tight sealing (e.g., medical gas lines).
- Pros: Prevents water hammer, works in vertical or horizontal pipes.
- Cons: More complex design, higher cost.
4. Butterfly Check Valves
- Design: A lightweight disc pivots on a central axis to open/close.
- Best for: Large-diameter, low-pressure systems (e.g., HVAC chilled water loops, stormwater drainage).
- Pros: Lightweight, low profile.
- Cons: Less effective for high-pressure or high-velocity flows.
Check Valve Sizing: How to Choose the Right Size for Your Application
Selecting the wrong check valve size is a common mistake that leads to inefficiency or failure. Here’s how to get it right:
Key Factors for Sizing
- Pipe diameter: The valve’s size (in inches or DN) should match your pipeline’s inner diameter. Mismatched sizes cause turbulence (e.g., a 2” valve in a 3” pipe creates dead zones where debris collects).
- Flow rate (GPM or m³/h): Use your system’s maximum flow rate to calculate the valve’s required Cv (flow coefficient). A valve too small will restrict flow (high pressure drop); too large will fail to open fully (allowing backflow).
- Pressure differential: The valve must open at your system’s minimum forward pressure. For example, a spring-loaded valve with a 1 PSI cracking pressure won’t open in a system with only 0.5 PSI of forward pressure.
Size Recommendations by Application
- Residential plumbing (sinks, toilets): ½”–1” swing or ball check valves (low flow, low pressure).
- Industrial pumps (water, chemicals): 2”–12” swing or spring-loaded valves (high flow, moderate pressure).
- HVAC systems (chilled/hot water): 1”–6” butterfly or spring-loaded valves (balanced flow, low pressure drop).
- High-pressure hydraulics (machinery): ¼”–2” spring-loaded or ball check valves (tight sealing, rapid response).
Why Eagle Check Valves Stand Out
At Eagle, we design check valves with real-world reliability in mind:
- Precision sizing: Eagle offers check valves in sizes from ¼” to 24”, with detailed Cv and pressure ratings to match your system’s specs.
- Material durability: Choose from brass (corrosion-resistant for water), stainless steel (chemical/acid safe), or PVC (lightweight for irrigation)—ensuring long life in harsh environments.
- Application-specific designs: Whether you need a swing valve for a municipal water line or a spring-loaded valve for a hydraulic press, Eagle’s catalog covers the full range of common use cases.
We focus on simplifying your decision: no overcomplicated options, just valves that work as promised.
Conclusion
The purpose of a check valve is clear: protect your system from reverse flow, contamination, and equipment damage. By understanding the types (swing, ball, spring-loaded) and sizing factors (pipe diameter, flow rate, pressure), you can select the right valve for your application.
Whether you’re maintaining a residential plumbing system or optimizing an industrial process, a properly sized check valve is non-negotiable. For solutions that balance performance and durability, Eagle’s check valves are engineered to meet the demands of your fluid system—so you can focus on what matters most.
Need help selecting the perfect check valve size or type? Eagle’s technical team offers free sizing consultations—reach out to ensure your system stays protected.
