In fluid control systems—whether in oil refineries, water treatment plants, or HVAC systems—the question of “control valve position” is critical. A control valve’s resting state during normal operation, startup, or failure directly impacts safety, energy efficiency, and equipment longevity. While there’s no one-size-fits-all answer, the golden rule is: “Control valves should always be in a position that aligns with system safety and process stability.” In this guide, we’ll break down the key scenarios that dictate valve position, explain why Eagle control valves are engineered for reliable positioning, and share best practices to avoid costly mistakes.
The Critical Role of Control Valve Position
A control valve regulates fluid flow, pressure, or temperature by adjusting its internal opening (e.g., a globe valve’s plug or a butterfly valve’s disc). Its “position” refers to this opening percentage—from 0% (fully closed) to 100% (fully open). The right position ensures:
- Safety: Preventing overpressure, backflow, or toxic fluid leaks during emergencies.
- Efficiency: Minimizing energy waste (e.g., a partially closed valve in a pump system reduces unnecessary flow and power use).
- Process Stability: Maintaining setpoints (e.g., temperature in a chemical reactor) by adjusting position in response to sensor feedback.
Key Scenarios: What Position Should Your Control Valve Be In?
1. Normal Operation: Modulating Position (30–70%)
During steady-state operation, control valves rarely stay fully open or closed. Instead, they modulate between 30–70% opening to balance flow and pressure. For example:
- In a power plant’s steam turbine system, an Eagle globe control valve adjusts to 45% opening to maintain turbine speed as demand fluctuates.
- In a building’s HVAC system, a butterfly control valve modulates between 30–60% to keep room temperature at 22°C, avoiding rapid cycling of the heater.
Why 30–70%? Fully open/closed positions limit responsiveness—if a sudden demand spike occurs, a valve stuck at 100% can’t increase flow further, causing pressure drops.
2. Startup/Shutdown: Cracking Position (5–10%)
During system startup, control valves should start at a cracking position (slightly open, 5–10%) to:
- Prevent “water hammer” (sudden pressure surges from full flow hitting stagnant fluid).
- Allow gradual heating/cooling of pipes (critical in high-temperature systems like oil refineries).
Example: An Eagle pneumatic control valve in a brewery starts at 8% opening when the wort heating system boots up, slowly ramping to 50% as the kettle reaches 70°C.

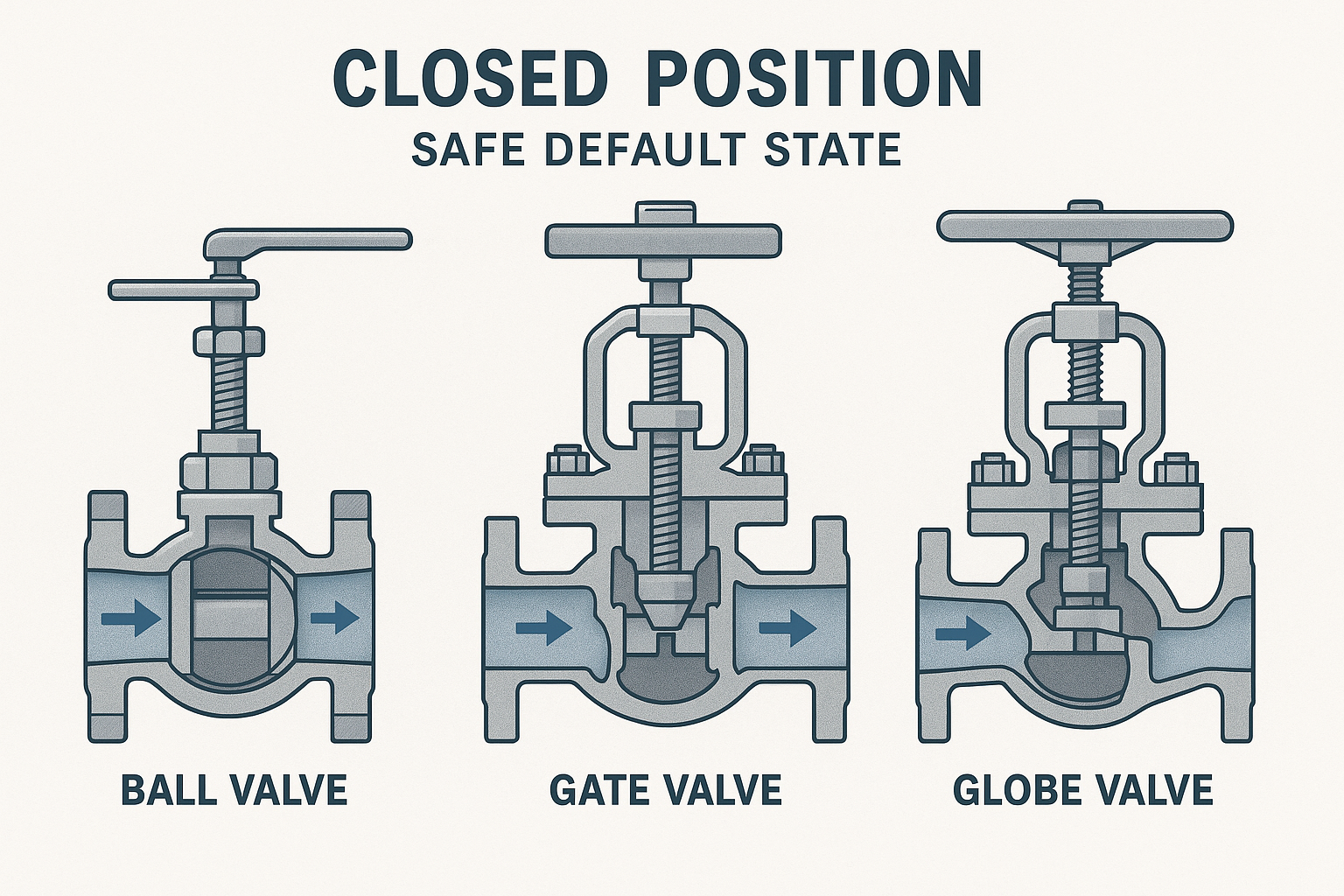

3. Failure/Safety Mode: “Fail-Safe” Position
The most critical scenario: If power, air, or signal is lost, the valve must default to a fail-safe position to prevent disasters. This is determined by system risk:
Fail-Closed (FC): For Toxic/Flammable Fluids
Valves handling hazardous materials (e.g., natural gas, chlorine) should fail closed. A spring-return actuator pushes the valve shut, blocking flow.
- Use case: An Eagle API 6D control valve in a gas pipeline fails closed if the pneumatic signal is lost, preventing explosions.
Fail-Open (FO): For Essential Services
Valves in systems where flow interruption risks harm (e.g., hospital oxygen lines, fire sprinklers) should fail open. A spring pulls the valve to 100% opening.
- Use case: A water treatment plant’s Eagle butterfly valve fails open during a power outage, ensuring continued flow to residential areas.
Fail-Last (FL): For Non-Critical Systems
In low-risk systems (e.g., irrigation), valves may stay in their last position to avoid disrupting ongoing processes.
Common Mistakes: Why Incorrect Positioning Costs You
Mistake 1: Running Valves at 100% Open/Closed
Over time, this causes seat erosion (from high velocity at 100% open) or stem binding (from constant pressure at 0% closed). Eagle’s trim designs (e.g., anti-cavitation discs) mitigate this, but proper modulation is still key.
Mistake 2: Ignoring Fail-Safe Calibration
A valve set to fail closed but calibrated incorrectly may stay open during a power outage. Regular testing (per IEC 61511 standards) is critical—Eagle valves include calibration ports for easy maintenance.
Mistake 3: Using the Wrong Actuator
Pneumatic actuators are faster for fail-safe responses than electric ones. For example, an Eagle pneumatic valve closes in 0.5 seconds, vs. 2 seconds for an electric model—critical for toxic fluid systems.
Why Eagle Control Valves Excel at Position Control
Eagle’s control valves are engineered to maintain precise positioning in all scenarios, thanks to:
1. Robust Actuators with Spring-Return Technology
Eagle’s pneumatic and electric actuators ensure reliable fail-safe operation. For example, their ES Series spring-return actuators provide 10,000+ cycles without spring fatigue, guaranteeing fail-closed/fail-open consistency.
2. Precision Trim Design
Eagle’s cages and plugs are machined to tight tolerances (±0.01mm), allowing stable modulation between 5–95% opening. This is critical for applications like pharmaceutical batch mixing, where flow rates must be exact.
3. Material Options for Every Industry
- Stainless Steel (316L): For corrosive fluids (chemical processing) or sanitary applications (food/beverage).
- Carbon Steel: For high-pressure oil/gas pipelines.
- PTFE Liners: For abrasive slurries (mining, wastewater).
4. Global Certifications
Eagle valves meet ASME B16.34, API 6D, and CE/PED standards, ensuring compliance in 100+ countries. Their sanitary control valves are 3A/FDA-certified, making them ideal for dairy and biotech.
FAQs: Control Valve Positioning
Q: How do I determine my valve’s fail-safe position?
A: Conduct a risk assessment: If flow loss causes harm (e.g., hospital oxygen), fail-open. If flow continuation causes harm (e.g., gas), fail-closed.
Q: Can I adjust the fail-safe position of an Eagle valve?
A: Yes—Eagle actuators are field-reversible (e.g., switch from fail-closed to fail-open by flipping the spring assembly).
Q: Why does my valve drift from its set position?
A: Likely due to actuator wear or sensor calibration issues. Eagle’s smart valves include position feedback sensors to alert operators to drift.
Conclusion: Positioning = Performance + Safety
The “right” control valve position depends on operation phase (normal/startup/failure) and system risk, but the overarching goal is always safety and efficiency. By choosing a valve with reliable actuation (like Eagle’s spring-return models) and adhering to best practices—modulating in 30–70% range, calibrating fail-safe modes—you’ll avoid downtime, leaks, and compliance issues.
