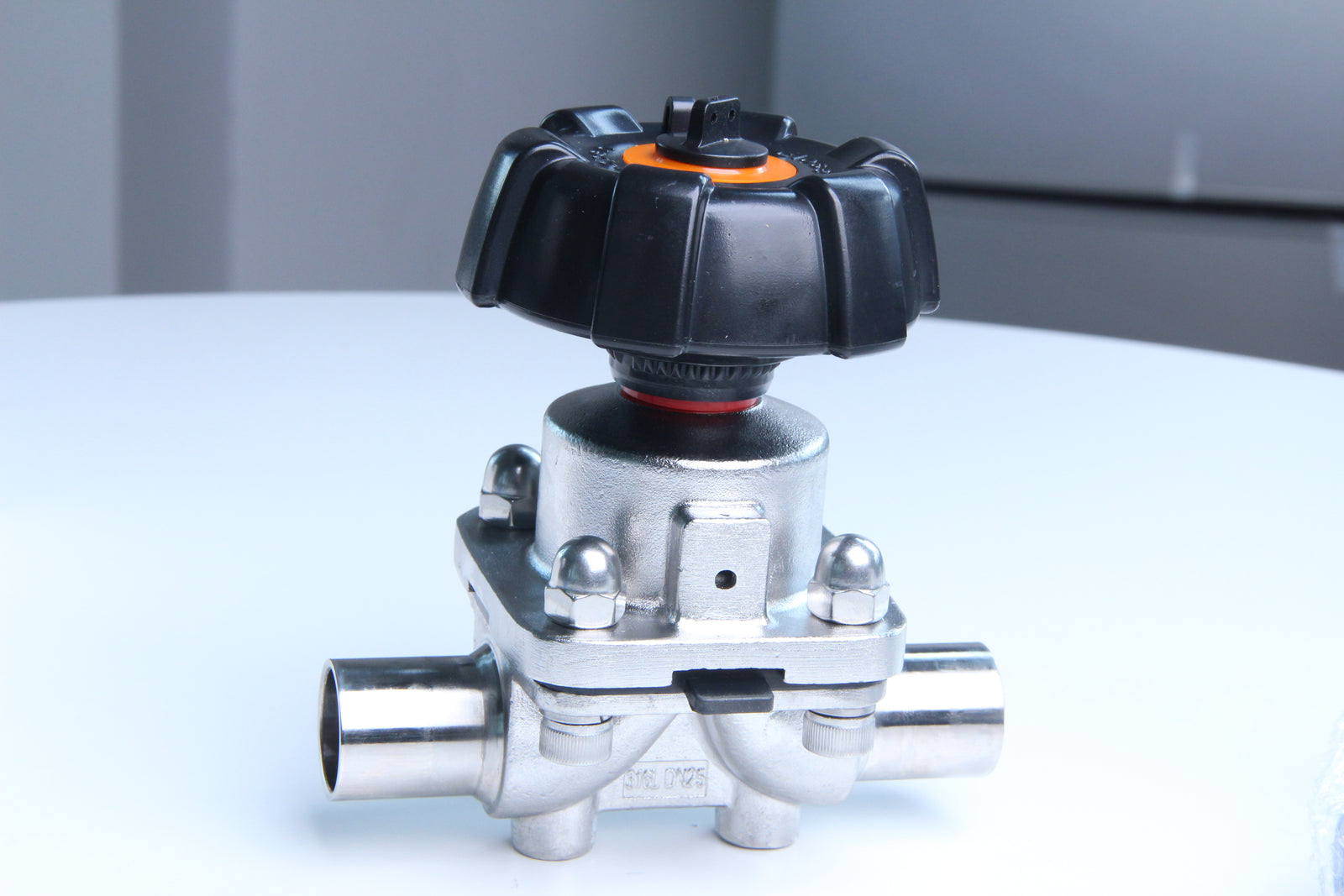

Diaphragm valves are widely used in various industrial and manufacturing processes due to their unique design and superior performance. They have become indispensable fluid control devices in many industries. This article will introduce the structural features, working principles, application scenarios, and usage considerations of diaphragm valves, helping users better understand and use them.
1. Structure and Working Principle of Diaphragm Valves
The core component of a diaphragm valve is a flexible diaphragm, typically made of rubber, PTFE (polytetrafluoroethylene), or other synthetic materials. The diaphragm divides the valve body into two isolated chambers: one in contact with the fluid and the other used to drive the diaphragm’s up and down movement. When the valve stem pushes or pulls the diaphragm, the diaphragm either contacts or separates from the valve seat, thereby opening or closing the flow of fluid.
This design provides several unique advantages:
- Leak-proof Design: The diaphragm isolates the operating mechanism from the fluid, significantly reducing the possibility of leaks since the fluid does not come into contact with the valve stem or other external components.
- Suitable for Corrosive Media: The diaphragm and valve body materials can be selected based on the chemical properties of the media, making diaphragm valves ideal for handling corrosive, viscous, or particulate-laden fluids.
- Easy to Clean: The internal structure of a diaphragm valve is simple, with no dead spaces, making it easy to clean and sanitize, which meets the requirements of industries with high hygiene standards, such as food and pharmaceuticals.
2. Main Application Scenarios for Diaphragm Valves
Due to their unique design and functionality, diaphragm valves are widely used across several industries. Here are some of the main application scenarios:
-
Chemical Industry: Diaphragm valves perform excellently when handling corrosive chemicals. They can effectively resist the erosion of strong corrosive media like acids and alkalis while avoiding the risk of leaks and contamination.
-
Food and Beverage Industry: Diaphragm valves are often used in food processing and beverage production due to their hygienic design, ensuring the cleanliness and contamination-free nature of fluid systems. The diaphragm material can be chosen according to food safety standards to ensure the safety of the production process.
-
Pharmaceutical Industry: In pharmaceutical production, diaphragm valves are used to control high-purity liquids and gases, especially in sterile environments. The valve’s dead space-free design and ease of cleaning ensure the hygiene and quality of the pharmaceutical production process.
-
Water Treatment Systems: Diaphragm valves are also widely used in water treatment and wastewater treatment systems, especially when dealing with high-viscosity or particulate-laden water flows, where their performance is particularly outstanding.
3. Usage Considerations
When using diaphragm valves, there are several key points to ensure optimal performance and longevity:
-
Correct Selection of Diaphragm Material: Different fluids require different diaphragm materials. When purchasing a diaphragm valve, it's important to choose the appropriate diaphragm material based on the actual working conditions to ensure its chemical resistance and durability.
-
Regular Inspection and Replacement of the Diaphragm: The diaphragm is the core component of a diaphragm valve and may experience material fatigue or damage over long-term use. Regularly inspect the condition of the diaphragm and replace it as necessary to prevent leaks or failure.
-
Avoid Overpressure Operation: Diaphragm valves are typically designed for medium to low-pressure systems. Excessive pressure may damage the diaphragm or deform the valve body. Ensure that operating conditions are within the valve's design pressure range to extend its lifespan.
-
Proper Installation and Maintenance: Correct installation and regular maintenance are key to ensuring the normal operation of a diaphragm valve. Pay attention to the valve’s direction and position during installation, and regularly clean and check the valve's sealing performance.
Conclusion
With their leak-proof design, strong corrosion resistance, and ease of cleaning, diaphragm valves play a vital role in the chemical, food and pharmaceutical, and water treatment industries. By selecting, using, and maintaining them correctly, diaphragm valves can maintain stable performance in various harsh environments, ensuring the safety and efficiency of production processes.
